A 6 volt battery is guaranteed to deliver 15mA for 60 hours. During the 60 hours...

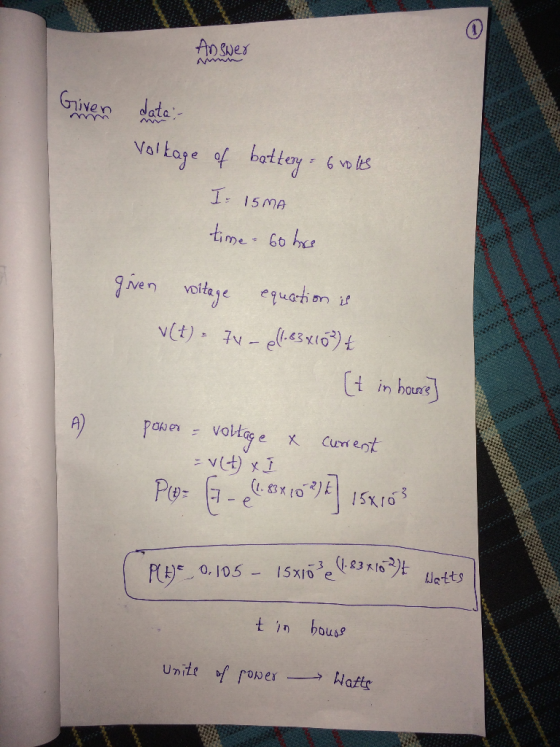

A 6 volt battery is guaranteed to deliver 15mA for 60 hours. During the 60 hours the voltage will follow the equation V(t) = 7v - e(1.83 x 10^-2)t (t units are hours)
A ) what is the power as a function of time. what are its units?

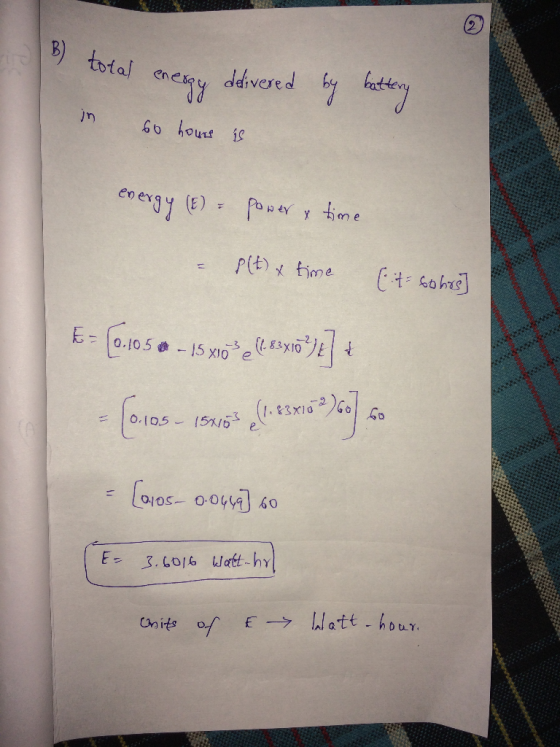

B) what is he total energy delivered by the battery in 60 hours? what are its units?
Homework Answers
Add Answer to:
A 6 volt battery is guaranteed to deliver 15mA for 60 hours.
During the 60 hours...
When the Tesla S is plugged in at home, it is connected to a 220 volt...
When the Tesla S is plugged in at home, it is connected to a 220 volt (V) 50 Amp (I) charger. a) Given this equation P = V x I (Power = Volt x Amp), what is the electric power (in kW) delivered to the Tesla Battery once plugged in? b) Accounting for a 10% efficiency loss (heat, cable resistance, battery efficiency), How many hours are needed for a full charge? **In a previous problem it was mentioned that Tesla...
battery that can deliver a cu (a) What is the total energy, in kilowatt-hours, stored in...
battery that can deliver a cu (a) What is the total energy, in kilowatt-hours, stored in a 9-V battery rated at 47 A h? Batteries are rated in terms of ampere-hours (A h). For example, a rrent of 3.0 A for 5.0 h is rated at 15 A·h. kWh (b) At $0.19 per kilowatt-hour, what is the value of the electricity that can be produced by this battery?
(1 point) An electrical circuit switches instantaneously from a 2 volt battery to a 15 volt...
(1 point) An electrical circuit switches instantaneously from a 2 volt battery to a 15 volt battery 5 seconds after being turned on. Sketch on a sheet of paper a graph the battery voltage against time. Then fill in the formulas below for the function represented by your graph. For t < , V(t) = , V(t) = For t > At what point or points is your function discontinuous? t = (Give your answer as a comma-separated list, or...
1. A capacitor C has been charged up to potential Vo. At timet0, it is connected...
1. A capacitor C has been charged up to potential Vo. At timet0, it is connected to a resistor R, and begins to discharge [see figure (a) below] +0 (a) i Determine the charge Q(t) on the capacitor as a function of time. ii. What is the current I(t) through the resistor? iii. Sketch Q(t) and I(t) as a function oft iv. Wha v. By integrating P VI, where P is the power delivered to the circuit and V the...
Guaranteed thumbs up if all is complete. Thanks in advance! 28. An RC circuit is connected...
Guaranteed thumbs up if all is complete. Thanks in advance!
28. An RC circuit is connected to a 12.0 V battery at t=0 s and the capacitor voltage is monitored as a function of time. This cap is charging! a) Att = 0.147 s, the capacitor voltage is 20.0% of the battery voltage. What is the RC time constant? b) When will the capacitor be charged to 99.0% of the battery voltage? c) If the cap has value 2.0 mF,...
I need all the answers please. Thanks If a 15-V battery delivers 72.000 J in 6...
I need all the answers please. Thanks
If a 15-V battery delivers 72.000 J in 6 s, find (a) the amount of charge delivered and (b) the current produced. (a)TT4.8 (b)To.8 ori We were unable to transcribe this imageChapter 1, Problem 1.11 The charge entering the positive terminal of an element is given by the expression qt)20e5.00t mC. The power delivered to the element is p(t)-9.2e8t w. Compute the current in the element as a function of time, the voltage...
Homework 1 A rechargeable flashlight battery is capable of delivering 105 mA for about 15 h....
Homework 1 A rechargeable flashlight battery is capable of delivering 105 mA for about 15 h. How much charge can it release at that rate? If its terminals voltage is 1.1 V, how much energy can the battery deliver? I. 2. The current entering the positive terminal of a device is )- A and the voltage across the device is v)-5dildr V (a) Find the charge delivered to the device between t-0 and (b) Calculate the power absorbed. (c) Determine...
Question #5: (10 marks) Design a standalone PV system with battery storage to provide energy fora...
Question #5: (10 marks) Design a standalone PV system with battery storage to provide energy fora 13.8 ac appliance Refrigerato cabin with the following appliances 150 100 65 TV, active mode 24 TV,standby mode Satellite, active mode Satellite, standby Microwave 21 17 16 21 0.1 Total (ac power) de appliance 60 10 de air conditioner 10 Total (depower) Total demand wh In your design, determine the type of the inverter, the battery and PV module from the list below and...
suppose that the voltage (12V) varies linearly from 6 to 18 V as t varies from...
suppose that the voltage (12V) varies linearly from 6 to 18 V as t varies from 0 to 10 min. If i=2A during this time, find (a) the total energy supplied and (b) the total charge delivered to the battery.
1. When running on its 11.4 V battery, a laptop computer uses 8.3 W. The computer...
1. When running on its 11.4 V battery, a laptop computer uses 8.3 W. The computer can run on battery power for 5.0 h before the battery is depleted. A) What is the current delivered by the battery to the computer? B)How much energy, in joules, is this battery capable of supplying? C)How high off the ground could a 75 kg person be raised using the energy from this battery? 2. An electric eel develops a potential difference of 480...
battery that can deliver a cu (a) What is the total energy, in kilowatt-hours, stored in a 9-V battery rated at 47 A h? Batteries are rated in terms of ampere-hours (A h). For example, a rrent of 3.0 A for 5.0 h is rated at 15 A·h. kWh (b) At $0.19 per kilowatt-hour, what is the value of the electricity that can be produced by this battery?
(1 point) An electrical circuit switches instantaneously from a 2 volt battery to a 15 volt battery 5 seconds after being turned on. Sketch on a sheet of paper a graph the battery voltage against time. Then fill in the formulas below for the function represented by your graph. For t < , V(t) = , V(t) = For t > At what point or points is your function discontinuous? t = (Give your answer as a comma-separated list, or...
1. A capacitor C has been charged up to potential Vo. At timet0, it is connected to a resistor R, and begins to discharge [see figure (a) below] +0 (a) i Determine the charge Q(t) on the capacitor as a function of time. ii. What is the current I(t) through the resistor? iii. Sketch Q(t) and I(t) as a function oft iv. Wha v. By integrating P VI, where P is the power delivered to the circuit and V the...
Guaranteed thumbs up if all is complete. Thanks in advance!
28. An RC circuit is connected to a 12.0 V battery at t=0 s and the capacitor voltage is monitored as a function of time. This cap is charging! a) Att = 0.147 s, the capacitor voltage is 20.0% of the battery voltage. What is the RC time constant? b) When will the capacitor be charged to 99.0% of the battery voltage? c) If the cap has value 2.0 mF,...
I need all the answers please. Thanks
If a 15-V battery delivers 72.000 J in 6 s, find (a) the amount of charge delivered and (b) the current produced. (a)TT4.8 (b)To.8 ori We were unable to transcribe this imageChapter 1, Problem 1.11 The charge entering the positive terminal of an element is given by the expression qt)20e5.00t mC. The power delivered to the element is p(t)-9.2e8t w. Compute the current in the element as a function of time, the voltage...
Homework 1 A rechargeable flashlight battery is capable of delivering 105 mA for about 15 h. How much charge can it release at that rate? If its terminals voltage is 1.1 V, how much energy can the battery deliver? I. 2. The current entering the positive terminal of a device is )- A and the voltage across the device is v)-5dildr V (a) Find the charge delivered to the device between t-0 and (b) Calculate the power absorbed. (c) Determine...
Question #5: (10 marks) Design a standalone PV system with battery storage to provide energy fora 13.8 ac appliance Refrigerato cabin with the following appliances 150 100 65 TV, active mode 24 TV,standby mode Satellite, active mode Satellite, standby Microwave 21 17 16 21 0.1 Total (ac power) de appliance 60 10 de air conditioner 10 Total (depower) Total demand wh In your design, determine the type of the inverter, the battery and PV module from the list below and...
