An electron (m=9.11E-31 kg, q = -1.602E-19 C) is initially at rest in an electric field....

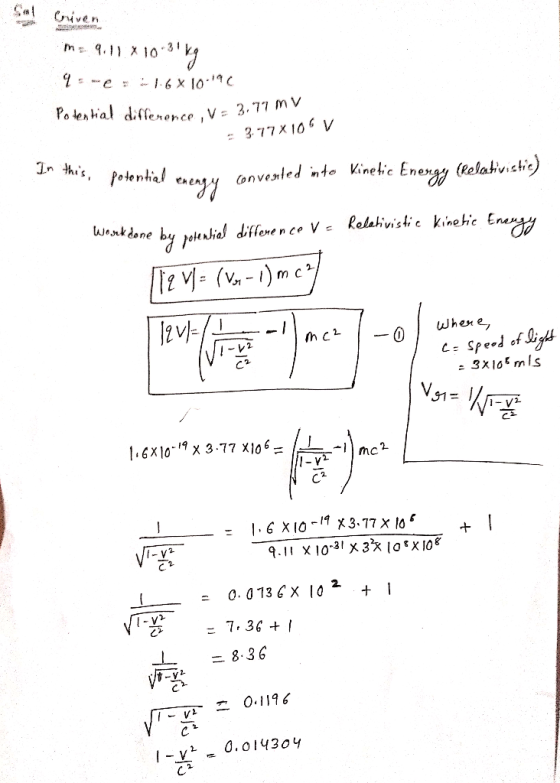

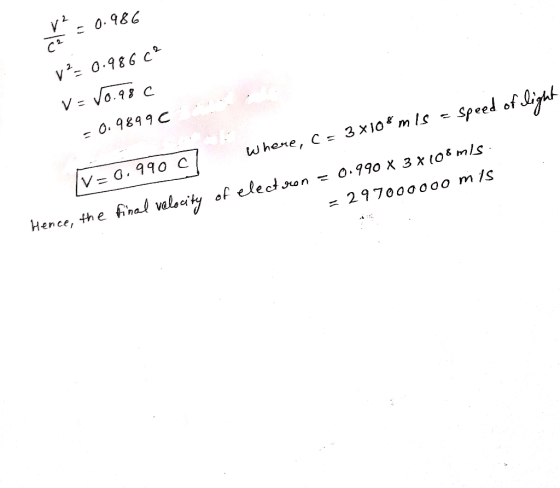

An electron (m=9.11E-31 kg, q = -1.602E-19 C) is initially at rest in an electric field. It is accelerated by that field and experience a potential difference of 3.77 MV. Calculate the final speed of the electron in m/s. Express your answer with 3 decimal points. Do not use scientific notation. Hint: the work done by a potential difference V on a charge q is qV.
Homework Answers
Add Answer to:
An electron (m=9.11E-31 kg, q = -1.602E-19 C) is initially at
rest in an electric field....
1. An electron (q = -1.6x10-19 C, m=9.11x10-31 kg) is placed in an electric field of...
1. An electron (q = -1.6x10-19 C, m=9.11x10-31 kg) is placed in an electric field of magnitude 3.52x104N/C which points in the positive z direction. Calculate the magnitude and direction of the acceleration of the electron. 2. An electron is initially moving in the +z direction, with a speed v=2.54x105 m/s at z=0. In the region between z=+1.50 cm and z=+2.50 cm, there is a uniform electric field of magnitude 4.10x104 N/C in the +x direction. Outside that region (z...
A particle of rest mass mo and charge q is accelerated from rest by a uniform (in the lab frame) electric field Ei. What are the velocity and position of the particle (as a function of time) a. in th...
A particle of rest mass mo and charge q is accelerated from rest by a uniform (in the lab frame) electric field Ei. What are the velocity and position of the particle (as a function of time) a. in the lab frame? b. in the rest frame of an observer moving with a velocity vok relative to the lab? c. (Optional) Plot the position and speed of an electron in a uniform field of magnitude 1 MV/m for the time...
An electron (mass m = 9.11 x 10-31 kg, charge e = 1.6 x 10-19 C)...
An electron (mass m = 9.11 x 10-31 kg, charge e = 1.6 x 10-19 C) are accelerated from rest through a potential difference V = 450 V and are then deflected by a magnetic field (B = 0.4 T) that is perpendicular to their velocity. The radius of the resulting electron trajectory is:
Shown in the figure below is an experiment with an electron (q = -1.602e-19 Coulombs, m...
Shown in the figure below is an experiment with an electron (q = -1.602e-19 Coulombs, m = 9.109e-31 kg) fired into a magnetic field. The magnetic field is of strength B = 1.2e-04 Tesla and is directed into the screen. The electron is fired with a velocity v = 3.75e+06 m/s as shown. Trajectory A Magnetic Field (into the screen) electron + Trajectory B + Which path is followed by the electron? Trajectory A Trajectory B What is the radius...
5. An electron carrying charge -9 (where q=1.602e-19 C) is moving along the x axis in...
5. An electron carrying charge -9 (where q=1.602e-19 C) is moving along the x axis in the +x direction with a velocity ū(x, y, z) = 5 x 107 cm/s. a. We want to make the electron to curve to the right and eventually go in a circle clockwise in the xy plane by applying a magnetic field. To achieve that, the magnetic field should exert a force on the electron that is perpendicular to its direction of motion. Which...
An electron is initially at rest in a uniform electric field having a strength of 1.8 x 106 V/m.
An electron is initially at rest in a uniform electric field having a strength of 1.8 x 106 V/m. It is then released and accelerated by the presence of the electric field. Part (a) What is the change in the electron's kinetic energy, in kiloelectron volts, if it travels over a distance of 0.275 m in this field? Part (b) Over how many kilometers would it have to be accelerated in the same electric field to increase its kinetic energy by 57.5...
An electron has a mass of 9.11×10^−31 kg. The charge on an electron is −1.60×10^−19 C...
An electron has a mass of 9.11×10^−31 kg. The charge on an electron is −1.60×10^−19 C . An electron is released from rest in a field that has a magnitude of 100 V/m = 100 N/C. What is the magnitude of the electron's acceleration, in m/s/s? Please provide your answer both in scientific notation and as a decimal.
A)An electron is accelerated by a constant electric field of 334.0 N/C. Find the magnitude of...
A)An electron is accelerated by a constant electric field of 334.0 N/C. Find the magnitude of the acceleration of the electron. The mass of the electron is 9.109 × 10−31 kg and the fundamental charge is 1.602 × 10−19 C Answer in units of m/s 2 B) Find the electron’s speed after 7.00 × 10−8 s, assuming it starts from rest. Answer in units of m/s.
Please solve and explain Shown below is an experiment with an electron (q = -1.602e-19 coulombs,...
Please solve and explain
Shown below is an experiment with an electron (q = -1.602e-19 coulombs, m= 9.109e-31 kg) fired into a magnetic field. The magnetic field is of the strenght B=1.19e-04 Tesla and is directed into the screen. The electron is fired with a velocity V=3.66e+06m/s as shown. trajectory a magnetic field Cinto the screen) electron v Trajectory B a) which path is followed by the electron? trajectory A or trajectory B? meters b) What is the radius of...
A proton of mass m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is accelerated from rest through a potential difference of 4000 V. What final velocity does it achieve? A proton of mass...
A proton of mass m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is accelerated from rest through a potential difference of 4000 V. What final velocity does it achieve?
A proton of mass m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is accelerated from rest through a potential difference of 4000 V. What final velocity does it achieve?
A particle of rest mass mo and charge q is accelerated from rest by a uniform (in the lab frame) electric field Ei. What are the velocity and position of the particle (as a function of time) a. in the lab frame? b. in the rest frame of an observer moving with a velocity vok relative to the lab? c. (Optional) Plot the position and speed of an electron in a uniform field of magnitude 1 MV/m for the time...
Shown in the figure below is an experiment with an electron (q = -1.602e-19 Coulombs, m = 9.109e-31 kg) fired into a magnetic field. The magnetic field is of strength B = 1.2e-04 Tesla and is directed into the screen. The electron is fired with a velocity v = 3.75e+06 m/s as shown. Trajectory A Magnetic Field (into the screen) electron + Trajectory B + Which path is followed by the electron? Trajectory A Trajectory B What is the radius...
5. An electron carrying charge -9 (where q=1.602e-19 C) is moving along the x axis in the +x direction with a velocity ū(x, y, z) = 5 x 107 cm/s. a. We want to make the electron to curve to the right and eventually go in a circle clockwise in the xy plane by applying a magnetic field. To achieve that, the magnetic field should exert a force on the electron that is perpendicular to its direction of motion. Which...
Please solve and explain
Shown below is an experiment with an electron (q = -1.602e-19 coulombs, m= 9.109e-31 kg) fired into a magnetic field. The magnetic field is of the strenght B=1.19e-04 Tesla and is directed into the screen. The electron is fired with a velocity V=3.66e+06m/s as shown. trajectory a magnetic field Cinto the screen) electron v Trajectory B a) which path is followed by the electron? trajectory A or trajectory B? meters b) What is the radius of...
A proton of mass m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is accelerated from rest through a potential difference of 4000 V. What final velocity does it achieve?
A proton of mass m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is accelerated from rest through a potential difference of 4000 V. What final velocity does it achieve?
