a) Perform these 7-bit, unsigned binary operations. Keeping only 7 bits for the result, indicate whether...

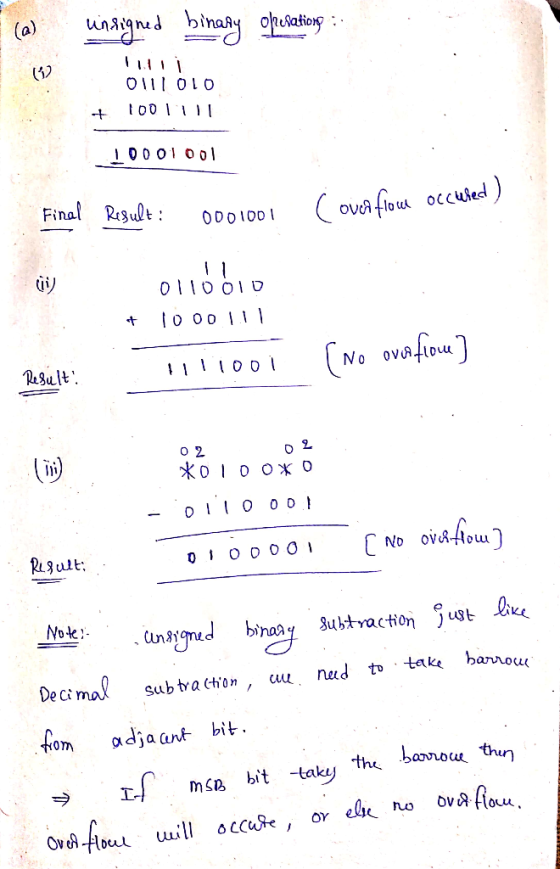

a) Perform these 7-bit, unsigned binary operations. Keeping only 7 bits for the result, indicate whether or not overflow occurred (i.e. whether the answer is correct or if there were not enough bits).
0111010 0110010 1010010
+1001111 +1000111 -0110001

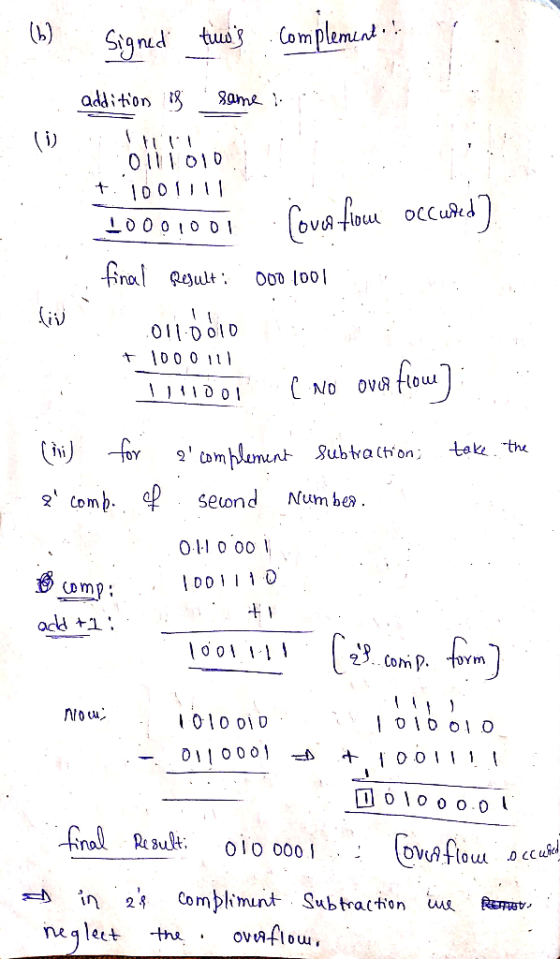

b) Perform these 7-bit, signed two’s complement binary operations. Keeping only 7 bits for the result, indicate whether or not overflow occurred.
0111010 0110010 1010010
+1001111 +1000111 -0110001
Homework Answers
Add Answer to:
