select a suitable underground cu, XLPE insulated cable to supply three phase , 400V , 100KW ,...

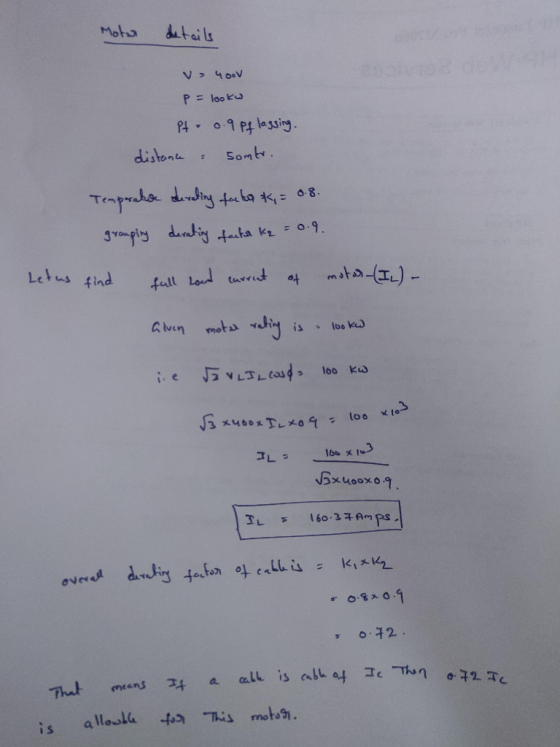

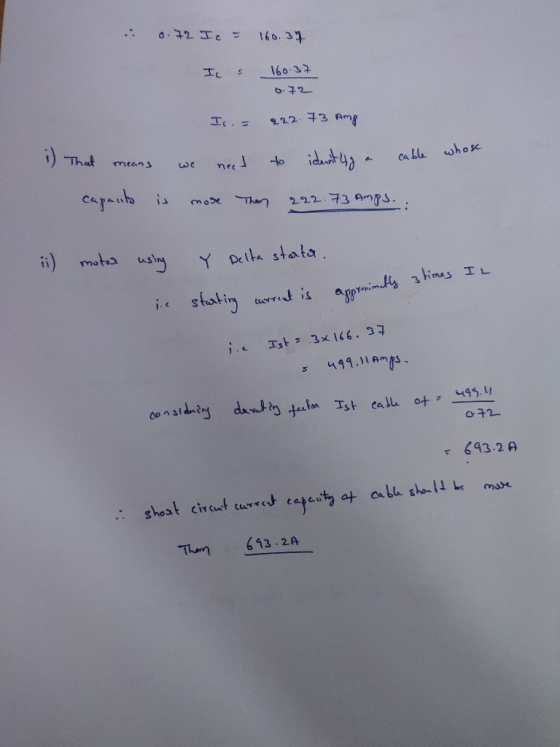

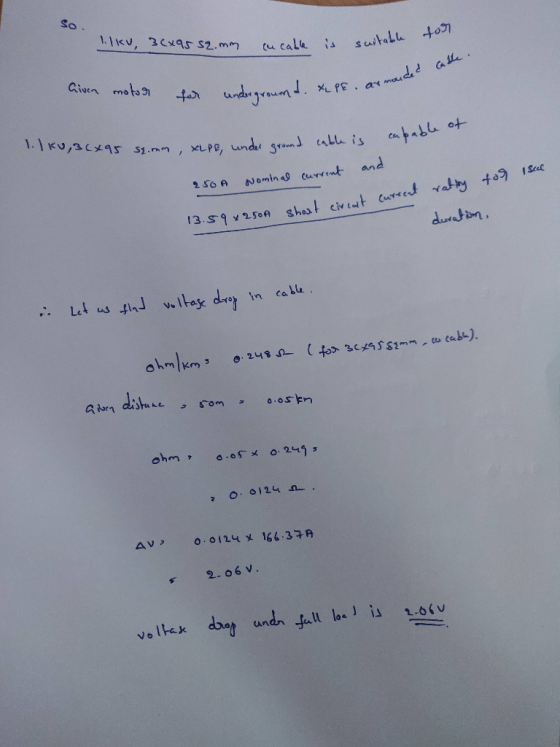

select a suitable underground cu, XLPE insulated cable to supply three phase , 400V , 100KW , 0.9 p.f lagging motor over 50m distance. Temperature and grouping derating factors are 0.8 , 0.9 resp. YDelta starter used.
Homework Answers
hope you understood
answer.Add Answer to:
