A toroidal core has distributed air-gaps that make the relative permeability ur equal to 75. The...

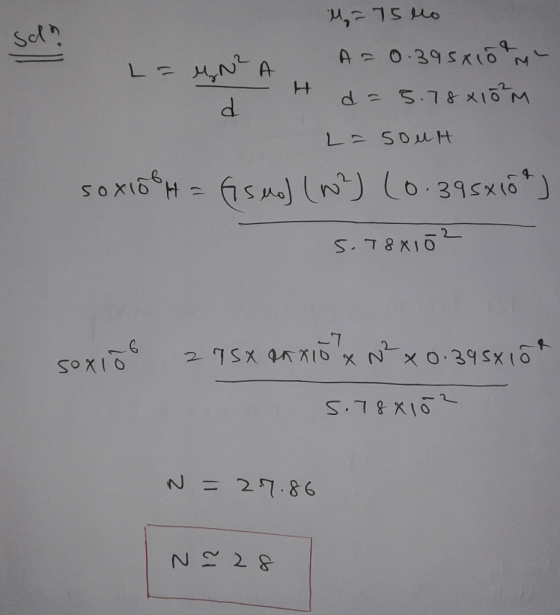

A toroidal core has distributed air-gaps that make the relative permeability ur equal to 75. The cross-sectional area is 0.395 cm2 and the mean path length is 5.78cm. Calculate the number of turns required to obtain an inductance of 50uH.
Homework Answers
Add Answer to:
A toroidal core has distributed air-gaps that make the relative
permeability ur equal to 75. The...
Chapter 2 Question A toroidal core of relative permeability 1000 has a mean diameter of 300...
Chapter 2 Question A toroidal core of relative permeability 1000 has a mean diameter of 300 mm and a cross sectional area of 6 cm". The core is wound with 1000 turns. If a dc current establishes a flux in the core of 6 x 10-4 Webers, determine: (a) (1) the magnetic flux density. (ii) the inductance. (iii) the magnetic intensity (H). (iv) the stored energy.
94 Exercise :4.A square magnetic core Figure :4. has four 0.5 mm air gaps. The core...
94 Exercise :4.A square magnetic core Figure :4. has four 0.5 mm air gaps. The core material has a relative permeability of us = 800 and a coil of 1400 turns is wound around it. The core has a square cross-sectional area of dimensions 4 cm and a magnetic path length (including the air gaps) is 20 cm. A = 4 cm 2 N = 1400 4 Air gaps = 0.5 mm each Figure : 4. = 20 cm including...
Question 7 A magnetic core is shown in Figure 1. Relative permeability of the core is...
Question 7 A magnetic core is shown in Figure 1. Relative permeability of the core is 14 = 2000. Total number of winding turns in the left winding is NL = 100 and in the right winding is Nr = 10. Assume that the core cross section is uniform and the combined length of all air-gaps is much smaller than the dimensions of the core cross-section. Calculate the following: a) The magnetomotive force in the core if i = 2...
Problem 5 An air-filled toroidal solenoid has a mean radius of 15.4 cm and a cross-sectional...
Problem 5 An air-filled toroidal solenoid has a mean radius of 15.4 cm and a cross-sectional area of 4.95 cm as shown in Figure 1). Picture this as the toroidal core around which the windings are wrapped to form the toroidal solenoid The current flowing through it is 12.5 A, and it is desired that the energy stored within the solenoid be at least 0.395 J. PartA What is the least number of turns that the winding must have? Express...
An air-filled toroidal solenoid has a mean radius of 15.3 cm and a cross-sectional area of...
An air-filled toroidal solenoid has a mean radius of 15.3 cm and a cross-sectional area of 4.97 cm2 as shown in (Figure 1). Picture this as the toroidal core around which the windings are wrapped to form the toroidal solenoid. The current flowing through it is 11.5 A , and it is desired that the energy stored within the solenoid be at least 0.393 J . Part A What is the least number of turns that the winding must have?...
[Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the...
[Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the below figure. The cross-sectional area of the core is A. = 20 cm?, the mean length of the core is l. =80 cm, and the length of the airgap is 0.06 cm. The number of turns on the coil is 200. The relative permeability of the core can be assumed to be constant and equal to 2000. The fringing effect causes a 6% increase...
Problem 2 (7 pts): An air-filled toroidal solenoid has 500 turns of wire, a mean radius...
Problem 2 (7 pts): An air-filled toroidal solenoid has 500 turns of wire, a mean radius of 14.0 cm, and a cross-sectional area of 6.00 cm2. If the current is 4.00 A, calculate: (a) the magnetic field in the solenoid; (b) the self-inductance of the solenoid; (c) the energy stored in the magnetic field; (d) the energy density in the magnetic field. (1pt) (2pts) (2pts) (2pts)
15 marks] B. A toroidal core with a mean diameter of 200 mm and a cross-sectional area of 800 mm has an air gap of length 1.1 mm cut in it Fringing and leakage of flux around the air gap may be negle...
15 marks] B. A toroidal core with a mean diameter of 200 mm and a cross-sectional area of 800 mm has an air gap of length 1.1 mm cut in it Fringing and leakage of flux around the air gap may be neglected (i) Determine the current required in a coil of 1100 turns to produce a flux density of 1 T The relative permeability , of the core material (iron) may be assumed to be 3000 for this level...
3. [Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in...
3. [Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the below figure. The cross-sectional area of the core is A = 20 cm², the mean length of the core is l. =80 cm, and the length of the airgap is 0.06 cm. The number of turns on the coil is 200. The relative permeability of the core can be assumed to be constant and equal to 2000. The fringing effect causes a 6%...
EO Vuy vvvvvvvv NTurns 93 The relative permeability of the core material is 3500, and the...
EO Vuy vvvvvvvv NTurns 93 The relative permeability of the core material is 3500, and the average length of the core is 52cm as the cross- section of the core is 64cm2. The core is uniform of cross-section (all limbs have the same cross-section). There are 80 turns on the coil. Answer the following questions, 1) The reluctance of the core (AT/Wb) 2) Find the flux density (T) of the core if the current į in the coil is 0.75...
Chapter 2 Question A toroidal core of relative permeability 1000 has a mean diameter of 300 mm and a cross sectional area of 6 cm". The core is wound with 1000 turns. If a dc current establishes a flux in the core of 6 x 10-4 Webers, determine: (a) (1) the magnetic flux density. (ii) the inductance. (iii) the magnetic intensity (H). (iv) the stored energy.
94 Exercise :4.A square magnetic core Figure :4. has four 0.5 mm air gaps. The core material has a relative permeability of us = 800 and a coil of 1400 turns is wound around it. The core has a square cross-sectional area of dimensions 4 cm and a magnetic path length (including the air gaps) is 20 cm. A = 4 cm 2 N = 1400 4 Air gaps = 0.5 mm each Figure : 4. = 20 cm including...
Question 7 A magnetic core is shown in Figure 1. Relative permeability of the core is 14 = 2000. Total number of winding turns in the left winding is NL = 100 and in the right winding is Nr = 10. Assume that the core cross section is uniform and the combined length of all air-gaps is much smaller than the dimensions of the core cross-section. Calculate the following: a) The magnetomotive force in the core if i = 2...
Problem 5 An air-filled toroidal solenoid has a mean radius of 15.4 cm and a cross-sectional area of 4.95 cm as shown in Figure 1). Picture this as the toroidal core around which the windings are wrapped to form the toroidal solenoid The current flowing through it is 12.5 A, and it is desired that the energy stored within the solenoid be at least 0.395 J. PartA What is the least number of turns that the winding must have? Express...
[Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the below figure. The cross-sectional area of the core is A. = 20 cm?, the mean length of the core is l. =80 cm, and the length of the airgap is 0.06 cm. The number of turns on the coil is 200. The relative permeability of the core can be assumed to be constant and equal to 2000. The fringing effect causes a 6% increase...
Problem 2 (7 pts): An air-filled toroidal solenoid has 500 turns of wire, a mean radius of 14.0 cm, and a cross-sectional area of 6.00 cm2. If the current is 4.00 A, calculate: (a) the magnetic field in the solenoid; (b) the self-inductance of the solenoid; (c) the energy stored in the magnetic field; (d) the energy density in the magnetic field. (1pt) (2pts) (2pts) (2pts)
15 marks] B. A toroidal core with a mean diameter of 200 mm and a cross-sectional area of 800 mm has an air gap of length 1.1 mm cut in it Fringing and leakage of flux around the air gap may be neglected (i) Determine the current required in a coil of 1100 turns to produce a flux density of 1 T The relative permeability , of the core material (iron) may be assumed to be 3000 for this level...
3. [Magnetic circuits – 20 points] A two-legged magnetic core with an airgap is shown in the below figure. The cross-sectional area of the core is A = 20 cm², the mean length of the core is l. =80 cm, and the length of the airgap is 0.06 cm. The number of turns on the coil is 200. The relative permeability of the core can be assumed to be constant and equal to 2000. The fringing effect causes a 6%...
EO Vuy vvvvvvvv NTurns 93 The relative permeability of the core material is 3500, and the average length of the core is 52cm as the cross- section of the core is 64cm2. The core is uniform of cross-section (all limbs have the same cross-section). There are 80 turns on the coil. Answer the following questions, 1) The reluctance of the core (AT/Wb) 2) Find the flux density (T) of the core if the current į in the coil is 0.75...
