Given that the effective masses for Ge (bandgap=0.66eV) are approximately 0.56m (for electrons) and 0.36m (for...
Given that the effective masses for Ge (bandgap=0.66eV) are approximately 0.56m (for electrons) and 0.36m (for holes), where m=9.11 10-31 kg, and the mobility at room temperature is 3900 cm2 V-1s-1 (for electrons) and 1900 cm2 V-1 s-1 (for holes), calculate the intrinsic concentration and intrinsic resistivity of Ge.
Homework Answers

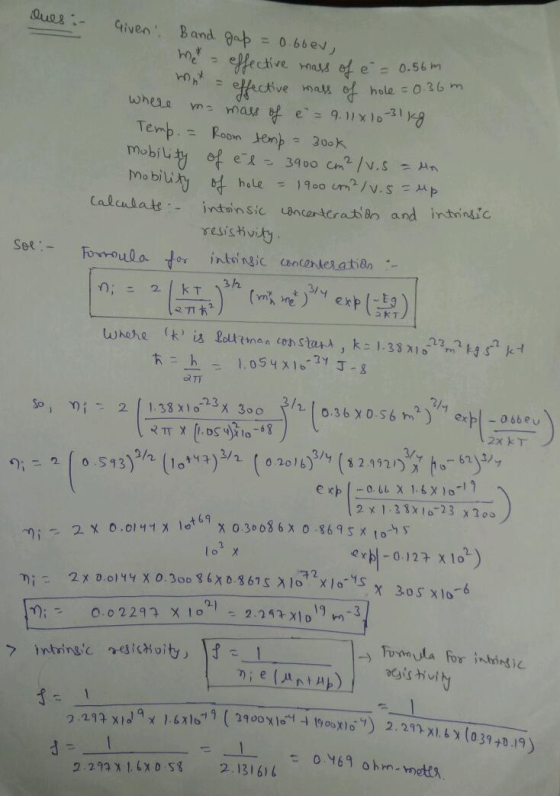

By
using the formula of intrinsic carrier concentration and intrinsic
resistivity can be calculated by putting the values in desired
units.
Add Answer to:
Given that the effective masses for Ge (bandgap=0.66eV) are
approximately 0.56m (for electrons) and 0.36m (for...
Consider the semiconductor CuInSe2. Its bandgap is 1.0 eV, and the effective masses of electrons and...
Consider the semiconductor CuInSe2. Its bandgap is 1.0 eV, and the effective masses of electrons and holes are .09 me and .72 me, respectively. If the material is doped such that the Fermi energy is .1 eV above the valence band edge, determine: (a) the number of electrons in the conduction band per cubic centimeter and (b) the number of holes in the valence band per cubic centimeter.
A wire is made of an intrinsic semiconductor whose bandgap is 1.0eV. The wire is 0.05microns...
A wire is made of an intrinsic semiconductor whose bandgap is 1.0eV. The wire is 0.05microns in diameter and 1 micron long. Electrons have a mobility of 1000/cm V-sec and holes have a mobility of 200/cm V-sec. The effective mass of an electron in the conduction band is 1.2 and that of a hole in the valence band is 0.6. The semiconductor operates at room temperature. a. What is the probability of finding an electron at an energy 0.5eV above...
Question 13 (7 marks) 13.1) (2 marks) Intrinsic semiconductor Germanium (Ge) has a bandgap of 0.67eV How do you expect...
Question 13 (7 marks) 13.1) (2 marks) Intrinsic semiconductor Germanium (Ge) has a bandgap of 0.67eV How do you expect the electrical resistivity of Intrinsic Ge to change as you increase its temperature from room temperature to one hundred degrees? 13.2) (1 mark) Pure Si is also an intrinsic semiconductor, but with a band gap of 1.11eV. How do you expect the electrical resistivity of Intrinsic Si to compare with that of Intrinsic Ge? 13.3) (2 marks) If we add...
The mobility values of electrons and holes in a silicon sample are 1500 cm2/Vs and 500...
The mobility values of electrons and holes in a silicon sample are 1500 cm2/Vs and 500 cm2/Vs, respectively. Calculate the resistivity of the intrinsic semiconductor. The semiconductor is then doped by phosphorus to concentration of 1×1017 cm-3. Calculate the resistivity of the extrinsic semiconductor. Explain why the conductivity is improved in the latter case. Is this a p-type or n-type semiconductor? The intrinsic carrier concentration in silicon is 1.45×1010 cm-3. (10)
A sample of Ge is doped to the extent of 1014 cm-3 donor atoms and 7...
A sample of Ge is doped to the extent of 1014 cm-3 donor atoms and 7 x 10 13 cm-3 acceptor atoms. At the temperature of the sample, the resistivity of intrinsic Ge is 60 ohm-cm. If the applied electric field is 2 V cm-1, find the total conduction current density. Assume electron and hole mobilities of 3800 and 1800 cm2 V-1s-1, respectively.
Problem 1 Using what we have leamed in chapter 1, derive, for a semiconductor, the expressions of...
Problem 1 Using what we have leamed in chapter 1, derive, for a semiconductor, the expressions of The total current density Conductivity - Problem 2 Consider Germanium sample with the following characteristics the electron and hole mobility for Ge is 0.39 and 0.19 m2N.s The electron and hole effectives masses are 0.56me and 0.4 me The energy gap is 0.67 eV at T-27°C 1) 2) Find the intrinsic carrier concentration for Ge What is the resistivity of the Ge sample...
solve for c and d Problem 8 Intrinsic conductivity in Si 11/6/2019 ESG 333 Effective masses,...
solve for c and d
Problem 8 Intrinsic conductivity in Si 11/6/2019 ESG 333 Effective masses, mobilities and energy gaps can be measured directly For example: for Si: effective masses: m 0.33 mecon (these are averages) m 0.56 mekctros 0.13 m2/(V. s) at RT: e Ec 1.11 eV Hh0.05 m/(V. s) (see pages 138-142 of notes) For intrinsic Si (no impurities): a) Calculate the relaxation times t, Th and the chemical potential u (at T- 300 K) b) Calculate the...
Consider a semiconductor material X, with the following parameters at a room temperature of 300K: Energy...
Consider a semiconductor material X, with the following parameters at a room temperature of 300K: Energy bandgap of Eg = 1.15 ev, density of states at the Conduction band edge of Nc = 4.8e+23, effective density of states at the Valance band edge of Nv = 1e+25, drift mobilities of the electrons and holes, ue and uh, such that ue =0.4 and uh = 0.02. (1) What is the intrinsic concentration and conductivity of 'material x' at room temperature 300K?...
**Please Show All The Steps** As I mentioned in the class assume that we have a...
**Please Show All The Steps**
As I mentioned in the class assume that we have a GaAs (Gallium
Arsenide) sample which was doped with excessive As to produce a
resistivity of 0.05 Ωm. Owing to the presence of an unknown
acceptor impurity the actual resistivity was 0.06Ωm, the sample
remaining n-type. What were the concentrations of donors and
acceptors present?
(Please take μe=0.85 m2/Vs and assume that all impurity atoms
are ionized)
PHYSICAL CONSTANTS Avagadro's Number NA- 6.02 x 10*23...
helpp Problem 5b. - 10 Points total A semiconductor material has an energy gap of 0.75...
helpp
Problem 5b. - 10 Points total A semiconductor material has an energy gap of 0.75 eV, effective masses mn= 0.04 mo and mp= 0.22 mo, where mo is the free electron mass = 9.11 x 103 [kg]. Assume complete ionization. a) Let the temperature be T = 350 °K. The material is un-doped. Find the intrinsic Fermi level EFi and carrier concentration ni- pi (4 points) b) Let the temperature be T = 350 K. The material is doped...
A wire is made of an intrinsic semiconductor whose bandgap is 1.0eV. The wire is 0.05microns in diameter and 1 micron long. Electrons have a mobility of 1000/cm V-sec and holes have a mobility of 200/cm V-sec. The effective mass of an electron in the conduction band is 1.2 and that of a hole in the valence band is 0.6. The semiconductor operates at room temperature. a. What is the probability of finding an electron at an energy 0.5eV above...
Question 13 (7 marks) 13.1) (2 marks) Intrinsic semiconductor Germanium (Ge) has a bandgap of 0.67eV How do you expect the electrical resistivity of Intrinsic Ge to change as you increase its temperature from room temperature to one hundred degrees? 13.2) (1 mark) Pure Si is also an intrinsic semiconductor, but with a band gap of 1.11eV. How do you expect the electrical resistivity of Intrinsic Si to compare with that of Intrinsic Ge? 13.3) (2 marks) If we add...
Problem 1 Using what we have leamed in chapter 1, derive, for a semiconductor, the expressions of The total current density Conductivity - Problem 2 Consider Germanium sample with the following characteristics the electron and hole mobility for Ge is 0.39 and 0.19 m2N.s The electron and hole effectives masses are 0.56me and 0.4 me The energy gap is 0.67 eV at T-27°C 1) 2) Find the intrinsic carrier concentration for Ge What is the resistivity of the Ge sample...
solve for c and d
Problem 8 Intrinsic conductivity in Si 11/6/2019 ESG 333 Effective masses, mobilities and energy gaps can be measured directly For example: for Si: effective masses: m 0.33 mecon (these are averages) m 0.56 mekctros 0.13 m2/(V. s) at RT: e Ec 1.11 eV Hh0.05 m/(V. s) (see pages 138-142 of notes) For intrinsic Si (no impurities): a) Calculate the relaxation times t, Th and the chemical potential u (at T- 300 K) b) Calculate the...
**Please Show All The Steps**
As I mentioned in the class assume that we have a GaAs (Gallium
Arsenide) sample which was doped with excessive As to produce a
resistivity of 0.05 Ωm. Owing to the presence of an unknown
acceptor impurity the actual resistivity was 0.06Ωm, the sample
remaining n-type. What were the concentrations of donors and
acceptors present?
(Please take μe=0.85 m2/Vs and assume that all impurity atoms
are ionized)
PHYSICAL CONSTANTS Avagadro's Number NA- 6.02 x 10*23...
helpp
Problem 5b. - 10 Points total A semiconductor material has an energy gap of 0.75 eV, effective masses mn= 0.04 mo and mp= 0.22 mo, where mo is the free electron mass = 9.11 x 103 [kg]. Assume complete ionization. a) Let the temperature be T = 350 °K. The material is un-doped. Find the intrinsic Fermi level EFi and carrier concentration ni- pi (4 points) b) Let the temperature be T = 350 K. The material is doped...
