Base network is 152.100.80.0/20
Network A Number of hosts 100
B 30
C 512
D 64
E 1000
What is Network Address of C (Your network address should be in the format Network/Mask)? Is it 152.100.88.0 ???
Last usable host ip of Network B: Is it 152.100.93.0 ???

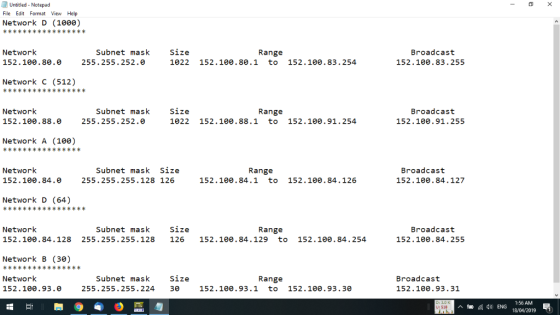

Network D (1000)
*****************
Network Subnet mask Size Range Broadcast
152.100.80.0 255.255.252.0 1022
152.100.80.1 to 152.100.83.254 152.100.83.255
Network C (512)
*****************
Network Subnet mask Size Range Broadcast
152.100.88.0 255.255.252.0 1022
152.100.88.1 to 152.100.91.254 152.100.91.255
Network A (100)
****************
Network Subnet mask Size Range Broadcast
152.100.84.0 255.255.255.128
126 152.100.84.1 to 152.100.84.126
152.100.84.127
Network D (64)
*****************
Network Subnet mask Size Range Broadcast
152.100.84.128 255.255.255.128
126 152.100.84.129 to 152.100.84.254
152.100.84.255
Network B (30)
****************
Network Subnet mask Size Range Broadcast
152.100.93.0 255.255.255.224 30
152.100.93.1 to 152.100.93.30 152.100.93.31

I HAVE ARRANGED IN ASCENDING ORDER FROM NETWORK SIZE
if you have any doubt then please ask me without any hesitation in the comment section below , if you like my answer then please thumbs up for the answer , before giving thumbs down please discuss the question it may possible that we may understand the question different way and we can edit and change the answers if you argue, thanks :)
