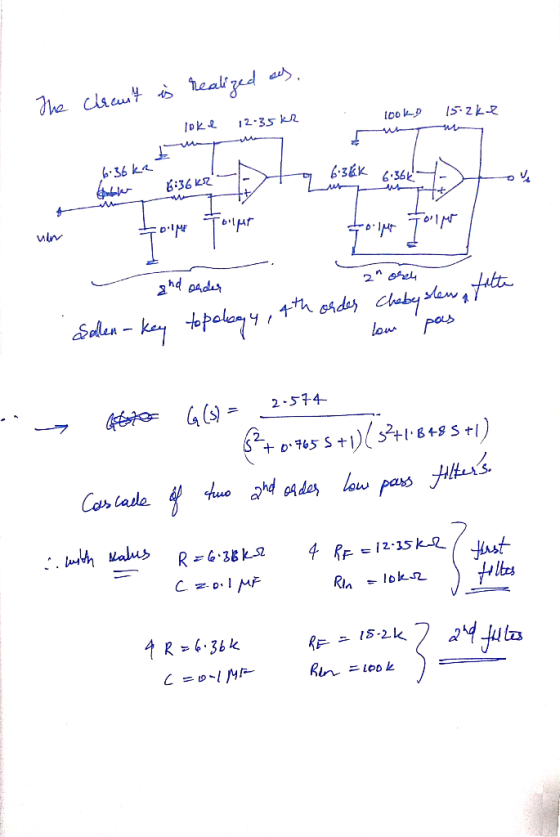

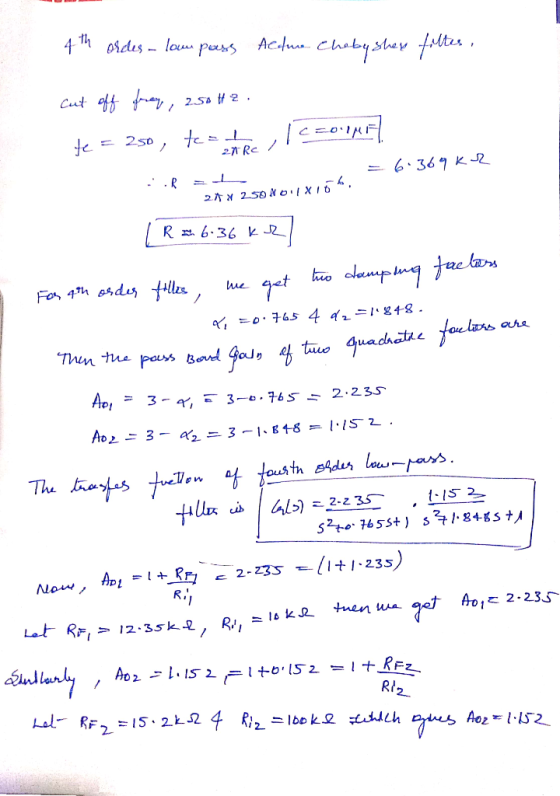

Create a 4th-order lowpass active Chebyshev filter with a 3-dB ripple in the pass band with a corner frequency of 250 Hz using the Sallen-Key topology. Draw the final circuit and all component values. Create a Bode plot for the response at each stage and the overall response using MATLAB
Create a 4th-order lowpass active Chebyshev filter with a 3-dB ripple in the pass band with...
2. Design an equal-ripple (Chebychev) low-pass filter with N-3, 0.5 dB ripple, Tee Chebyshev) has the most rejection at 2fc?
2. Design an equal-ripple (Chebychev) low-pass filter with N-3, 0.5 dB ripple, Tee Chebyshev) has the most rejection at 2fc?
13.60 A second-order band-pass filter is required with a center frequency of fo 54 kHz and a passband gain of +50 dB. If the filter is implemented using the circuit of Fig. 13.15 with C1-C2, choose appropriate values for Ri and R2. What is the resulting value of for the filter? What is its bandwidth? Ci Figure 13.15 Second-order active bandpass filter of the Sallen-Key type. R2 C2 Ri UIN OUT
13.60 A second-order band-pass filter is required with a...
12. Design a fourth order, 2 dB Chebyshev highpass filter with a cutoff frequency of 2.4 kHz a. Draw the circuit, labeling Vin, Yout, and all component values. (14 points) and a passband gain of 0 dB. Use capacitor values of 3300 pF an approximation of the Bode plot of the magnitude transfer function IH(ia) in dB, İndicating the ripple, the cutoff frequency, and the approximate filter roll-off in dB/decade. Note, this does not reguire solving for the function. (6...
Need to create a bandpass filter with cutoff frequencies from
300Hz to 3000Hz with a op-amp included in circuit. I have examples
below. you can use multisim, Pspice, or matlab for simulation of
circuit. I will up vote. Thanks.
Band-Pass Jitte L 300 H2 2R Ra C ХВР1 C1 IN OUT R2 53.10 1pF V1 R1 5310 6Vpk 1KHZ 0° BODE PLOT BODE PLOT m Design 000 50 00 -N00 00 - 150 00 Cune -20000 Bode Reault 100G 100...
Consider a 4th-order lowpass Chebychev I digital filter given by 0.055524 + 0.222173 +0.3331:2 +0.22212 +0.0555 24 - 0.749823 + 1.072522 – 0.55982 +0.2337 (2) 1. Assuming the sampling frequency of this filter is Fs = 10kHz, plot the frequency response of this filter in the first Nyquist zone, in units of Hz as opposed to a normalized frequency or units of radians w. Plot the magnitude using the dB scale. 2. Plot the poles and zeroes of this filter...
Using a LM741 op-amp chip and a 1uF capacitor. Design a band pass filter with corner frequencies at 80 Hz and 320 Hz. 1. What resistor should be used? 2. What is the transfer function and bode plot?
Problem 2 a) Using 5 nF capacitors, design an active broad- band first-order bandreject filter with a lower cutoff frequency of 1000 Hz, an upper cut-off frequency of 5000 Hz, and a pass band gain of 10dB. b) Draw the schematic diagram of the filter. c) Write the transfer function to find H(jωo), where ωo is the center frequency of the filter. d) What is the gain (in decibels) of the filer at the center frequency? e) Using Matlab make...
2. Design a digital lowpass filter to meet the following specifications: passband edge = 0.45π stopband edge = 0.5π Rp = 0.5 dB, As = 60 dB a. Design a Buttterworth filter, you may use the butterord and butter commands to implement. b. Design Chebyshev Type 1 filter ( use the equivalent commands to above ) c. Design an Elliptic fitler ( use the equivalent commands to part a ). d. List the order of each filter and find the...
Design a lowpass filter, with cutoff frequencỵ 14 16 rad s w. The maximum gain of the filter should be A 17.46 dB, and the filter gain at angularfrequencỵws 3519 rad should be no more than As -21.99 dB. a) Give a detailed analytical solution, leading to your filter order, and circuit parameters Sketchan approximate bode plot of your filter's frequency response, using a straight line approxi- mation Can you solve the problem? I think its 3th order if im...
3. For the active filter circuit below, complete the following: a) Find the magnitude of the transfer function | H | starting from the nodal equations. b) Find the phase shift of the transfer function (W) c) Find the cutoff frequency fc in Hz d) Is this a high pass or low pass filter? e) Find the passband gain of the filter 62 k2 ANA EVA 22 nF 3.3k f) Given the following input signal: vi(t) = 1.0 sin(2nft +...
