Consider an PMOSFET with NA=1016/cm3 and an aluminum gate (ΦM=4.1eV). The oxide layer is SiO2 with a thickness of 20nm. Use |VG−VT| =2V in this problem.

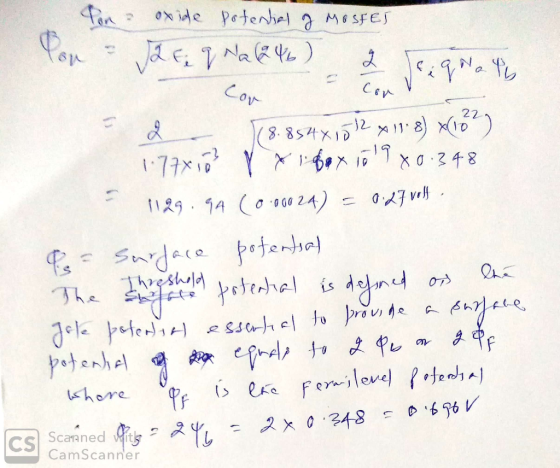

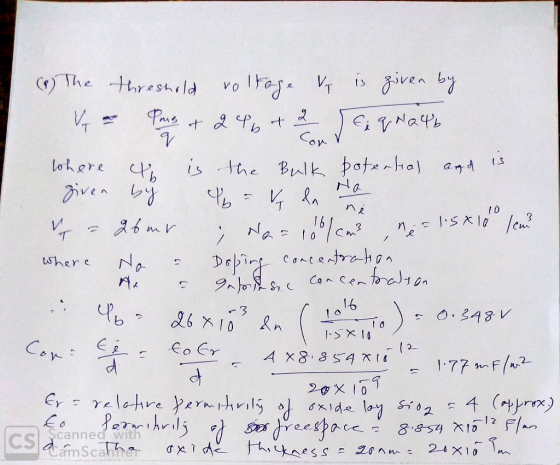

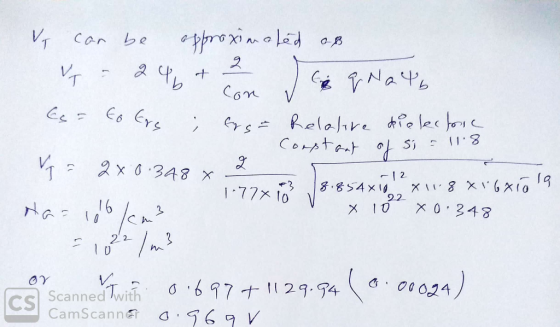

(a) Determine the threshold voltage VT and φox, φS when VG= VT.

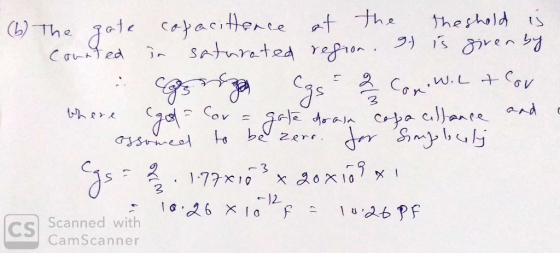

(b) Determine the gate capacitance at the threshold.

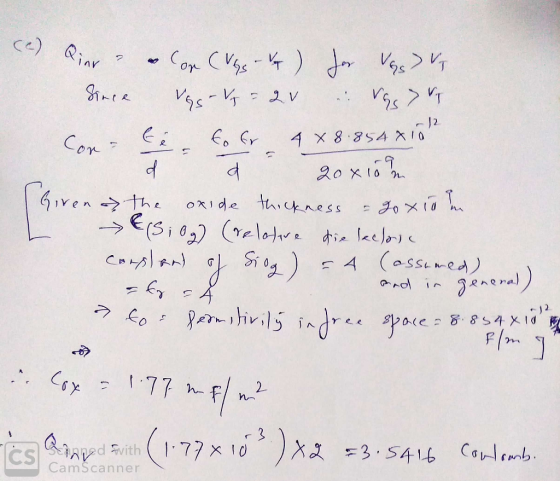

(c) Determine Qinv when VG− VT = 2 V.
Consider an PMOSFET with NA=1016/cm3 and an aluminum gate (ΦM=4.1eV). The oxide layer is SiO2 with...
Problem 3 (25 points) Consider a MOS capacitor with p polysilicon gate and p-type silicon substrate with NA 1016 cm3. Ef- Ev in the polysilicon gate. Assume the following parameters: I200A, , 1.5x10° cm*,E, -3.9x8.854x104FIcm ox a) (5 points) Calculate the metal-semiconductor work function difference. b) (5 points) Calculate the surface potential at the threshold inversion. c) (5 points) Calculate the depletion width (in μm) at the threshold inversion. d) (5 points) Calculate the flat band voltage. e) (5 points)...
3. For an n-channel MOSFET with gate oxide (SiO2) thickness of 30 nm, threshold voltage of 0.7 V, Z = 30 um, and length of the device is 0.9 μm, calculate the drain current for VG-3 V and VD-0.2 V. Assume that the electron channel mobility is 200 cm'/V-sec. What will be the required drain current to drive the MOS in saturation region? How the drain current will change if HfO2 with Ks 25 will be used as a gate...
n_3. The gate length Q2 Consider an n-type MOSFET with NA-7x 1012 cm of the MOSFET L=2 um, width W=12 /um and the oxide thickness tor= 8 nm. Take N-Ny=1019 cm-3, Eg=1.12 eV, n;=1.5x1010 cm' kT-0.026 eV, vacuum permittivity eo-8.854x1014 F/cm, dielectric con- stant of oxide eo=4, dielectric constant of silicon Esi=12, electron mobil- ity n230 cm2/Vs, hole mobility p83 cm2/Vs -3 Q2.1 Calculate qoB = |Ef- E4], the oxide capacitance Cor; the maximum depletion width Wmaa and the threshold...
For an ideal MOS structure, the SiO2 thickness is 150 A, and the substrate is doped with 2x1016/ cm3 acceptors. Determine the threshold voltage, Vr, required to achieve strong inversion and find the electric field in the oxide when the applied bias V-Vr.
Problem 5: The gate capacitance vs. gate voltage characteristic of a p+ poly-Si gated MOS capacitor of area 1x10"cm', is as shown: Assume Esi = 11.9, Eox-39,E,-8.85 × 10-14 F/on, and nl = 1.5 x 1010 cm3 Co [Farads] 3.45x1011 >Va [Volts] 1.0 0.3 (a) Is the semiconductor (silicon) substrate doped n-type or p-type? Explain briefly. (b) Is the measurement frequency low or high? Explain briefly. (c) What is the thickness of the gate oxide (SiO2), xo? (d) Estimate the...
Problem 3: 6.1 An N-channel MOSFET with N+-polv gate is fabricated on a 15 Ω cm P-type Si wafer with oxide fisxed charge density-qxe2 wSo pm. L-2pm. Tax-5m (a) Determine the flat-band voltage, Vfb (b) What is the threshold voltage, Vt? (c) A circuit designer requested N-MOSFET with Vt 0.5 V from a device engineer 10-2 It was not allowed to change the gate oxide thickness. If you are the device engineer, what can you do? Give specific answers including...
Determine the maximum width of the depletion region,
Wmax??
An n-channel metal-SiO2-Si MOSFET has the following parameters: 16 ст.3 NA = 4x 101 μη-I 000 cmr/(V.sec ) Фт.--0.925 eV, Gate oxide thickness tox-d= 3.0x10-6 cm Dimensions: L = 0.5x10-4 cm, Z = 1 x 104 cm Oxide Charges: Qs = 4.8x 10-8 Coul/cm, Qm= Q,-Qu = 0, Assume -9.65x10 cm3,T-300 K and KT-0.0259 eV cm . .
An n-channel metal-SiO2-Si MOSFET has the following parameters: 16 ст.3 NA = 4x...
Problem 1. An n-channel MOS transistor is fabricated with the following specifications: Substrate is a p-type silicon with doping concentration NA=2x1015 cm-3 . The SiO2 gate thickness is 200 Å. Effective interface charges Qi=6.5x10-9 col/cm2. Work function difference between gate conductor and silicon substrate qфms=-0.95 eV. Calculate the following: a. Maximum depletion width, with respect to ground b. Gate capacitance per unit area, Ci c. Flat-band voltage, VFB d. Threshold voltage, VT.
semiconductor class, need right answer pls

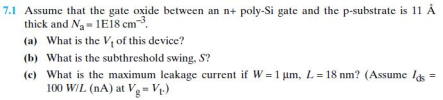

7.1 Assume that the gate oxide between an n+ poly-Si gate and the p-substrate is 11 thick and Na= 1E18 cm" (a) What is the Vt of this device? (b) What is the subthreshold swing, S? (c) What is the maximum leakage current if W= 1 μm, L=18nm? (Assume lds = 100 WIL (nA) at Vg V)
