You pull downward with a force of 25 N on a rope that passes over a...

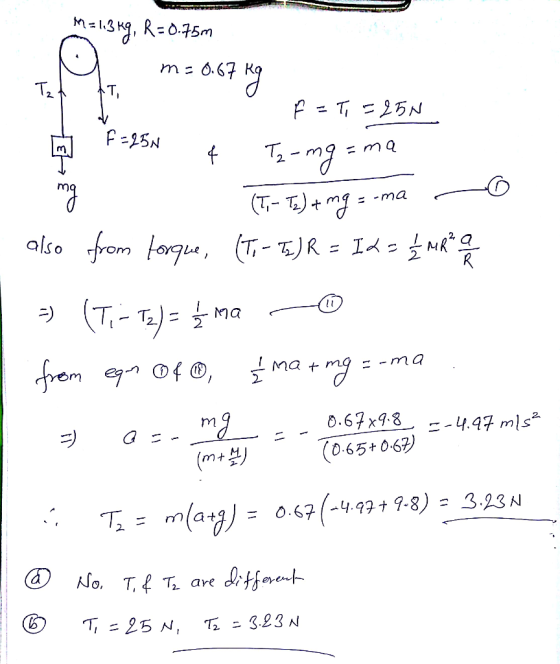

You pull downward with a force of 25 N on a rope that passes over a disk-shaped pulley of mass 1.3 kg and radius .075m. The other end of the rope is attached to a .67 kg mass.
a. Is the tension in the rope the same on both sides of the pulley? If not, which side has the largest tension?
b. Find the tension in the rope on both sides of the pulley.
Homework Answers
Add Answer to:
You pull downward with a force of 25 N on a rope that passes
over a...
You pull downward with a force of 24.8 N on a rope that passes over a...
You pull downward with a force of 24.8 N on a rope that passes over a disk-shaped pulley of mass 1.40 kg and radius 0.0739 m. The other end of the rope is attached to a 0.677-kg mass. Calculate the tension in the rope on both sides of the pulley. Enter tension for the part of the rope that you are pulling on first. Then enter the tension for the part of the rope with the mass.
You pull downward with a force of 26.9 N on a rope that passes over a...
You pull downward with a force of 26.9 N on a rope that passes over a disk-shaped pulley of mass 1.44 kg and radius 0.0765 m. The other end of the rope is attached to a 0.630-kg mass. Calculate the tension in the rope on both sides of the pulley. Enter tension for the part of the rope that you are pulling on first. Then enter the tension for the part of the rope with the mass.
You pull downward with a force of 23.7 N on a rope that passes over a...
You pull downward with a force of 23.7 N on a rope that passes over a disk-shaped pulley of mass 1.32 kg and radius 0.0757 m. The other end of the rope is attached to a 0.665-kg mass. Calculate the tension in the rope on both sides of the pulley. Enter tension for the part of the rope that you are pulling on first. Then enter the tension for the part of the rope with the mass. Submit Answer Tries...
A cable passes over a pulley. Because of friction, the tension in the cable is not the same on opposite sides of the pu...
A cable passes over a pulley. Because of friction, the tension in the cable is not the same on opposite sides of the pulley. The force on one side is 121 N, and the force on the other side is 109 N. Assuming that the pulley is a uniform disk of mass 2.22 kg and radius 0.770 m, determine its angular acceleration. Submit Answer Tries 0/10 This discussion is closed Send Feedb
1) A rope of negligible mass passes over a uniform cylindrical pulley of 1.50 kg mass...
1) A rope of negligible mass passes over a uniform cylindrical pulley of 1.50 kg mass and 0.090 m radius. The bearings of the pulley have negligible friction, and the rope does not slip on the pulley. On one end of the rope hangs a 3.00 kg bunch of bananas, and on the other end hangs a 4.50 kg monkey. Calculate the downward acceleration of the monkey and the tension in both ends of the rope. 2) A 200 g...
By means of a rope whose mass is negligible, two blocks are suspended over a pulley,...
By means of a rope whose mass is negligible, two blocks are suspended over a pulley, as the drawing shows, with m1 = 10.7 kg and m2 = 46.0 kg. The pulley can be treated as a uniform, solid, cylindrical disk. The downward acceleration of the 46.0-kg block is observed to be exactly one-half the acceleration due to gravity. Noting that the tension in the rope is not the same on each side of the pulley, find the mass of...
9. By means of a rope whose mass is negligible, two blocks are suspended over a...
9. By means of a rope whose mass is negligible, two blocks are suspended over a pulley, as the drawing shows, with mı = 10.6 kg and m2 = 42.6 kg. The pulley can be treated as a uniform, solid, cylindrical disk. The downward acceleration of the 42.6 kg block is observed to be exactly one-half the acceleration due to gravity. Noting that the tension in the rope is not the same on each side of the pulley, find the...
A 12 kg load hangs from one end of a rope that passes over a small...
A 12 kg load hangs from one end of a rope that passes over a small frictionless pulley. A 15 kg counterweight is suspended from the other end of the rope. The system is released from rest. a) Calculate the tension force in the rope. b) What distance does the 12 kg move in the first 3 seconds? c) What is the velocity of 15 kg mass at the end of 5 seconds?
Two 35.0 N weights are suspended at opposite ends of a rope that passes over a...
Two 35.0 N weights are suspended at opposite ends of a rope that passes over a light, frictionless pulley. The pulley is attached to a chain that goes to the ceiling (a) What is the tension in the rope? (b) What is the tension in the chain?
The Atwood machine consists of two masses hanging from the ends of a rope that passes...
The Atwood machine consists of two masses hanging from the ends of a rope that passes over a pulley. The pulley can be approximated by a uniform disk with mass m = 4.53 kg and radius r = 0.450 m. The hanging masses are mu = 20.5 kg and mr = 12.7 kg. Calculate the magnitude of the masses' acceleration a and the tension in the left and right ends of the rope, T, and Tr, respectively. mi m/s2 TL...
You pull downward with a force of 24.8 N on a rope that passes over a disk-shaped pulley of mass 1.40 kg and radius 0.0739 m. The other end of the rope is attached to a 0.677-kg mass. Calculate the tension in the rope on both sides of the pulley. Enter tension for the part of the rope that you are pulling on first. Then enter the tension for the part of the rope with the mass.
You pull downward with a force of 23.7 N on a rope that passes over a disk-shaped pulley of mass 1.32 kg and radius 0.0757 m. The other end of the rope is attached to a 0.665-kg mass. Calculate the tension in the rope on both sides of the pulley. Enter tension for the part of the rope that you are pulling on first. Then enter the tension for the part of the rope with the mass. Submit Answer Tries...
A cable passes over a pulley. Because of friction, the tension in the cable is not the same on opposite sides of the pulley. The force on one side is 121 N, and the force on the other side is 109 N. Assuming that the pulley is a uniform disk of mass 2.22 kg and radius 0.770 m, determine its angular acceleration. Submit Answer Tries 0/10 This discussion is closed Send Feedb
9. By means of a rope whose mass is negligible, two blocks are suspended over a pulley, as the drawing shows, with mı = 10.6 kg and m2 = 42.6 kg. The pulley can be treated as a uniform, solid, cylindrical disk. The downward acceleration of the 42.6 kg block is observed to be exactly one-half the acceleration due to gravity. Noting that the tension in the rope is not the same on each side of the pulley, find the...
Two 35.0 N weights are suspended at opposite ends of a rope that passes over a light, frictionless pulley. The pulley is attached to a chain that goes to the ceiling (a) What is the tension in the rope? (b) What is the tension in the chain?
The Atwood machine consists of two masses hanging from the ends of a rope that passes over a pulley. The pulley can be approximated by a uniform disk with mass m = 4.53 kg and radius r = 0.450 m. The hanging masses are mu = 20.5 kg and mr = 12.7 kg. Calculate the magnitude of the masses' acceleration a and the tension in the left and right ends of the rope, T, and Tr, respectively. mi m/s2 TL...
