A spherical shell with uniform volume charge density of -0.2 mC/m3 has inner and outer radii...

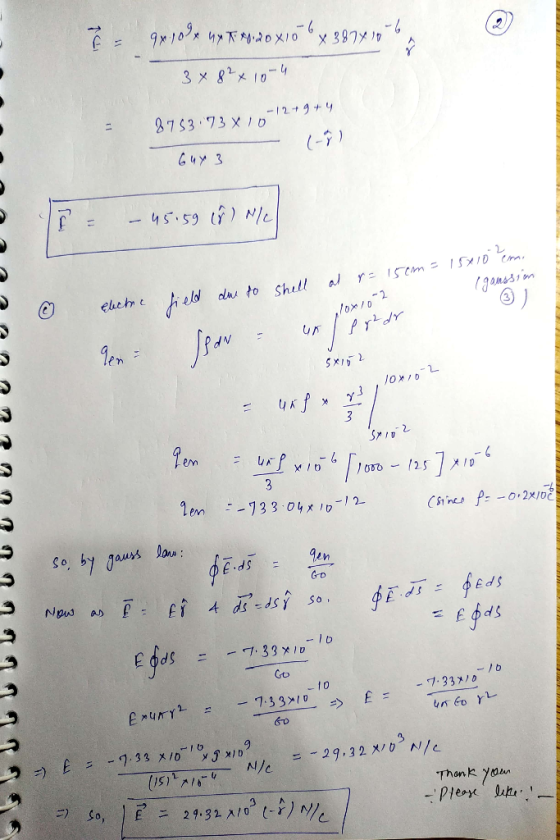

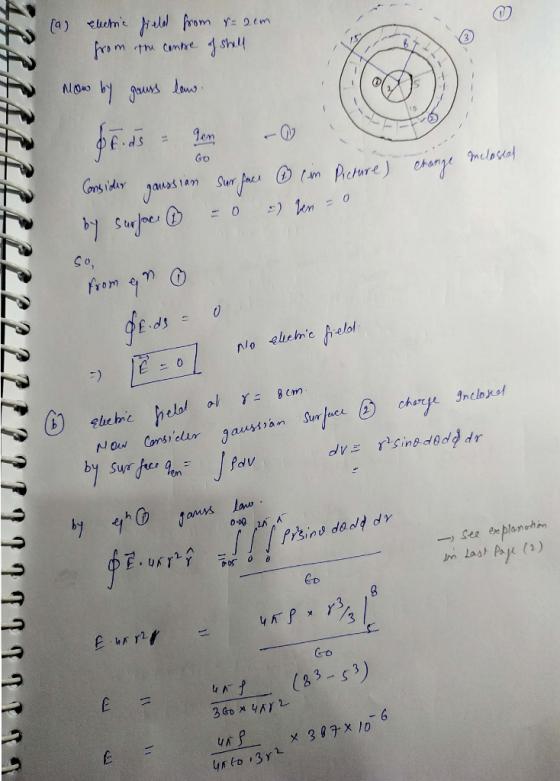

A spherical shell with uniform volume charge density of -0.2 mC/m3 has inner and outer radii equal to 5 cm and 10 cm, respectively. Find the electric field due to the shell for the distances 2 cm, 8 cm and 15 cm from the center of the shell
Homework Answers
Add Answer to:
A spherical shell with uniform volume charge density of -0.2
mC/m3 has inner and outer radii...
A spherical conducting shell has a net charge of +7.0 nC and inner and outer radii...
A spherical conducting shell has a net charge of +7.0 nC and inner and outer radii 10 cm and 25 cm respectively. A point charge with magnitude -2.0 nC is placed at the center of this conducting shell. Use Gauss's Law to find the magnitude and direction of the electric field of the charge configuration at a distance 6 cm from the center of the spherical shell.
A sphere of radius R1 = 0.255 m and uniform charge density -43.5 μC/m3 lies at the center of a neutral, spherical, conducting shell of inner and outer radii R2 = 0.568 m and R3 = 0.810 m,
A sphere of radius R1 = 0.255 m and uniform charge density -43.5
μC/m3 lies at the center of a neutral, spherical, conducting shell
of inner and outer radii R2 = 0.568 m and R3 = 0.810 m,
respectively. Find the surface charge density on:
The figure below shows a spherical shell with uniform volume charge density ρ = 2.00 nC/m3, inner radius a = 5.0 cm, and outer radius b = 2.60a
The figure below shows a spherical shell with uniform volume
charge density ρ = 2.00 nC/m3, inner radius a = 5.0 cm, and outer
radius b = 2.60a.What is the magnitude of the electric field at
the following radial distances:(a) r = 0:(b) r = a/2.00:(c) r = a:(d) r = 1.50a:(e) r = b:(f) r = 3.00b:
A uniformly charged spherical shell has inner and outer radii of 29.0 cm and 32.0 cm,...
A uniformly charged spherical shell has inner and outer radii of 29.0 cm and 32.0 cm, respectively. A point charge of -45.0 nC is located at the center of the spherical shell. A proton orbits around this arrangement just outside the spherical shell with a speed of 8.39 x 105 m/s. What is the volume charge density of the spherical shell? (Include the sign of the value in your answer.) -6.2E-12 What force supplies the needed centripetal force that keeps...
Figure 23-51 shows a spherical shell with uniform volume charge density ρ = 1.76 nC/m3, inner...
Figure 23-51 shows a spherical shell with uniform volume charge
density ρ = 1.76 nC/m3, inner radius a
= 11.0 cm, and outer radius b = 2.10a.
What is the magnitude of the electric field at the following
radial distances:
(a) r = 0:
0 N/C
(b) r = a/2.00:
0 N/C
(c) r = a:
0 N/C
(d) r = 1.50a:
______ N/C
(e) r = b:
______ N/C
(f) r = 3.00b:
_______N/C
Figure 23-51
A hollow sphere has a uniform volume charge density of 1.78 nC/m3. The inner radius is...
A hollow sphere has a uniform volume charge density of 1.78
nC/m3. The inner radius is a = 10.3 cm and the outer radius is b =
41.2 cm.
+4 +t1 +b+t A hollow sphere has a uniform volume charge density of 1.78 nC/m. The inner radius is a= 10.3 cm and the outer radius is b= 41.2 cm What is the magnitude of the electric field at 16.5 cm from the center of the sphere? What is the magnitude...
Chapter 23, Problem 052 The figure shows a spherical shell with uniform volume charge density ρ...
Chapter 23, Problem 052 The figure shows a spherical shell with uniform volume charge density ρ = 2.01 nC/m3, inner radius a = 9.50 cm, and outer radius b = 3.4a, what is the magnitude of the electric field at radial distances (a) r = 0; (b) r-a/2.00, (c) r = a, (d) r = 1.50a, (e) r = b, and (f) r-3.00b?
Consider a spherical shell of uniform volume charge density 1.0 x 106 C/m2. It has an...
Consider a spherical shell of uniform volume charge density 1.0 x 106 C/m2. It has an inner radius, a =10 cm, and an outer radius, b = 20 cm. Calculate the electric field due to the shell for a distance r= 15 cm. Select one: a 3.4 x 10-20 V/m b. 6.0 x 1014 V/m c. 1.26 x 10-6 N/C d. 13 x 10 V/m e 8.85 x 10-15 N/C
A hollow sphere has a uniform volume charge density of 3.97 nC/m3. The inner radius is...
A hollow sphere has a uniform volume charge density of 3.97
nC/m3. The inner radius is a = 15.6 cm and the outer radius is b =
78.0 cm.
What is the magnitude of the electric field at 26.5 cm from the
center of the sphere?
What is the magnitude of the electric field at 289 cm from the
center of the sphere?
A sphere of radius R1=0.345 m and uniform charge density 37.5 μC/m3 lies at the center...
A sphere of radius R1=0.345 m and uniform charge density 37.5 μC/m3 lies at the center of a neutral, spherical, conducting shell of inner and outer radii R2=0.563 m and R3=0.685 m, respectively. Find the surface charge density on the inner and outer surfaces of the shell.
The figure below shows a spherical shell with uniform volume
charge density ρ = 2.00 nC/m3, inner radius a = 5.0 cm, and outer
radius b = 2.60a.What is the magnitude of the electric field at
the following radial distances:(a) r = 0:(b) r = a/2.00:(c) r = a:(d) r = 1.50a:(e) r = b:(f) r = 3.00b:
A uniformly charged spherical shell has inner and outer radii of 29.0 cm and 32.0 cm, respectively. A point charge of -45.0 nC is located at the center of the spherical shell. A proton orbits around this arrangement just outside the spherical shell with a speed of 8.39 x 105 m/s. What is the volume charge density of the spherical shell? (Include the sign of the value in your answer.) -6.2E-12 What force supplies the needed centripetal force that keeps...
Figure 23-51 shows a spherical shell with uniform volume charge
density ρ = 1.76 nC/m3, inner radius a
= 11.0 cm, and outer radius b = 2.10a.
What is the magnitude of the electric field at the following
radial distances:
(a) r = 0:
0 N/C
(b) r = a/2.00:
0 N/C
(c) r = a:
0 N/C
(d) r = 1.50a:
______ N/C
(e) r = b:
______ N/C
(f) r = 3.00b:
_______N/C
Figure 23-51
A hollow sphere has a uniform volume charge density of 1.78
nC/m3. The inner radius is a = 10.3 cm and the outer radius is b =
41.2 cm.
+4 +t1 +b+t A hollow sphere has a uniform volume charge density of 1.78 nC/m. The inner radius is a= 10.3 cm and the outer radius is b= 41.2 cm What is the magnitude of the electric field at 16.5 cm from the center of the sphere? What is the magnitude...
Chapter 23, Problem 052 The figure shows a spherical shell with uniform volume charge density ρ = 2.01 nC/m3, inner radius a = 9.50 cm, and outer radius b = 3.4a, what is the magnitude of the electric field at radial distances (a) r = 0; (b) r-a/2.00, (c) r = a, (d) r = 1.50a, (e) r = b, and (f) r-3.00b?
Consider a spherical shell of uniform volume charge density 1.0 x 106 C/m2. It has an inner radius, a =10 cm, and an outer radius, b = 20 cm. Calculate the electric field due to the shell for a distance r= 15 cm. Select one: a 3.4 x 10-20 V/m b. 6.0 x 1014 V/m c. 1.26 x 10-6 N/C d. 13 x 10 V/m e 8.85 x 10-15 N/C
A hollow sphere has a uniform volume charge density of 3.97
nC/m3. The inner radius is a = 15.6 cm and the outer radius is b =
78.0 cm.
What is the magnitude of the electric field at 26.5 cm from the
center of the sphere?
What is the magnitude of the electric field at 289 cm from the
center of the sphere?
