Question

Create a function in MATLAB “rampseq”, which performs following operations:

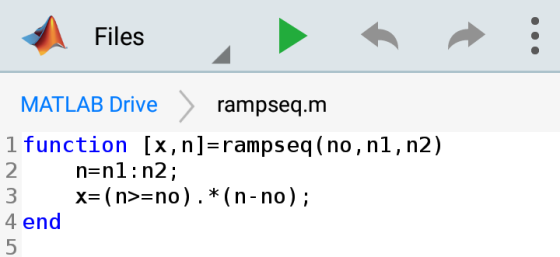

Function [x,n]=rampseq(n0,n1,n2)
• Takes three parameters (n0, n1, n2) as input, where ‘n1’ and ‘n2’ are lower and upper limits of naxis,
and ‘n0’ is the delay.
• Generates a ramp sequence using above mentioned three parameters.
• There should be two output arguments [x, n] of function ‘rampseq’, where ‘x’ is impulse
sequence and ‘n’ is its corresponding n-axis.

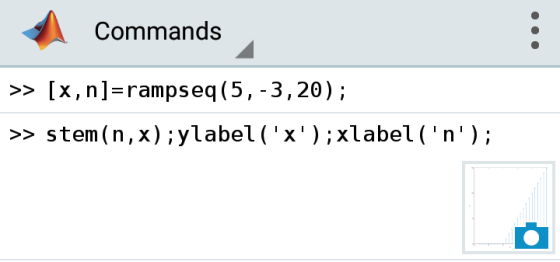

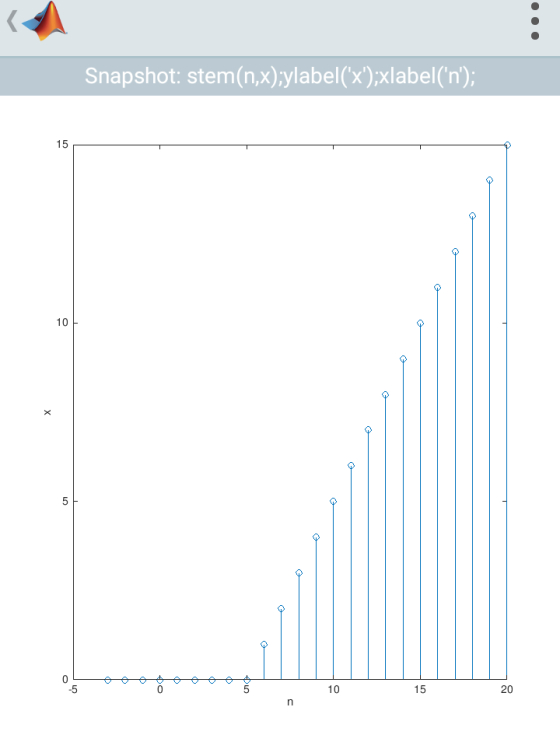

• Finally, plot ramp impulse ‘x’ against vector ‘n’.

Answer 1
