Problem 1: A lamp which is 10.5 cm tall is 3.7 m in front of a...

Problem 1: A lamp which is 10.5 cm tall is 3.7 m in front of a converging lens which has a focal length of 39.5 cm. Part (a) What is the image distance (in meters) for this lamp and lens combination (include sign if negative)? If a screen is placed at the image location found in (a), what will be observed on the screen? If the screen is moved slightly farther from the lens than the distance found in (a), what will be observed on the screen?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

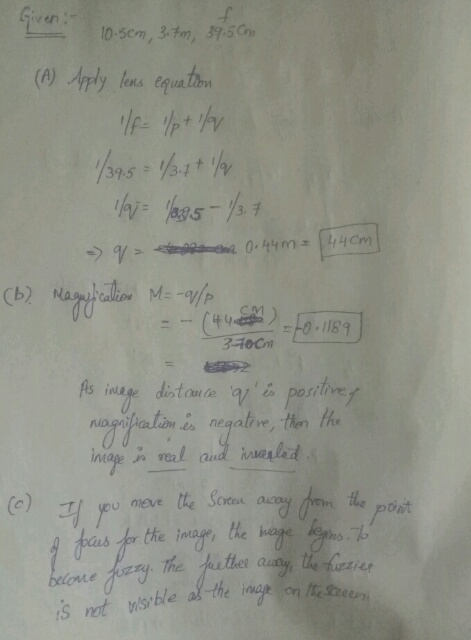

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Problem 1: A lamp which is 10.5 cm tall is 3.7 m in front of a...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An object 15 cm tall is placed 80 cm in front of a converging lens with...

    An object 15 cm tall is placed 80 cm in front of a converging lens with a focal length of 20 cm. a. find the image location b. what is the magnifications? c. what is the height of the image?

  • A (13.2) cm tall object is placed in front of a convex lens. As a result,...

    A (13.2) cm tall object is placed in front of a convex lens. As a result, an image is with a height of –(45.0) is produced on a screen placed (70.5) cm from the lens. Find the focal length of the lens. Give your answer in centimeters (cm) with the correct sign and with 3 significant figures.

  • Problem 3: An object of height 2.8 cm is placed 26 cm in front of a...

    Problem 3: An object of height 2.8 cm is placed 26 cm in front of a diverging lens of focal length 16 cm. Behind the diverging lens, and 11 cm from it, there is a converging lens of the same focal length. a) Find the location of the final image, in centimeters beyond the converging lens (such that a negative answer would indicate the final image is on the same side of the converging lens as the object). b) What...

  • A 4.5–cm–tall object is 28 cm in front of a converging lens with a focal length...

    A 4.5–cm–tall object is 28 cm in front of a converging lens with a focal length of 36 cm. Where is the image? Distance(cm)____

  • A converging lens has a focal length of 83.50 cm. A 16.0 cm tall object is...

    A converging lens has a focal length of 83.50 cm. A 16.0 cm tall object is located 185.0 cm in front of this lens. (a) What is the image distance? (c) What is the image height? Be sure to include proper algebraic sign.

  • (4%) Problem 18: An object of height 2.9 cm is placed 29 cm in front of...

    (4%) Problem 18: An object of height 2.9 cm is placed 29 cm in front of a diverging lens of focal length 15 cm. Behind the diverging lens, and 11 cm from it, there is a converging lens of the same focal length. 50% Part (a) Find the location of the final image, in centimeters beyond the converging lens. 50% Part (b) What is the magnification of the final image? Include its sign to indicate its orientation with respect to...

  • A 2.0 cm tall object is 15cm in front of a converging lens whose focal length...

    A 2.0 cm tall object is 15cm in front of a converging lens whose focal length is 20 cm. a. what is the image distance? b. what is the magnification? c. what is the height of the image?

  • An object 10 cm tall is placed 50 cm in front of a diverging lens with...

    An object 10 cm tall is placed 50 cm in front of a diverging lens with a focal length of 10 cm. a. find the image location b. what is the magnifications? c. what is the height of the image?

  • An object of height 3.6 cm is placed at 24 cm in front of a diverging...

    An object of height 3.6 cm is placed at 24 cm in front of a diverging lens of focal length, f = -18 cm. Behind the diverging lens, there is a converging lens of focal length, f = 18 cm. The distance between the lenses is 5 cm. In the next few steps, you will find the location and size of the final image. Where is the intermediate image formed by the first diverging lens? Image distance from first lens...

  • 1. A 1.0-cm-tall object is 85cm in front of a converging lens that has a 35cm...

    1. A 1.0-cm-tall object is 85cm in front of a converging lens that has a 35cm focal length. Calculate the image position and image height. 2. A 4.0-cm-tall object is 16cm in front of a diverging lens that has a -20cm focal length. Calculate the image position and image height. 3. A 4.0-cm-tall object is 14cm in front of a concave mirror that has a 25 cm focal length. Calculate the image position and image height.
