Two charges Q1 = 5x10-6 C and Q2 = 13x10-6 C are separated by a distance...

Two charges Q1 = 5x10-6 C and Q2 = 13x10-6 C are separated by a distance of 0.8m (Take Q2 to be located on the right hand side of Q1).

a. Calculate the net (i.e., total) force exerted by these two charges on a third charge Q3 = -3x10-6 C located halfway between Q1 and Q2.

b. Find the position at which Q3 must be placed so the net force on it (due to Q1 and Q2) is zero (i.e., calculate the distance x from Q1 to Q3).

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

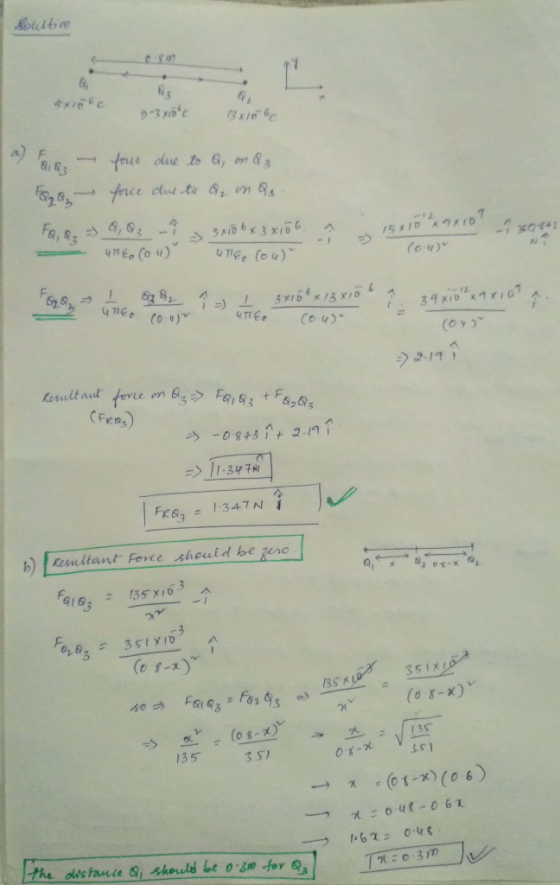

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Two charges Q1 = 5x10-6 C and Q2 = 13x10-6 C are separated by a distance...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Three charges, Q1, Q2, and Q3 are located in a straight line. The position of Q2...

    Three charges, Q1, Q2, and Q3 are located in a straight line. The position of Q2 is 0.290 m to the right of Q1. Q3 is located 0.158 m to the right of Q2. (a)Q1= 2.24·10-6 C, Q2= -2.84·10-6 C, and Q3= 3.33·10-6 C. Calculate the total force on Q2. Give with the plus sign for a force directed to the right. (b)Now the charges Q1= 2.24·10-6 C and Q2= -2.84·10-6 C are fixed at their positions, distance 0.290 m...

  • Coulomb's law for the magnitude of the force Fbetween two particles with charges Q and Q′separated...

    Coulomb's law for the magnitude of the force Fbetween two particles with charges Q and Q′separated by a distance d is |F|=(K|QQ′|)/d2, -----------> (side note: those are absolute bars on the QQs where K=1/(4πϵ0), and ϵ0=8.854×10−12C2/(N⋅m2) is the permittivity of free space. Consider two point charges located on the x axis: one charge, q1 = -10.0 nC , is located at x1 = -1.660 m ; the second charge, q2 = 35.5 nC ,is at the origin (x=0.0000). Question: What...

  • Two charged particles, with charges q1=q and q2=4q, are located on the x axis separated by...

    Two charged particles, with charges q1=q and q2=4q, are located on the x axis separated by a distance of 2.00cm . A third charged particle, with charge q3=q, is placed on the x axis such that the magnitude of the force that charge 1 exerts on charge 3 is equal to the force that charge 2 exerts on charge 3. Find the position of charge 3 when q = 2.00 nC . Assuming charge 1 is located at the origin...

  • Three Charges Three charges, Q1, Q2, and Q3 are located in a straight line. The position...

    Three Charges Three charges, Q1, Q2, and Q3 are located in a straight line. The position of Q2 is 0.246 m to the right of Q1. Q3 is located 0.147 m to the right of Q2. The force on Q2 due to its interaction with Q3 is directed to the... Left if the two charges have opposite signs. Left if the two charges are negative. Left if the two charges are positive Right if the two charges have opposite signs....

  • Coulomb's law for the magnitude of the force Fbetween two particles with charges  Q and  Q′separated by a...

    Coulomb's law for the magnitude of the force Fbetween two particles with charges  Q and  Q′separated by a distance d is |F|=K|QQ′|d2, where K=14πϵ0, and ϵ0=8.854×10−12C2/(N⋅m2) is the permittivity of free space. Consider two point charges located on the x axis: one charge, q1 = -10.0 nC , is located at x1 = -1.750 m ;the second charge, q2 = 32.5 nC , is at the origin (x=0.0000). What is the net force exerted by these two charges on a third charge...

  • Coulomb's law for the magnitude of the force Fbetween two particles with charges Q and Q′separated...

    Coulomb's law for the magnitude of the force Fbetween two particles with charges Q and Q′separated by a distance d is |F|=K|QQ′|d2, where K=14πϵ0, and ϵ0=8.854×10−12C2/(N⋅m2) is the permittivity of free space. Consider two point charges located on the x axis: one charge, q1 = -19.0 nC , is located at x1 = -1.715 m ; the second charge, q2 = 35.0 nC , is at the origin (x=0.0000). What is the net force exerted by these two charges on...

  • Two charges, q1 and q2, are placed a distance D apart (assume they are point charges)....

    Two charges, q1 and q2, are placed a distance D apart (assume they are point charges). A proton is then placed on the line that passes through both charges, and the net force exerted on the proton is zero. How far is the proton from q1?

  • Consider two point charges, q1 = +3x10-9 C and q2 = -2x10-9 C separated by a...

    Consider two point charges, q1 = +3x10-9 C and q2 = -2x10-9 C separated by a distance d = 6 m. (a) Find the magnitude of the electrical force (F) of interaction between the charges. (b) Find the magnitude and direction of the electric field (E) at the mid-point between charges. Answer: 1.5x10-9 N, 5 N/C (i).

  • Three charges: Q1, Q2, and Q3 are located on a straight line. The charge Q3 =...

    Three charges: Q1, Q2, and Q3 are located on a straight line. The charge Q3 = 6.75e-6 C is movable along this line. The charges Q1 = -8.75e-6 C and Q2 = 2.80e-6 C are fixed at their positions, with Q2 at the distance d = 0.436 m to the right of Q1. For what position of Q3 (with respect to Q1) is the net force on Q3 - due to Q1 and Q2 - equal zero? Convention: use the...

  • What is the net force exerted by these two charges on a third charge q3 =...

    What is the net force exerted by these two charges on a third charge q3 = 45.0 nC placed between q1 and q2 at x3 = -1.105 m ? Forces in a Three-Charge System Coulomb's law for the magnitude of the force F between two particles with charges Q and Q' separated by a distance d is where K 1 and ATeo eo 8.854 x 10 12 C/(N ma) s the permittivity of free space. Consider two point charges located...
