Question

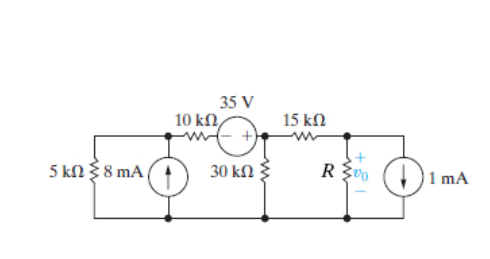

Part A) Make a series of source transformations to find the voltage v0" role="presentation" style="display: inline-table; line-height: normal; word-spacing: normal; overflow-wrap: normal; float: none; direction: ltr; max-width: none; max-height: none; min-width: 0px; min-height: 0px; border: 0px; padding: 0px; margin: 0px; position: relative;"> in the circuit in (Figure 1). Suppose that RR" role="presentation" style="display: inline-table; line-height: normal; word-spacing: normal; overflow-wrap: normal; float: none; direction: ltr; max-width: none; max-height: none; min-width: 0px; min-height: 0px; border: 0px; padding: 0px; margin: 0px; position: relative;">= 26 kΩ" role="presentation" style="display: inline-table; line-height: normal; font-size: 13px; word-spacing: normal; overflow-wrap: normal; float: none; direction: ltr; max-width: none; max-height: none; min-width: 0px; min-height: 0px; border: 0px; padding: 0px; margin: 0px; position: relative;">kΩ .

Part B) Find the voltagev0" role="presentation" style="display: inline-table; line-height: normal; word-spacing: normal; overflow-wrap: normal; float: none; direction: ltr; max-width: none; max-height: none; min-width: 0px; min-height: 0px; border: 0px; padding: 0px; margin: 0px; position: relative;">v0 in the circuit using the mesh-current method.

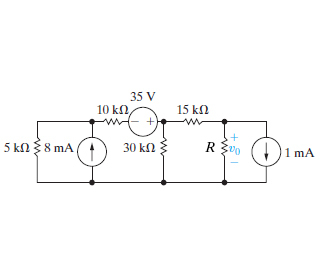

Figure_P04.58.jpgcircut 1.png

0 0
Add a comment Improve this question Transcribed image text
Request Professional Answer

Request Answer!

We need at least 10 more requests to produce the answer.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)


All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
Make a series of source transformations to find the voltage v0 in the circuit in (Figure 1). Suppose that R = 26 kΩ .
