The input power to a 480V, 3 phase, 6 pole, 50 Hz induction motor is 75kW...

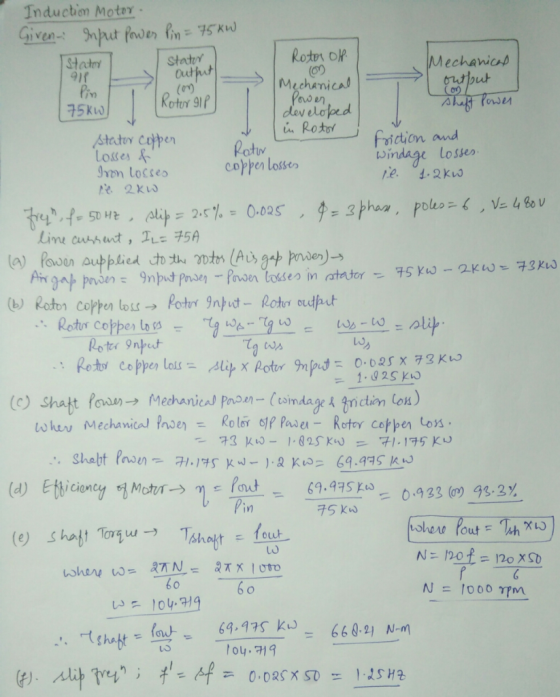

The input power to a 480V, 3 phase, 6 pole, 50 Hz induction motor is 75kW with a line current of 75A and runs at a slip of 2.5%. If the stator core loss is 2 kW, windage and friction loss is 1.2 kW, and the stator resistance per phase is 0.16 ohm. Calculate:
a. Power supplied to the rotor (Air gap power)
b. Rotor copper loss
c. Shaft power
d. Efficiency of the motor
e. Shaft torque
f What is the slip frequency
Homework Answers
Add Answer to:
The input power to a 480V, 3 phase, 6 pole, 50 Hz induction
motor is 75kW...
6. A 3-phase 2.2 kV 25 Hz squirrel cage induction motor draws a line current of...
6. A 3-phase 2.2 kV 25 Hz squirrel cage induction motor draws a line current of 224 A and a total power of 777 kW when operating at full load. The full-load speed is 245 rpm. The stator is wye connected and has an effective resistance per phase of 0.125 Ω. The stator iron (core) loss is 8.88 kW; friction and windage losses are 4.54 kW. Calculate at full-load conditions: b. power supplied to the rotor, a. the power factor;...
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected induction motor draws 25...
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected
induction motor draws 25 A at a power factor of 0.9 lagging. Core
loss is 900 W, stator copper loss is 1100W, friction and winding
losses are 300 W, and stray loss is neglected. The machine shaft
rotates at 1738 rpm. Calculate the air gap power and output load
torque
- [Induction Motor - 15 points) A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor...
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected...
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor draws 25 A at a power factor of 0.9 lagging. The core loss is 900 W, stator copper loss is 1100 W, friction and windage loss is 300 W, and stray loss is neglected. The machine shaft rotates at a speed of 1738 rpm. Calculate the air gap power and output load torque.
A 3-phase, 208 V, 60 Hz, 30 hp, four-pole induction motor
A 3-phase, 208 V, 60 Hz, 30 hp, four-pole induction motor has the following equivalent circuit parameters. R1 = 0.2 Ω, , , Xm = 12Ω.The rotational loss is 500 W. For a slip of 5%, calculate (a) The motor speed in rpm and radians per sec (b) The current drawn by the motor from the power supply (c) The stator cu-loss (d) The air gap power (e) The rotor cu-loss (f) The shaft power (g)The developed torque and the shaft torque (h) The efficiency of the motor Use...
Question 3. (25 Marks) Parameters of a three-phase, 400 v, 50 Hz, 4-pole, star-connected induction motor...
Question 3. (25 Marks) Parameters of a three-phase, 400 v, 50 Hz, 4-pole, star-connected induction motor are as follows: bl The sum of friction, windage and stray losses are 0.15 kW. The motor is running at 1440 rpm. (a) Calculate the input line current (b) Calculate the stator copper loss and rotor copper loss. (c) Calculate the output power and efficiency.
Image: Question: ron los windage and friction loss mechanical power shaft active power to stator P....
Image:
Question:
ron los windage and friction loss mechanical power shaft active power to stator P. active power supplied to rotor TO A 6 pole, 3 phase induction motor is connected to a 60Hz 3 phase AC Source. At the full lead them has the following losses: copper losses in the stator, 1.2 kw. iron losses in the stator: 0.5 kW, copper losses in the rotor: IkW, windage and friction losses: 1.5 kW. If the motor draws a total of...
Q10. A three phase, 100-hp, 2400V, 6-pole, 50 Hz induction motor is tested, with the following...
Q10. A three phase, 100-hp, 2400V, 6-pole, 50 Hz induction motor is tested, with the following test results obtained: No-load test (at 50 Hz) Block-rotor test (at 12.5 Hz) 420 35 11500 Signal Voltage (V) 2400 Current (A) 10 Power (W) 4200 Stator resistance is measured at 1.75 Ω per phase. a) Find the parameters of the equivalent circuit b) At a slip of 0.25, calculate the power and torque output and the efficiency of this motor. Ans. : a)...
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and...
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and friction losses-51 kW following characteristics 4. iron losses in the stator-39 kW 5. locked rotor current at 6000 V-1800 A 6. active power to the stator with rotor locked 2207 kw Calculate under full-load voltage locked-rotor conditions a. Reactive power absorbed by the motor b. FR losses in the stator...
Q4. A six-pole, three-phase, 60 Hz induction motor is operating at a speed of 1164 rev...
Q4. A six-pole, three-phase, 60 Hz induction motor is operating at a speed of 1164 rev min. The input power at this speed is 33 kW and the stator copper loss is 1200 W. Find a) Slip b Airgap power c Rotor copper loss d) Developed torque e) Developed horsepower f) If the rotational losses are 500 W, find the output torque and horsepower
[1. The shaft output of a three-phase, 60 Hz induction motor is 100 HP. The friction...
[1. The shaft output of a three-phase, 60 Hz induction motor is 100 HP. The friction and windage losses are 900 W, the stator core loss is 4200 W, and the stator copper loss is 2700 W. If the slip is 3.75%, what is the efficiency of the motor.
6. A 3-phase 2.2 kV 25 Hz squirrel cage induction motor draws a line current of 224 A and a total power of 777 kW when operating at full load. The full-load speed is 245 rpm. The stator is wye connected and has an effective resistance per phase of 0.125 Ω. The stator iron (core) loss is 8.88 kW; friction and windage losses are 4.54 kW. Calculate at full-load conditions: b. power supplied to the rotor, a. the power factor;...
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected
induction motor draws 25 A at a power factor of 0.9 lagging. Core
loss is 900 W, stator copper loss is 1100W, friction and winding
losses are 300 W, and stray loss is neglected. The machine shaft
rotates at 1738 rpm. Calculate the air gap power and output load
torque
- [Induction Motor - 15 points) A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor...
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor draws 25 A at a power factor of 0.9 lagging. The core loss is 900 W, stator copper loss is 1100 W, friction and windage loss is 300 W, and stray loss is neglected. The machine shaft rotates at a speed of 1738 rpm. Calculate the air gap power and output load torque.
Question 3. (25 Marks) Parameters of a three-phase, 400 v, 50 Hz, 4-pole, star-connected induction motor are as follows: bl The sum of friction, windage and stray losses are 0.15 kW. The motor is running at 1440 rpm. (a) Calculate the input line current (b) Calculate the stator copper loss and rotor copper loss. (c) Calculate the output power and efficiency.
Image:
Question:
ron los windage and friction loss mechanical power shaft active power to stator P. active power supplied to rotor TO A 6 pole, 3 phase induction motor is connected to a 60Hz 3 phase AC Source. At the full lead them has the following losses: copper losses in the stator, 1.2 kw. iron losses in the stator: 0.5 kW, copper losses in the rotor: IkW, windage and friction losses: 1.5 kW. If the motor draws a total of...
Q10. A three phase, 100-hp, 2400V, 6-pole, 50 Hz induction motor is tested, with the following test results obtained: No-load test (at 50 Hz) Block-rotor test (at 12.5 Hz) 420 35 11500 Signal Voltage (V) 2400 Current (A) 10 Power (W) 4200 Stator resistance is measured at 1.75 Ω per phase. a) Find the parameters of the equivalent circuit b) At a slip of 0.25, calculate the power and torque output and the efficiency of this motor. Ans. : a)...
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and friction losses-51 kW following characteristics 4. iron losses in the stator-39 kW 5. locked rotor current at 6000 V-1800 A 6. active power to the stator with rotor locked 2207 kw Calculate under full-load voltage locked-rotor conditions a. Reactive power absorbed by the motor b. FR losses in the stator...
Q4. A six-pole, three-phase, 60 Hz induction motor is operating at a speed of 1164 rev min. The input power at this speed is 33 kW and the stator copper loss is 1200 W. Find a) Slip b Airgap power c Rotor copper loss d) Developed torque e) Developed horsepower f) If the rotational losses are 500 W, find the output torque and horsepower
[1. The shaft output of a three-phase, 60 Hz induction motor is 100 HP. The friction and windage losses are 900 W, the stator core loss is 4200 W, and the stator copper loss is 2700 W. If the slip is 3.75%, what is the efficiency of the motor.
