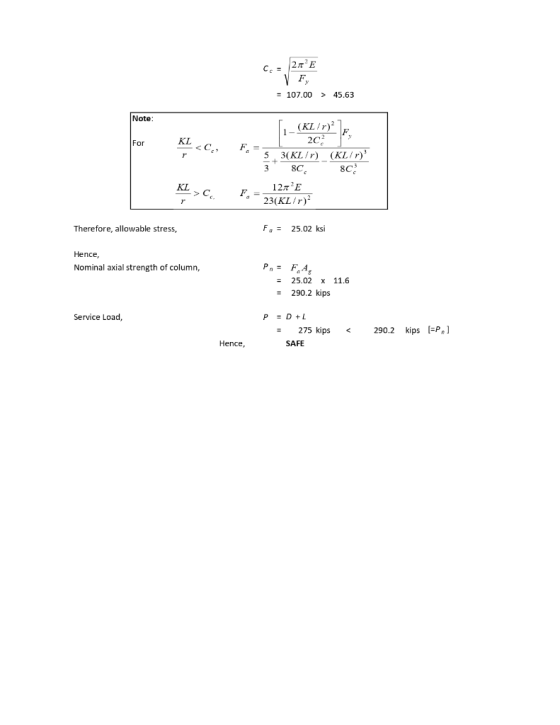

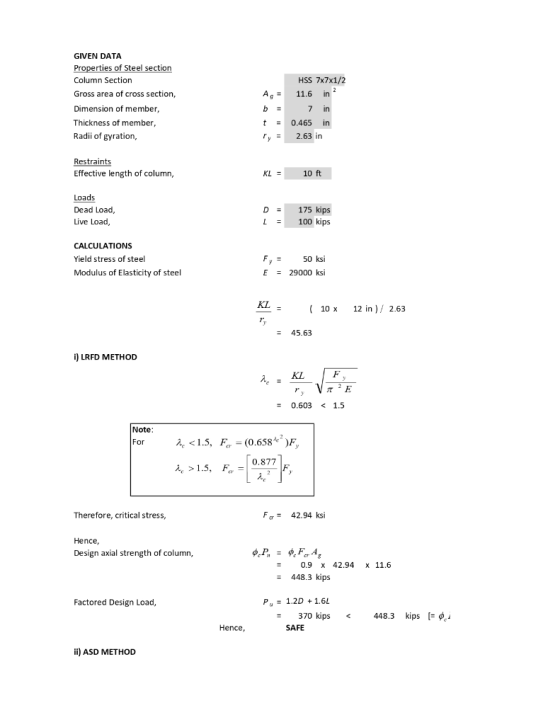

An A300 Gr. C HSS7x7x1/2 is used as a column to support a dead load of...
Homework Answers
Add Answer to:
An
A300 Gr. C HSS7x7x1/2 is used as a column to support a dead load of...
The load on the bracket plate consists of a service dead load of 22 kips and a service live load ...
The load on the bracket plate consists of a service dead load of 22 kips and a service live load of 44 kips. What diameter Group A bearing-type bolt is required? Use an elastic analysis and assume that the bearing strengths of the bracket and the column flange are adequate. a. Use LRFD. b. Use ASD 1/2 3" 3" 3" 3" 1%', 3 determine the required size if slip is permitted. The 10-kip load consists of 2.5 kips of service...
5.14-3 Design a base plate for a W12 × 87 column supporting a service dead load...
5.14-3 Design a base plate for a W12 × 87 column supporting a service dead load of 65 kips and a service live load of 195 kips. The support will be a 16-inch × 16-inch concrete pier. Use A36 steel and = 3.5 ksi. a. Use LRFD b. Use ASD
Problem 2. Design and select an ASTM A992 (Fy" 50 ksi) W-shape column to carry an...
Problem 2. Design and select an ASTM A992 (Fy" 50 ksi) W-shape column to carry an axial dead load of 140 kips and live lond of 420 kips. The column is 30 feet long, and is pinned top and bottom in both axes. In addition, the column is laterally braced about the y-y axis (local weak/minor axis of the section) and torsionally braced at the midpoint. Limit the column size to a nominal 14 in. shape, that is W14 shape...
Select the lightest section to carry a compressive load of 200 kips dead load and 625 kips live l...
Select the lightest section to carry a compressive load of 200 kips dead load and 625 kips live load. The effective length KL is 25 feet. Use AISC Table 4-1 for (a) Gr. 50 steel, (b) Gr. 65 steel, and (c) Gr. 70 steel
Select the lightest section to carry a compressive load of 200 kips dead load and 625 kips live load. The effective length KL is 25 feet. Use AISC Table 4-1 for (a) Gr. 50 steel, (b)...
Select the lightest section to carry a compressive load of 200 kips dead load and 625...
Select the lightest section to carry a compressive load of 200 kips dead load and 625 kips live load. The effective length KL is 25 feet. Use AISC Table 4-1 for (a) Gr. 50 steel, (b) Gr. 65 steel, and (c) Gr. 70 steel
11. (10 points) Check to determine if a W14x159 used as a column can support an...
11. (10 points) Check to determine if a W14x159 used as a column can support an axial dead load of 250k and an axial live load of 1000k if the length of the column is 14 feet and the value of G for Joint A has been determined to be 0.8. Use the LRFD Design Method and assume that the columns are bending about their y axis as shown. (Hint: The answer is in the Manual) W14x159 Fixed Base at...
Please refer AISC 15th edition 2. Select the lightest W shape to carry a uniformly distributed dead load of 0.5 kips...
Please refer AISC 15th edition
2. Select the lightest W shape to carry a uniformly distributed dead load of 0.5 kips/ft and a live load of 1.0 kips/ft on a simply supported span of 42 ft. Adequate lateral support is provided. The live load deflection is limited to 360, Use A572 Grade 50 steel and LRFD. (credit weight 30)
2. Design Wide flange column section only of A992 steel to serve as a pinned- end main member column 30 ft long to carry an axial compression loads in a braced structure, based on AISC LRFD metho...
2. Design Wide flange column section only of A992 steel to serve as a pinned- end main member column 30 ft long to carry an axial compression loads in a braced structure, based on AISC LRFD method. The dead load is 50 kips A992 13-0" and live load is 70 kips. The member has strong axis direction supported at 17ft height from the bottom of the column. Dead load is 20 kips and live load is 40 kips. Assume the...
A column in the upper story of a building is subjected to a compressive load from the following s...
A column in the upper story of a building is subjected to a compressive load from the following sources: . dead load = 30.8 kips, . occupancy live load = 1.7 kips, (Assume this is from a live load of less than 100 psf, and it is not a garage or place of public assembly.) . roof live load = 18.7 kips, and snow load 19.7 kips. If the load and resistance factor design (LRFD) method is used, what is...
assume 7/8 Select the lightest angular to support a live load LL=60 Kips and a dead...
assume 7/8
Select the lightest angular to support a live load LL=60 Kips and a dead load DL= 30 Kips. The angular will be connected to a gusset plate through bolts. Use at least three bolts in one line and 2 in, as the distance between bolts in the load direction. Use A992 Gr 50. The length of the angular is 24 ft. (ignore block shear) Angular >1 Plate
The load on the bracket plate consists of a service dead load of 22 kips and a service live load of 44 kips. What diameter Group A bearing-type bolt is required? Use an elastic analysis and assume that the bearing strengths of the bracket and the column flange are adequate. a. Use LRFD. b. Use ASD 1/2 3" 3" 3" 3" 1%', 3 determine the required size if slip is permitted. The 10-kip load consists of 2.5 kips of service...
5.14-3 Design a base plate for a W12 × 87 column supporting a service dead load of 65 kips and a service live load of 195 kips. The support will be a 16-inch × 16-inch concrete pier. Use A36 steel and = 3.5 ksi. a. Use LRFD b. Use ASD
Problem 2. Design and select an ASTM A992 (Fy" 50 ksi) W-shape column to carry an axial dead load of 140 kips and live lond of 420 kips. The column is 30 feet long, and is pinned top and bottom in both axes. In addition, the column is laterally braced about the y-y axis (local weak/minor axis of the section) and torsionally braced at the midpoint. Limit the column size to a nominal 14 in. shape, that is W14 shape...
Select the lightest section to carry a compressive load of 200 kips dead load and 625 kips live load. The effective length KL is 25 feet. Use AISC Table 4-1 for (a) Gr. 50 steel, (b) Gr. 65 steel, and (c) Gr. 70 steel
Select the lightest section to carry a compressive load of 200 kips dead load and 625 kips live load. The effective length KL is 25 feet. Use AISC Table 4-1 for (a) Gr. 50 steel, (b)...
Select the lightest section to carry a compressive load of 200 kips dead load and 625 kips live load. The effective length KL is 25 feet. Use AISC Table 4-1 for (a) Gr. 50 steel, (b) Gr. 65 steel, and (c) Gr. 70 steel
11. (10 points) Check to determine if a W14x159 used as a column can support an axial dead load of 250k and an axial live load of 1000k if the length of the column is 14 feet and the value of G for Joint A has been determined to be 0.8. Use the LRFD Design Method and assume that the columns are bending about their y axis as shown. (Hint: The answer is in the Manual) W14x159 Fixed Base at...
Please refer AISC 15th edition
2. Select the lightest W shape to carry a uniformly distributed dead load of 0.5 kips/ft and a live load of 1.0 kips/ft on a simply supported span of 42 ft. Adequate lateral support is provided. The live load deflection is limited to 360, Use A572 Grade 50 steel and LRFD. (credit weight 30)
2. Design Wide flange column section only of A992 steel to serve as a pinned- end main member column 30 ft long to carry an axial compression loads in a braced structure, based on AISC LRFD method. The dead load is 50 kips A992 13-0" and live load is 70 kips. The member has strong axis direction supported at 17ft height from the bottom of the column. Dead load is 20 kips and live load is 40 kips. Assume the...
A column in the upper story of a building is subjected to a compressive load from the following sources: . dead load = 30.8 kips, . occupancy live load = 1.7 kips, (Assume this is from a live load of less than 100 psf, and it is not a garage or place of public assembly.) . roof live load = 18.7 kips, and snow load 19.7 kips. If the load and resistance factor design (LRFD) method is used, what is...
assume 7/8
Select the lightest angular to support a live load LL=60 Kips and a dead load DL= 30 Kips. The angular will be connected to a gusset plate through bolts. Use at least three bolts in one line and 2 in, as the distance between bolts in the load direction. Use A992 Gr 50. The length of the angular is 24 ft. (ignore block shear) Angular >1 Plate
