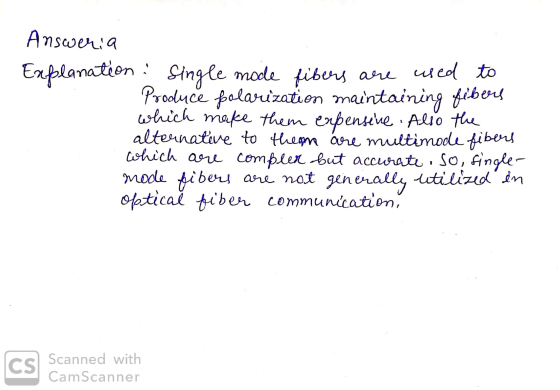

The fibers mostly not used nowadays for optical fiber communication system are a. Single mode fibers...
Homework Answers
Add Answer to:
The fibers mostly not used nowadays for optical fiber
communication system are
a. Single mode fibers...
A fiber which is referred as non-dispersive shifted fiber is a. Coaxial cables b. Standard single...
A fiber which is referred as non-dispersive shifted fiber is a. Coaxial cables b. Standard single mode fibers c. Standard multimode fibers d. Non zero dispersion shifted fibers
1. A fiber that supports many optical wavegui modes 2. Ration of the speed of light...
1. A fiber that supports many optical wavegui modes 2. Ration of the speed of light in free space to its speed in a given material 3. Light extending from 680 nm up to the wavelenghts of the microwaves 3 Matching questions A. Stretching of received pulse width because of multiple paths taken by the light Graded-index Fiber 2Single-Mode Fiber B. Fiber cables with core diameters of about 7-10 um light follows a single path 3. Pulse Dispersion C. the...
1) What are the material and diameter of the single mode fiber and multi-mode fiber, respectively?...
1) What are the material and diameter of the single mode fiber and multi-mode fiber, respectively? 2) Why is it much easier to couple light into a multimode fiber than a single-mode fiber? Then when should we use single-mode fibers instead of multi-mode fibers? 3) To maximize the coupling efficiency, should the NA of the lens be greater or smaller than that of the fiber? why? 6) What is fluorescence? What is two-photon absorption? What is two-photon excitation fluorescence microscopy?
The following statement applies to multimode graded-index fibers: a. Multimode graded-index fibers produce less modal pulse...
The following statement applies to multimode graded-index fibers: a. Multimode graded-index fibers produce less modal pulse distortion than multimode step-index fibers b. Multimode graded-index fibers produce more modal pulse distortion than multimode step-index fibers c. Multimode graded-index fibers produce equal modal pulse distortion than multimode step-index fibers
Please answer 4 question, tks 2.Explain the concept of total internal reflection and how it is important in optical comm...
Please answer 4 question, tks 2.Explain the concept of total internal reflection and how it is important in optical communications. 3.Discuss the differences between single mode, multimode and graded index fibres. 6.What is meant by attenuation in optical fibers? 7.State the two ways in which energy is lost along the length of an optical fiber.
Will Rate! For design of a 10 Gigabits per second fiber optical communications system using a...
Will Rate! For design of a 10 Gigabits per second fiber optical communications system using a single mode semiconductor laser at 1550nm wavelength, a photodetector, and a single mode optical communication fiber. The spectral line-width of the semiconductor laser is 10 pm. The Fiber length is 150km. a. What is the dispersion requirement for the optical fiber? [Hint: find out the requirement for dispersion coefficient at 1550nm] b. What is the requirement for the response time of the photoconductor?
Consider the optical fiber made of a single core. The index of refraction of the material...
Consider the optical fiber made of a single core. The index of
refraction of the material of the optical fiber is 1.3, and the
index of refraction of the air is 1.0. Light strikes at one end and
it passes through the interface as shown . The angle of incidence
θ1 is:
A.) 420
B.) 560
C.) 400
D.) 500
10 e air Section of an optical fiber
Question 1 Select the correct statement(s) regarding fiber optic cable. a. The core and cladding within...
Question 1 Select the correct statement(s) regarding fiber optic cable. a. The core and cladding within a fiber optic cable must have the same refractive index in order to achieve TIR (Total Internal Reflection) b. Only single mode fiber (SMF) can be constructed with either a “step” or “graded index” core c. Mulimode optical fibers (MMF) are vulnerable to modal dispersion d. All statements are correct Question 2 Using a direct sequence spread spectrum (DSSS) technique spreads a narrow band channel...
need Answers for c & d only. Everthing else is good. need answers for d &...
need Answers for c & d only. Everthing else is good.
need answers for d & e only. Not c. Thank you
11:14 AM Wed Jun 19 71% Problem1: Fiber Optics different optical loss (attenuation) sources a) Provide six extrinsic sources) of an optical fiber system. b) Sketch and briefly explain the Total Internal Reflection (TIR) phenomenon. c) What is the difference between a step index fiber and a graded index fiber? (Hint: Consider the ray tracing of different modes...
(2 points) Optical fibers are made of glass, where light is trapped inside the fiber by...
(2 points) Optical fibers are made of glass, where light is trapped inside the fiber by total internal reflection. This example is not a fiber geometry and doesn't include the gradations in refractive index that are used, but still illustrates the point of total internal reflection. Suppose you have a piece of glass, with light incident from the glass side toward an air interface. The refractive index of the glass is 1.45. What is the critical angle where all light...
1. A fiber that supports many optical wavegui modes 2. Ration of the speed of light in free space to its speed in a given material 3. Light extending from 680 nm up to the wavelenghts of the microwaves 3 Matching questions A. Stretching of received pulse width because of multiple paths taken by the light Graded-index Fiber 2Single-Mode Fiber B. Fiber cables with core diameters of about 7-10 um light follows a single path 3. Pulse Dispersion C. the...
Consider the optical fiber made of a single core. The index of
refraction of the material of the optical fiber is 1.3, and the
index of refraction of the air is 1.0. Light strikes at one end and
it passes through the interface as shown . The angle of incidence
θ1 is:
A.) 420
B.) 560
C.) 400
D.) 500
10 e air Section of an optical fiber
need Answers for c & d only. Everthing else is good.
need answers for d & e only. Not c. Thank you
11:14 AM Wed Jun 19 71% Problem1: Fiber Optics different optical loss (attenuation) sources a) Provide six extrinsic sources) of an optical fiber system. b) Sketch and briefly explain the Total Internal Reflection (TIR) phenomenon. c) What is the difference between a step index fiber and a graded index fiber? (Hint: Consider the ray tracing of different modes...
(2 points) Optical fibers are made of glass, where light is trapped inside the fiber by total internal reflection. This example is not a fiber geometry and doesn't include the gradations in refractive index that are used, but still illustrates the point of total internal reflection. Suppose you have a piece of glass, with light incident from the glass side toward an air interface. The refractive index of the glass is 1.45. What is the critical angle where all light...
