A mass of 0.75kg is oscillating while attached to a spring with a constant of 20N/m....

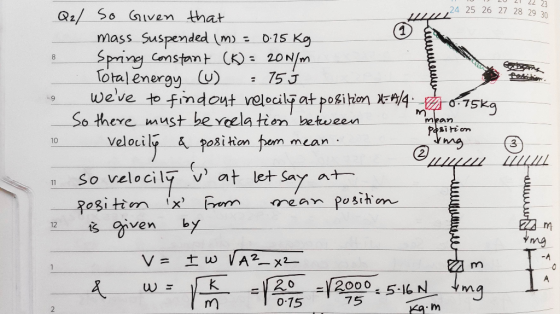

A mass of 0.75kg is oscillating while attached to a spring with a constant of 20N/m. The total energy in the system is 75J.

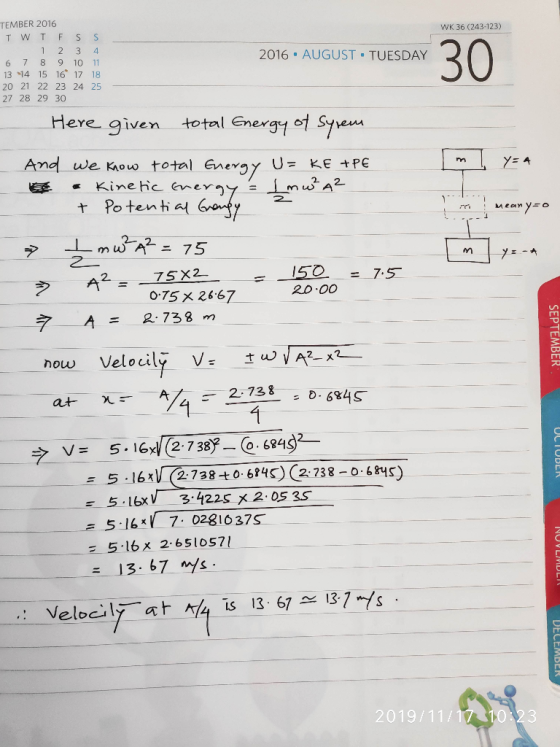

What is the velocity of the mass when it is at a position of x=A/4? (Answer: 13.7m/s)
