Find the Factor of Safety and Critical Height for both seepage and submerged conditions of a...

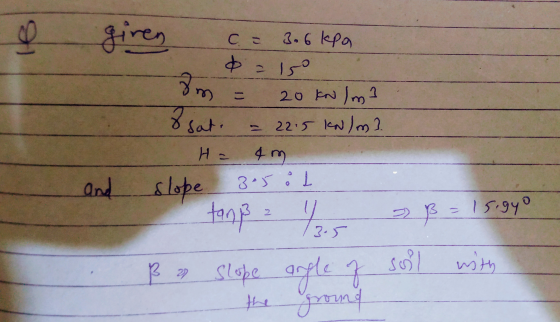

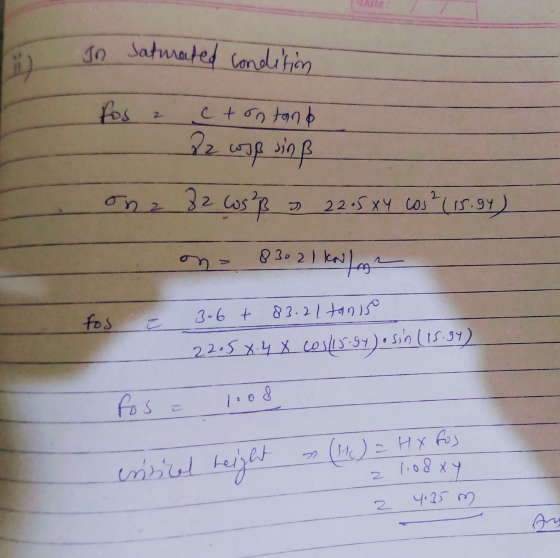

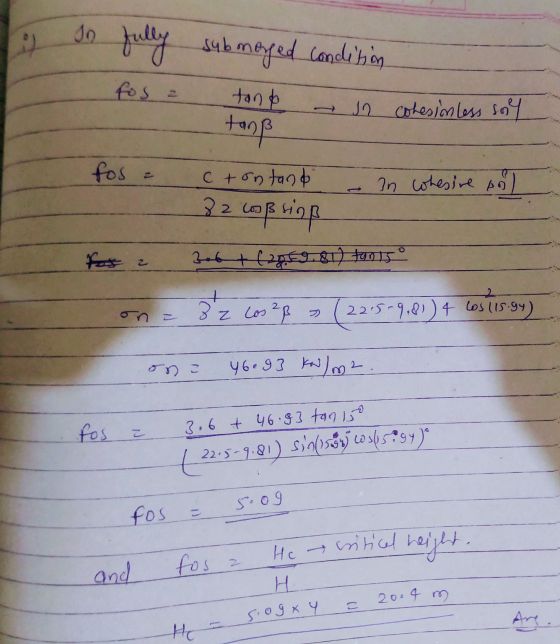

Find the Factor of Safety and Critical Height for both seepage and submerged conditions of a 3.5:1 slope with the following parameters:
c = 3.6 kPa
? = 15°
γm= 20 kN/m3
γsat = 22.5 kN/m3
H = 4 m
Homework Answers
Add Answer to:
Find the Factor of Safety and Critical Height for both seepage
and submerged conditions of a...
. A long natural slope in fissured overconsolidated clay is inclined to the horizontal with an...
. A long natural slope in fissured overconsolidated clay is inclined to the horizontal with an angle =15 o . The saturated unit weight of clay is 18 kN/m3 . The water table is at the surface and the seepage is roughly parallel to the slope. A slip has developed on a plane parallel to the surface at the depth of 4.0 m. Find the factor of safety along the slip plane, for the following two cases: a. Peak shear...
1. Using the concepts covered in earth pressure theories (not Taylor's chart), the critical depth of...
1. Using the concepts covered in earth pressure theories (not Taylor's chart), the critical depth of vertical cut in a saturated cohesive soil with c = 15.5kPa and y = 18 kN/m3 will be? a) 0.86 m c) 6.88 m b) 3.44 m d) 1.72 m condition: 2. The upstream and downstream slopes of an earth dam is critical for the a) reservoir partial pool c) steady seepage b) sudden drawdown d) earthquake 3. In the simplified Bishop's method of...
Question 1 A slope with angle B -45, H = 9 m, cohesion c =20 kN/m²,...
Question 1 A slope with angle B -45, H = 9 m, cohesion c =20 kN/m², 0=25, y = 17 kN/m is to be constructed; Find; 1- The critical height of the slope. 2- The factor of safety so that Fc = FØ =F (Hint: Taylors stability number) Question 2 A slope of height H=12 m, ß = 50°, r=18 kN/m', c=30 kN/m², Ø = 25° Find the factor of safety using; 1- Ordinary method of slices. 2- Bishop's simplified...
A 6 m deep slope is going to be excavated in a deep soil deposit. The...
A 6 m deep slope is going to be excavated in a deep soil
deposit. The geometry of the slope is shown in
the following figure. Assume. The soil has the following
properties:
t = 20 kN/m3, cu = 20 kPa, = 5o
Water table is well below the toe of the embankment.
(a) Calculate the slope batter angle, , for which slope failure
would occur.
(b) Assume a slope batter angle of ranging from 40o to 60o...
