An insulated 3.3 cm spherical conductor has a total load of 29 nC. It is connected...

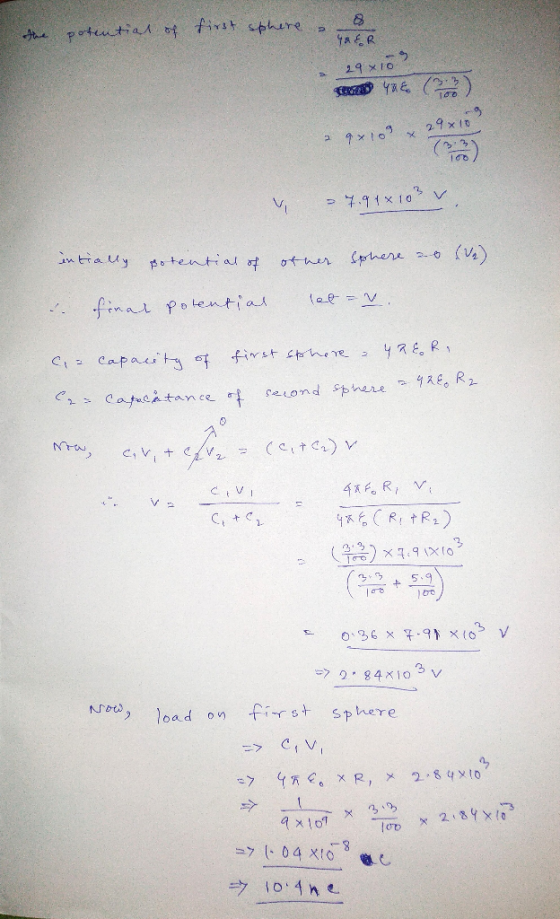

An insulated 3.3 cm spherical conductor has a total load of 29 nC. It is connected to another 5.9 cm radius conductive sphere, initially discharged, using a long conductive wire. After a sufficient period of time for the loads to be distributed in the two conductors, what is the load (in nC) that the first sphere will have?
Homework Answers
Add Answer to:
An insulated 3.3 cm spherical conductor has a total load of 29
nC. It is connected...
A solid spherical conductor of radius 15 cm has a charge Q 6.5 nC on it....
A solid spherical conductor of radius 15 cm has a charge Q 6.5 nC on it. A second, initially uncharged, spherical conductor of radius 10 cm is moved toward the first until they touch and is then moved far away from it (a) How much charge is there on the second sphere after the two spheres have been separated? 1. 3.2 nC 2. 2.6 nC 3. 4.3 nC 4, 03.9 nC 5, 2.2 nC 1o points (b) Calculate the common...
Q1) A spherical conductor (radius = 1.0 cm) with a charge of 2.0 pC is within...
Q1) A spherical conductor (radius = 1.0 cm) with a charge of 2.0 pC is within a concentric hollow spherical conductor (inner radius = 3.0 cm, outer radius = 4.0 cm) which has a total charge of -3.0 pC. What is the magnitude of the electric field 2.0 cm from the center of these conductors. Q2)A charge is uniformly distributed along the entire x-axis. If each 20 cm length of the x-axis carries 2.0 nC of charge. What is the...
QUESTION 3 A spherical capacitor contains a charge of 3.3 nC when connected to a potential...
QUESTION 3 A spherical capacitor contains a charge of 3.3 nC when connected to a potential difference of 234 V. If its plates are separated by vacuum and the inner radius of the outer shell is 4.9 cm, calculate the radius of the inner sphere. (Give your answer in decimal using cm as unit)
a charge is placed on a spherical conductor of radius r1. this sphere is then connected...
a charge is placed on a spherical conductor of radius r1. this sphere is then connected to a distant sphere of radius r2 (not wqual to r1) by aconducting wire. after the charges on the spheres are in equilibrium
A hollow spherical conductor with a 5.2-cm radius has a surface charge of 6.7 nC. What...
A hollow spherical conductor with a 5.2-cm radius has a surface charge of 6.7 nC. What is the potential at the center of the sphere?
Two spherical conductors are separated by a distance much larger than either of their radii. Sphere...
Two spherical conductors are separated by a distance much larger than either of their radii. Sphere A has a radius of 46.5 cm and a net charge of -95.5 nC, whereas sphere B, which is initially neutral, has a radius of 94.4 cm. The two spheres are then connected by a thin metal wire. What is the charge on sphere B after equilibrium has been reached? charge on sphere B: -31.52 nc
Two spherical conductors of radii 11.0 cm and 15.0 cm are connected by a long thin...
Two spherical conductors of radii 11.0 cm and 15.0 cm are connected by a long thin conducting wire. After reaching a steady state, the spheres have charges q1 and q2, respectively. If the wire is now cut, and the spheres are placed such that the center-to-center distance between them is 28.0 cm, the spheres repel each other with a force of 2.00 N. Remember: The force between charged spheres depends on the center to center distance. (a) What are q1...
A thin spherical shell has radius 25 cm and a charge 8 nC distributed uniformly over...
A thin spherical shell has radius 25 cm and a charge 8 nC distributed uniformly over its surface. What is the potential at the center of the sphere?
A spherical capacitor contains a charge of 3.40 nC when connected to a potential difference of...
A spherical capacitor contains a charge of 3.40 nC when connected to a potential difference of 200.0 V. Its plates are separated by vacuum and the inner radius of the outer shell is 5.00 cm. Part A For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of A spherical capacitor. Calculate the capacitance. Express your answer in picofarads. IVO ASO ? C = pF Submit Previous Answers Request Answer X Incorrect; Try Again; 29...
A solid conducting sphere of radius 3.2 cm has a charge of 29 nC distributed uniformly...
A solid conducting sphere of radius 3.2 cm has a charge of 29 nC distributed uniformly over its surface. Let A be a point 1.3 cm from the center of the sphere, S be a point on the surface of the sphere, and B be a point 6.6 cm from the center of the sphere. What are the electric potential differences (a)VS – VB and (b)VA – VB?
A solid spherical conductor of radius 15 cm has a charge Q 6.5 nC on it. A second, initially uncharged, spherical conductor of radius 10 cm is moved toward the first until they touch and is then moved far away from it (a) How much charge is there on the second sphere after the two spheres have been separated? 1. 3.2 nC 2. 2.6 nC 3. 4.3 nC 4, 03.9 nC 5, 2.2 nC 1o points (b) Calculate the common...
QUESTION 3 A spherical capacitor contains a charge of 3.3 nC when connected to a potential difference of 234 V. If its plates are separated by vacuum and the inner radius of the outer shell is 4.9 cm, calculate the radius of the inner sphere. (Give your answer in decimal using cm as unit)
Two spherical conductors are separated by a distance much larger than either of their radii. Sphere A has a radius of 46.5 cm and a net charge of -95.5 nC, whereas sphere B, which is initially neutral, has a radius of 94.4 cm. The two spheres are then connected by a thin metal wire. What is the charge on sphere B after equilibrium has been reached? charge on sphere B: -31.52 nc
A spherical capacitor contains a charge of 3.40 nC when connected to a potential difference of 200.0 V. Its plates are separated by vacuum and the inner radius of the outer shell is 5.00 cm. Part A For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of A spherical capacitor. Calculate the capacitance. Express your answer in picofarads. IVO ASO ? C = pF Submit Previous Answers Request Answer X Incorrect; Try Again; 29...
