if the input signal power is 1 W, calculate the variance of the real and imaginary...

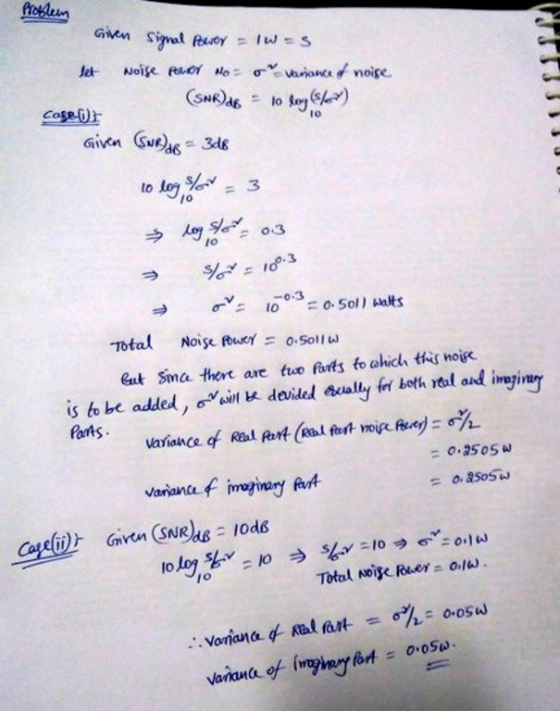

if the input signal power is 1 W, calculate the variance of the
real and imaginary parts of the Gaussian noise that needs to be
added to produce: SNR = 3 dB and 10 dB (for BPSK).
Homework Answers
Add Answer to:
if the input signal power is 1 W, calculate the variance of the
real and imaginary...
