Question

1. Starting with an empty binary search tree, insert each of the following keys and rotate it to the root in the specified order:

   6   1   18   7   15
2.

3. Starting with an empty red-black binary search tree, insert the following keys in order::

   12   5   23   9   19   2   21   18   7

   Show the tree immediately after you insert each key, and after each time you deal with one of the book's cases 1, 2, or 3 (that is, if dealing with one case leads to another, show the additional case as a separate step). You can rotate and recolor as part of a single step if you want; you don't need to draw the results separately unless it helps you.

Answer 1

Step 1: Insert keys 6 & 1

Rotate to the Root

Step 2: Insert key 18

Rotate to the Root

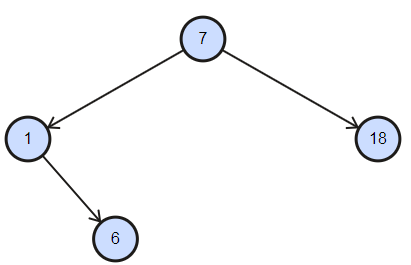

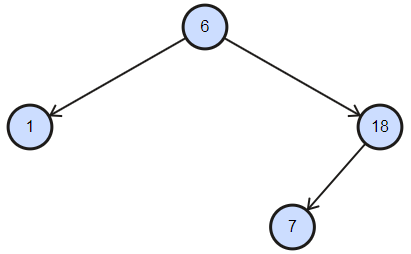

Step 3: Insert key 7

Rotate to the Root

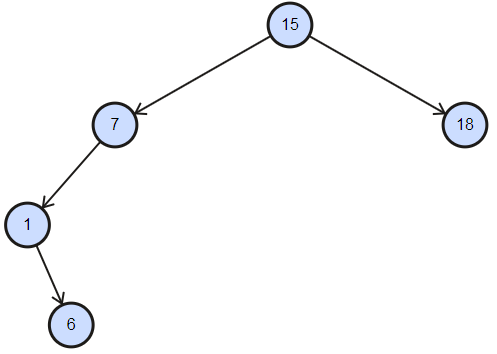

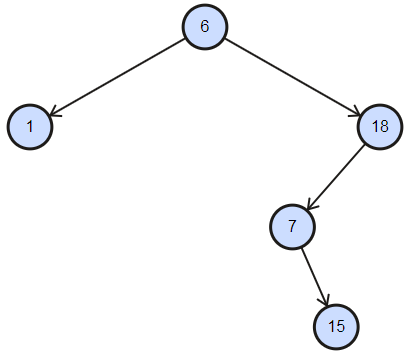

Step 4: Insert key 15

Rotate to the Root



Which is Required Binary Search Tree

Red-black binary search tree

Step 1: Insert keys 12 & 5

Step 2: Insert key 23

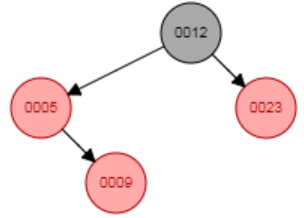

Step 3: Insert key 9

Node and parent are both red Uncle of node is red push blackness down from grandparent

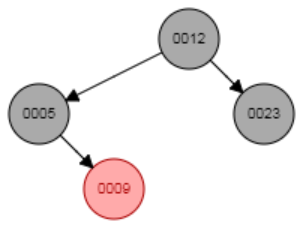

Root of the tree is Red.Color it black

Step 4: Insert key 19

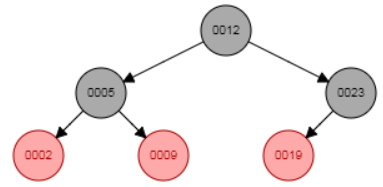

Step 5: Insert key 2

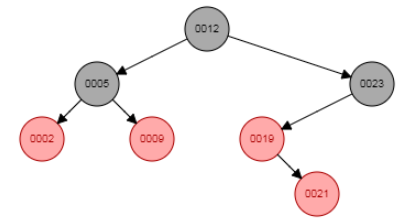

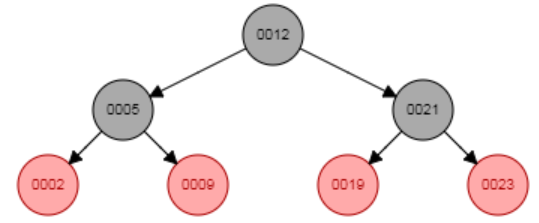

Step 6: Insert key 21

Node and parent are both red Node is right child, parent is left child so perform Single Rotate left

Node and parent are both red Node is left child, parent is left child can fix Extra redness by perform Single Rotate Right

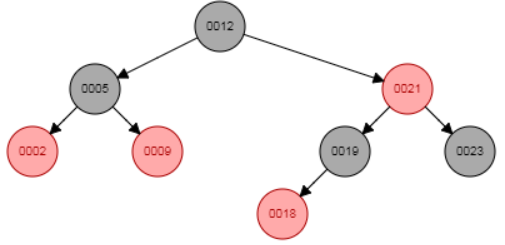

Step 7: Insert key 18

Node and parent are both red Uncle of node is red push blackness down from grandparent

Step 8: Insert key 7

Node and parent are both red Uncle of node is red push blackness down from grandparent

Which is Required Red-black binary search tree
