Consider the LTI system described by the following impulse response: (a) h(n) = 2(0.5)n u(n). Determine:...

Consider the LTI system described by the following impulse response: (a) h(n) = 2(0.5)n u(n). Determine: (i) The system function representation; (ii) the difference-equation representation (Note: this is just terminology that refers to expressing the input and output time-domain signals in the form of an equation. E.g., what we did when we went over the equations for block diagrams); (iii) The pole-zero plot, sketched by hand; and (iv) the output y(n) if the input is x(n) = (0.25)n u(n) [10 points]

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

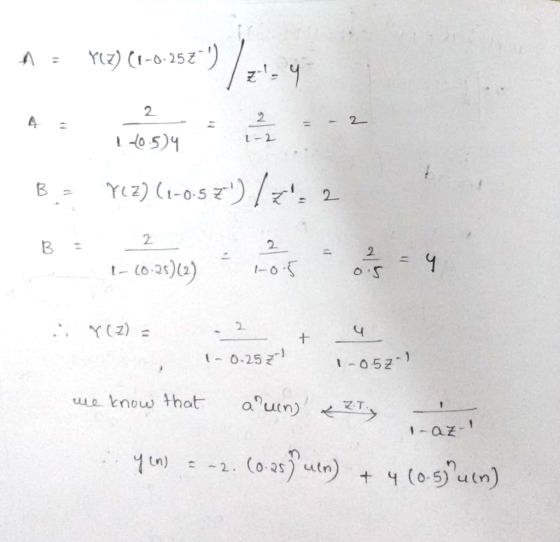

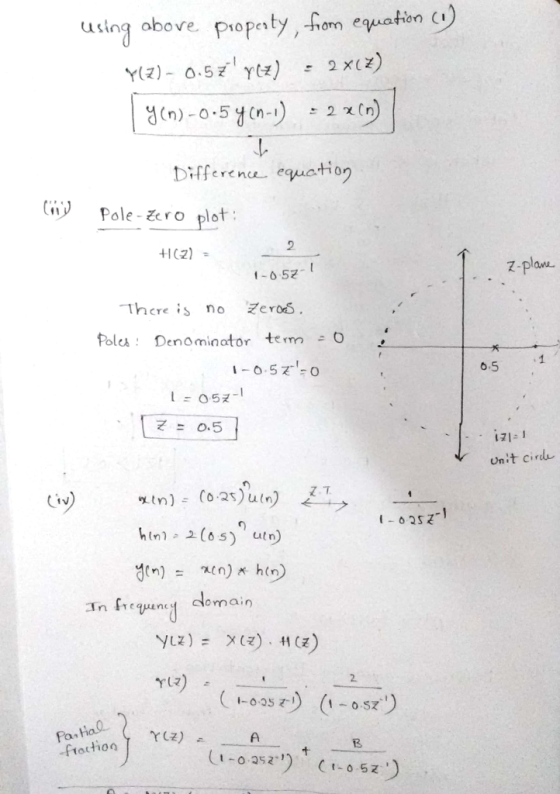

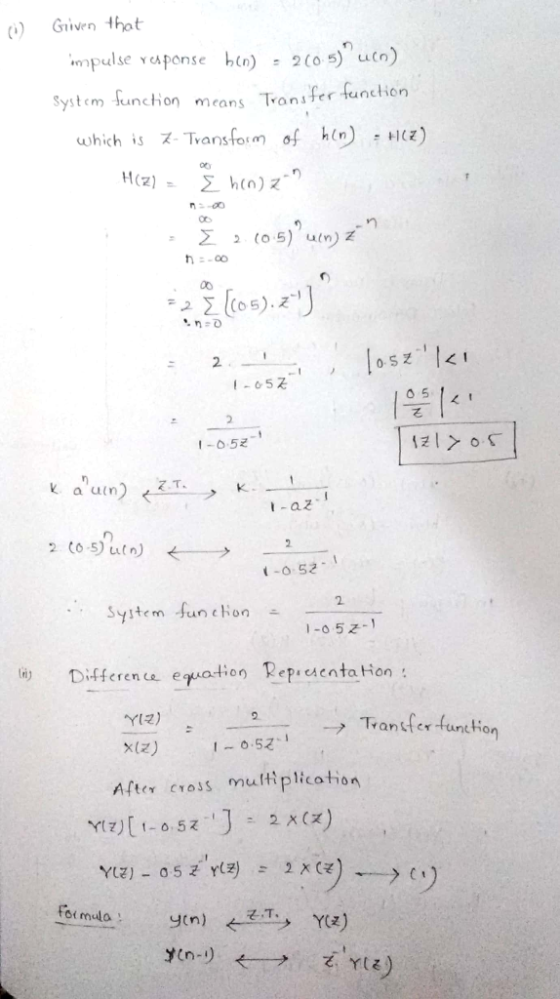

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Consider the LTI system described by the following impulse response: (a) h(n) = 2(0.5)n u(n). Determine:...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • For the LTI system described by the following impulse response:

    For the LTI system described by the following impulse response: \(h(n)=n\left(\frac{1}{3}\right)^{n} u(n)+\left(-\frac{1}{4}\right)^{n} u(n)\)Determine the following:1) The system function representation,2) The Difference equation representation3) The pole-zero plot4) the output \(y(n)\) if the input \(x(n)\) is: \(x(n)=\left(\frac{1}{4}\right)^{n} u(n)\)

  • A linear time invariant system has an impulse response given by h[n] = 2(-0.5)" u[n] –...

    A linear time invariant system has an impulse response given by h[n] = 2(-0.5)" u[n] – 3(0.5)2º u[n] where u[n] is the unit step function. a) Find the z-domain transfer function H(2). b) Draw pole-zero plot of the system and indicate the region of convergence. c) is the system stable? Explain. d) is the system causal? Explain. e) Find the unit step response s[n] of the system, that is, the response to the unit step input. f) Provide a linear...

  • 1. An LTI system has an impulse response h[n] for which thez transform is a. Plot...

    1. An LTI system has an impulse response h[n] for which thez transform is a. Plot the pole-zero pattern for H(z). b. Using the fact that signals of the form z are eigenfunctions of LTI systems, determine the system output for all n if the input x [n] is given by 72 I3(2)

  • For a causal LTI discrete-time system described by the difference equation:

    For a causal LTI discrete-time system described by the difference equation: y[n] + y[n – 1] = x[n] a) Find the transfer function H(z).b) Find poles and zeros and then mark them on the z-plane (pole-zero plot). Is this system BIBO? c) Find its impulse response h[n]. d) Draw the z-domain block diagram (using the unit delay block z-1) of the discrete-time system. e) Find the output y[n] for input x[n] = 10 u[n] if all initial conditions are 0.

  • Given a zero-state LTI system whose impulse response h(t) = u(t) u(t-2), if the input of...

    Given a zero-state LTI system whose impulse response h(t) = u(t) u(t-2), if the input of the system is r(t), find the system equation which relates the input to the output y(t) 4. (20 points) If a causal signal's s-domain representation is given as X (s) = (s+ 2)(s2 +2s + 5) (a) find all the poles and zero of the function. 2 1 52243 orr

  • CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n)...

    CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n) = [1 2 1] for 0 <n<2. If the input to the system is x(n) = u(n)-un-2) where u(n) is the unit-step, calculate the output of the system y(n) analytically. Check your answer using the "conv" function in MATLAB. 5. Consider an LTI system with an impulse response h(n) = u(n) where u(n) is the unit-step. (a) If the input to the system is...

  • Determine the impulse response h[n] of the LTI system described by the difference equation

    Determine the impulse response h[n] of the LTI system described by the difference equationy[n] - 0.35y[n-1] = x[n]

  • 6. [10!] An LTI system has an impulse response hin] for which the z-transform is Homework#6,...

    6. [10!] An LTI system has an impulse response hin] for which the z-transform is Homework#6, Ve216 Spring 2018 ue (a) [5] Plot the pole-zero pattern for H(z). (b) [5!] Using the fact that signals of the form 2" are eigenfunctions of LTI systems, determin the system output for all n if the input r[n] is

  • Consider an LTI system with the impulse response h(t) = e- . Is the system casual?...

    Consider an LTI system with the impulse response h(t) = e- . Is the system casual? Explain. Find and plot the output s(t) given that the system input is x(t) = u(t). Note that s(t) in this case is commonly known as the step response of the system. If the input is x(t) = u(t)-u(t-T). Express the output y(t) as a function of s(t). Also, explicitly write the output y(t) as a function of t. a) b) c)

  • Consider a LTI system with impulse response h[n] = u[n]*a^n, where |a| < 1. a) Determine...

    Consider a LTI system with impulse response h[n] = u[n]*a^n, where |a| < 1. a) Determine the frequency response of the system. b) Find the magnitude response and the phase response, given a = 1/2. No plots. c) Consider a LTI system whose impulse response h1[n] is a time-shifted version of h[n], i.e., h1[n] = h[n − n0]. Compute the frequency response H1(e^(jΩ)), and represent H1(e^(jΩ)) in terms of H(e^(jΩ)).
