Question

Exercise 11.1 Simulink
Implement the following function in Simulink:
y = 5t² + 4t + 2
1. Using one Clock block, three Constants, two Multipliers, and a Sum.
2. Using one Clock block, three Constants, a Mux block, an Fcn block, a Scope
block, and two To Workspace blocks. The scope block should give a plot of y
versus t. Also, create a MATLAB program that constructs a table of y versus t
in the Command window.
3. Using one Constant and two Integrators.

Answer 1

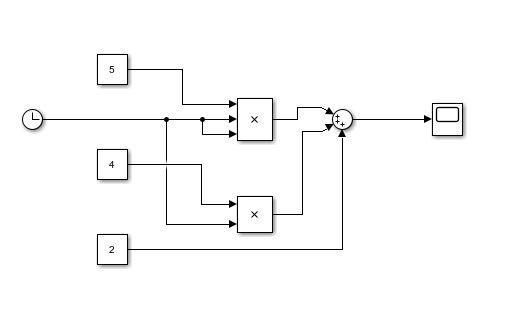

1):

output:

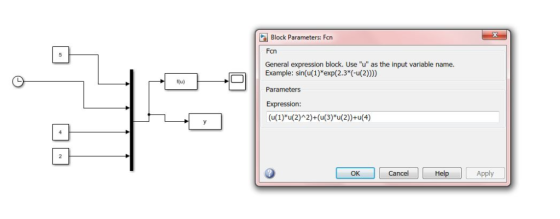

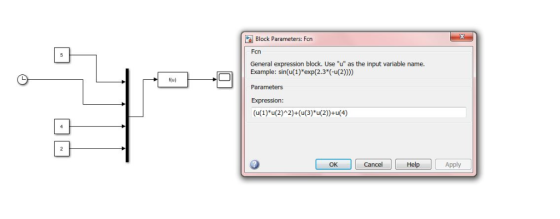

2):

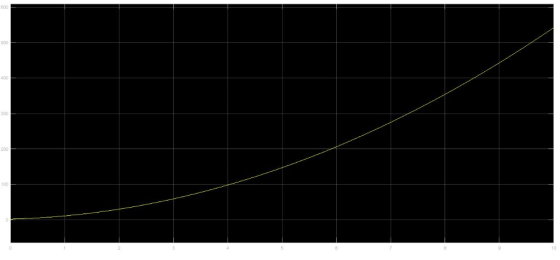

output:
