2. A double-heterojunction InGaAsP LED emitting at a peak wavelength of 1310 nm has radiative recombination...

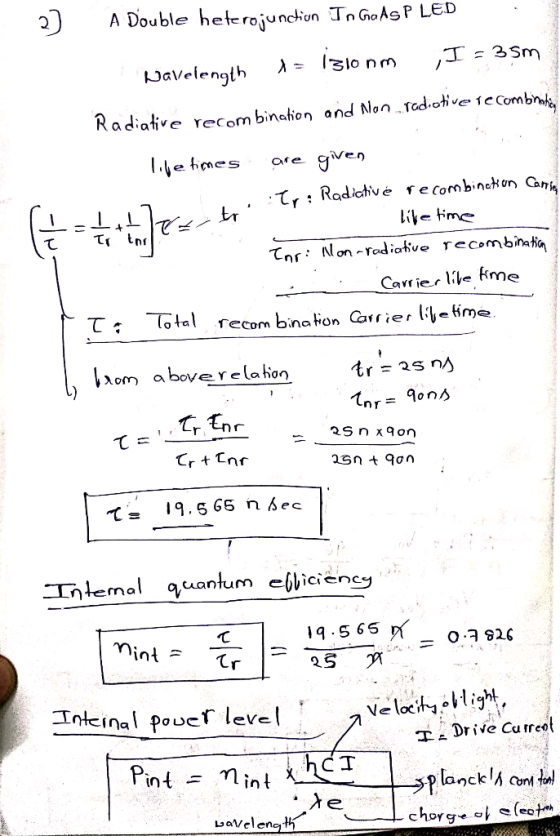

2. A double-heterojunction InGaAsP LED emitting at a peak wavelength of 1310 nm has radiative recombination times of 25 and 90 ns, respectively. The drive current is 35 mA

(a) Find the internal quantum efficiency and the internal power level.

(b) If the refractive index of the light source material is n =3.5, find the power emitted from the device

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

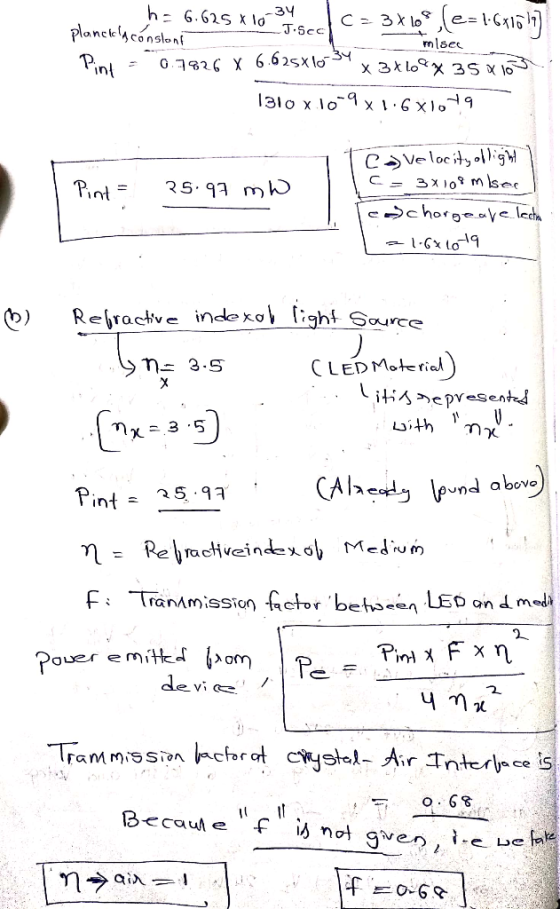

i just refer from textbook for transmission factor ,

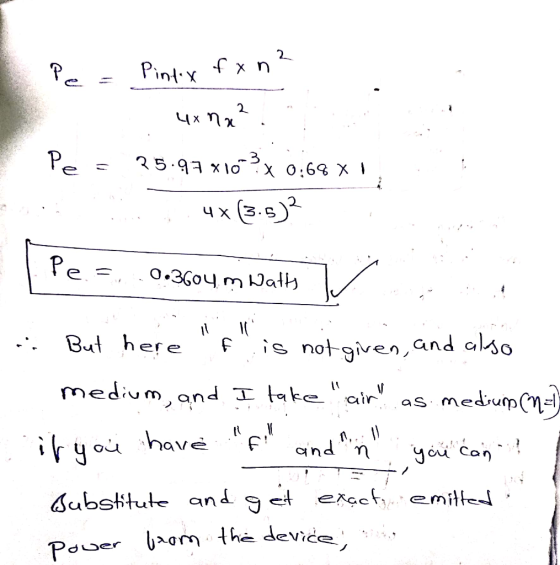

If you have transmission factor and refractive index of medium ,you can substitute at that variables at power emitted from the device

If you have doubt at any step please comment below

Add a comment
