Question

Design project about solar charger for mobiles

Design project about solar charger for mobiles
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

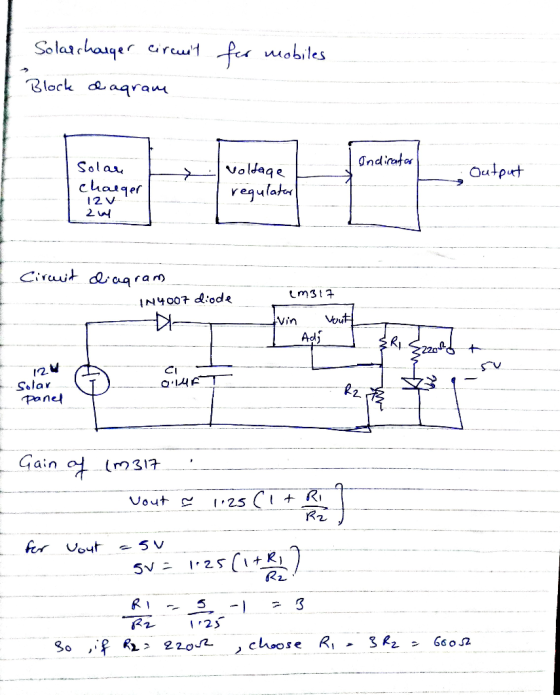

Answer #1

Kindly uovote if you find the answer helpful

0 0
Add a comment
