Assembly language is AS11 for the 68HC11 Draw a flowchart and then write and test a...
Assembly language is AS11 for the 68HC11
Draw a flowchart and then write and test a program to add the contents of memory locations $2500, $2501, and $2502, and save the result in $2503
Homework Answers
Answer :- The code has been written below-
LDAA $2500 ; A = value at address 0x2500
ADDA $2501 ; A = A + value at location $2501
ADDA $2502 ; A = A + value at location $2502
STAA $2503 ; keep the sum value present in A to the address 0x2503

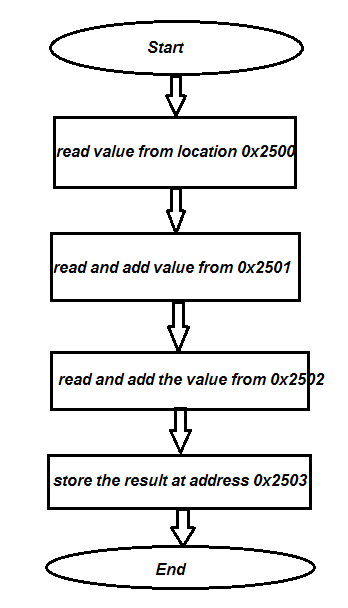

The flow chart has been shown below-
Add Answer to:
Assembly language is AS11 for the 68HC11
Draw a flowchart and then write and test a...
Write a program in assembly language that loads register R2 with the word in memory location...
Write a program in assembly language that loads register R2 with the word in memory location which is 10 bytes above the address in R0; and loads register R3 with the word in memory location which is 10 bytes below the address in R1. Your program must compare the two numbers in R2 and R3. If number in R2 is less than or equal to the number in R3 it must add the two numbers and save the result in...
3. Write a program in assembly language that reads a number from the keyboard and displays...
3. Write a program in assembly language that reads a number from the keyboard and displays it on the screen. 4. Write a program in assembly language to ask two digits from the user, store the digits in the EAX and EBX register, respectively, add the values, store the result in a memory location 'res' and finally display the result.
Write an assembly language program (using MC6800 instruction set) which will do the following: We are going to add two n...
Write an assembly language program (using MC6800 instruction set) which will do the following: We are going to add two numbers 0x4AC0EA (addend) and 0x661B93 (augend). The three byte addend is to be stored in locations $0100 through $0102 while the augend is to be stored in locations $0103 through $0105. The three byte result must be stored in locations $0106 through $0108.
this is assembly language for HCS12 / 9S12 4. Consider the following assembly-language program. Starting values:...
this is assembly language for HCS12 / 9S12
4. Consider the following assembly-language program. Starting values: [A] = $60, [B] = $80, [$C300] = $20, [$C301] = $40 (Hint: [$C300) means "contents of memory location $C300".) $C300 $C301 ADDA LDAB SBA BEO STAA STAB WAI X1 $1301 $C300 X1: ; "WAI" basically means "stop" What values are in A, B, memory location $C300, and memory location $C301 when the program finishes? [A] = — [B]= _ [$C300] = - [$C301)...
Draw a flowchart for a conditional loop that will decrement a counter from one hundred to...

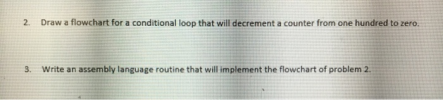

Draw a flowchart for a conditional loop that will decrement a counter from one hundred to zero. 2. Write an assembly language routine that will implement the flowchart of problem 2 3.
