3) A mass of 5 kg is resting on a horizontal, frictionless surface. Force 1 is...

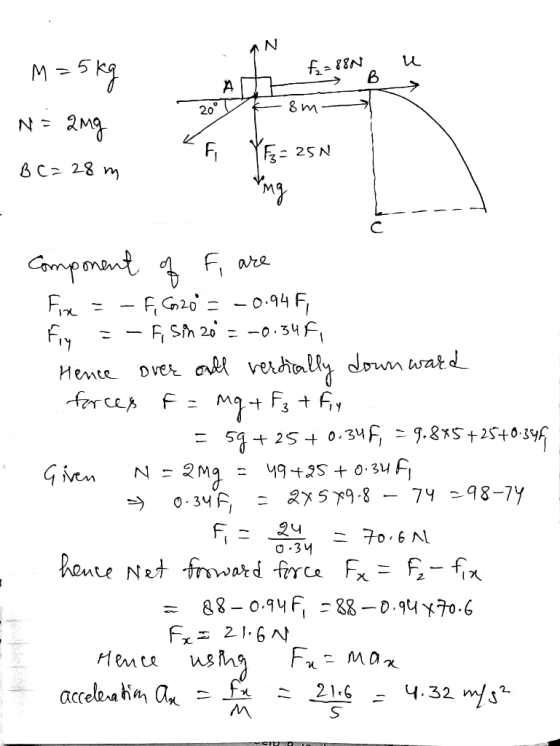

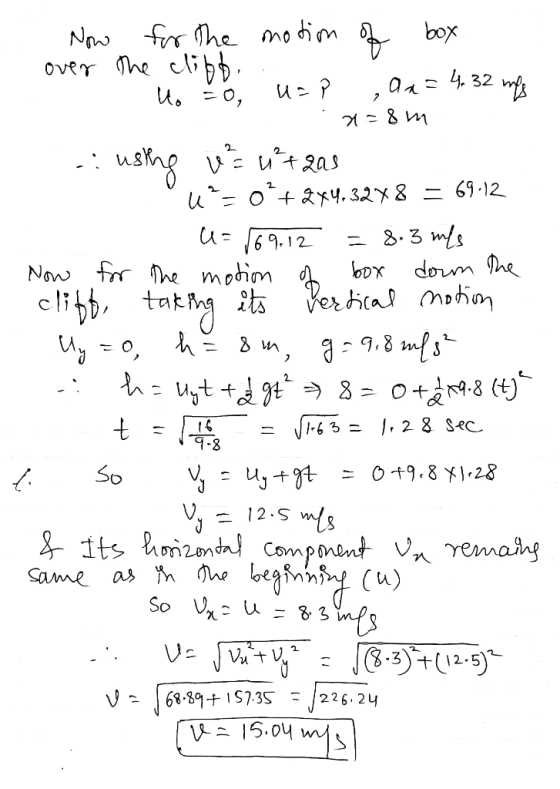

3) A mass of 5 kg is resting on a horizontal, frictionless surface. Force 1 is applied to it at 20 degrees below the horizontal in the -x direction, force 2 has a magnitude of 88 N and is applied in the +x direction , and force 3 has a magnitude of 25 N and is applied vertically downwards. When these forces are applied, the normal force acting on the mass is twice the amount of its weight. Also, when these forces are applied, the object moves 8 meters in the +x direction before it is launched horizontally off a cliff which is 28 meters above the ground. What is the speed, magnitude of velocity, in m/s, when it strikes the ground? Note: in midair, the only force acting on it is gravity.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
3) A mass of 5 kg is resting on a horizontal, frictionless surface. Force 1 is...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A mass of 7 kg is resting on a horizontal, frictionless surface. Force 1 is applied...

    A mass of 7 kg is resting on a horizontal, frictionless surface. Force 1 is applied to it at 23 degrees below the horizontal, force 2 has a magnitude of 19 N and is applied vertically downward, force 3 has a magnitude of 3 N and is applied vertically upwards, and force 4 has a magnitude of 21 N and is applied in the-x direction to the object. When these forces are applied to the object, the object moves 9...

  • A mass of 3kg is resting on a horizontal frictionless surface. Force 1 is applied to...

    A mass of 3kg is resting on a horizontal frictionless surface. Force 1 is applied to it at 59 degrees above the horizontal, force 2 has a magnitude of 33N and is applied vertically upwards, force 3 has a magnitude of 10N and is applied vertically downwards and force 4 has a magnitude of 57N and is applied in the negative x direction to the object. If the amount of force 1 is such that the mass just begins to...

  • ) A mass of 6 kg is resting on a horizontal with friction with a coefficient...

    ) A mass of 6 kg is resting on a horizontal with friction with a coefficient of static friction of 0.71 and coefficient of kinetic friction of 0.30. A force of 9 N is applied vertically upwards to the mass, and a force of 15 N is applied vertically downwards to the mass. What is the maximum static frictional force for this situation in Newtons?

  • 3) A mass of 9 kg is at rest on a horizontal surface. One force of...

    3) A mass of 9 kg is at rest on a horizontal surface. One force of 40 N is applied at an angle of 18 degrees below the horizontal (in the +x direction), and a force of 9 N is applied vertically upward (perpendicular and away from the surface). If these forces are applied for 2.3 seconds, what is the velocity (in the x direction) of the mass in m/s? If in the -x direction, include a negative sign.

  • A mass of 9 kg is placed on a horizontal frictionless surface and attached to a...

    A mass of 9 kg is placed on a horizontal frictionless surface and attached to a spring. The mass is compressed 0.69 meters on the spring from equilibrium and held still. It is then released and it travels across the horizontal surface, around a frictionless quarter circular ramp, and it is launched into the air vertically and reaches a maximum height of 6 meters above the ground. The same mass is then attached to the same spring and hung vertically...

  • A mass of 12 kg is resting on a horizontal surface without friction. A force of...

    A mass of 12 kg is resting on a horizontal surface without friction. A force of 107 Newtons is applied in the +x direction, a force of 13 Newtons is applied in the -x direction, and a force of 11 Newtons is applied in the -y direction (downward). What is the acceleration of the mass in m/s2? If in the -x direction, include a negative sign.

  • An object with a mass of 5 kg lies is on a horizontal surface with a...

    An object with a mass of 5 kg lies is on a horizontal surface with a coefficient of kinetic friction of 0.75. A force of 30 Nis applied to it DOWNWARDS, perpendicular to the surface, a force of 40 N is applied to it at an angle of 30 degrees above the +x axis, and a force of 20 N is applied to it in the negative x direction. The mass moves 10 m in the positive x direction with...

  • a block of mass 6kg resting on a horizontal frictionless surface is attached to a spring...

    a block of mass 6kg resting on a horizontal frictionless surface is attached to a spring with force constant k=210N/m. a force of force is applied to the block in x direction, thereby compressing the spring from its equillibrium length by 0.1m. 1) what is the magnitude of the force? 2) the force is removed and the block starts to oscillate. what is the period of this oscillation? d to a spring with force constant npressing the spring from its...

  • QUESTION 5 A mass of 12 kg is placed on a horizontal surface with friction with...

    QUESTION 5 A mass of 12 kg is placed on a horizontal surface with friction with a coefficient of static friction of 0.81 and coefficient of kinetic friction of 0.44. A force of 13 Newtons is applied in the -y direction and a force of 16 Newtons is also applied in the -y direction. Another force is applied in the +x direction (see sketch). The force applied in the +x direction is increased until it is 1.9 times the force...

  • 1) A mass of 12 kg is at rest on a horizontal surface. One force of...

    1) A mass of 12 kg is at rest on a horizontal surface. One force of 33 N is applied at an angle of 32 degrees below the horizontal (in the +x direction), and a force of 14 N is applied vertically upward (perpendicular and away from the surface). What is the acceleration (in the x direction) of the mass in m/s2? If in the -x direction, include a negative sign.
