Calculate the diode conduction time (in seconds) for the US 120V (rms), 50 Hz operation of...

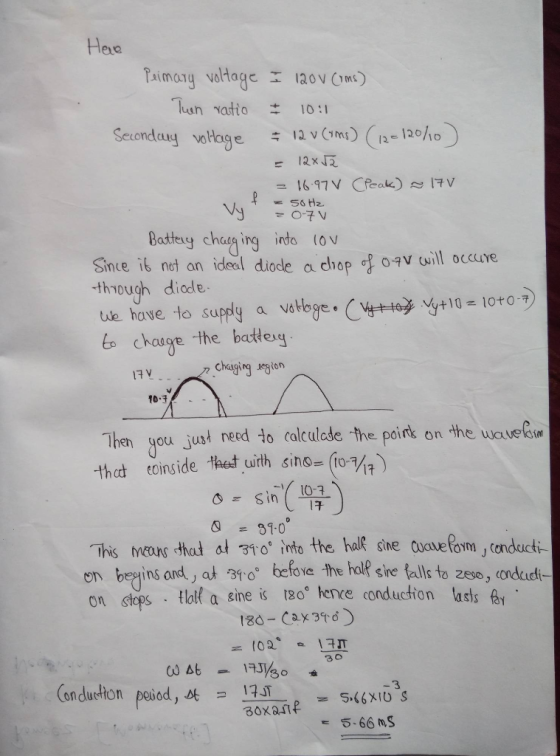

Calculate the diode conduction time (in seconds) for the US 120V (rms), 50 Hz operation of a half wave rectifier. The transformer primary to secondary ratio is 10 and during the diode conduction it charges a battery to 10V. Assume Vγ = 0.7V
