Determine the Resultant, R, and Equilibrant, E, vector from the components of A and B A:...

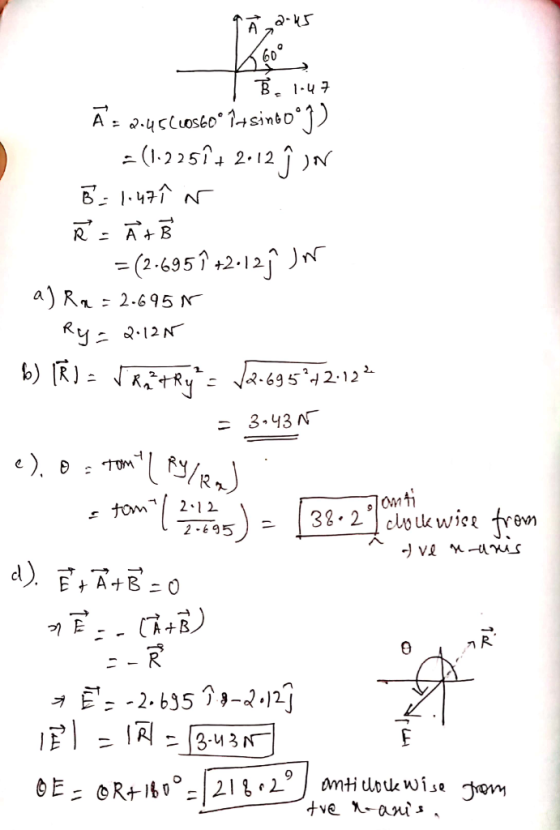

Determine the Resultant, R, and Equilibrant, E, vector from the components of A and B
A: 2.45 N at 60 degrees from the positive x-axis
B: 1.47 N at 0 degrees from the positive x-axis
a. Determine the components Rx and Ry of the resultant vector R by finding the sum of these two vectors in terms of components. Show all of your work starting from the symbolic equation and include units.
b. Determine the magnitude R, of the resultant vector R from the components. Show all of your work starting from the symbolic equation and include units.
c. Determine the direction θR, of the resultant vector R from the components. Show all of your work starting from the symbolic equation and include units.
d.From your resultant, predict the magnitude E, and direction θE, of the equilibrant vector E needed to balance the two forces A and B
Homework Answers
