Please answer the following question for me please, this is very important, you can use whatever...
Please answer the following question for me please, this is very important, you can use whatever information even online, but make sure it is correct:

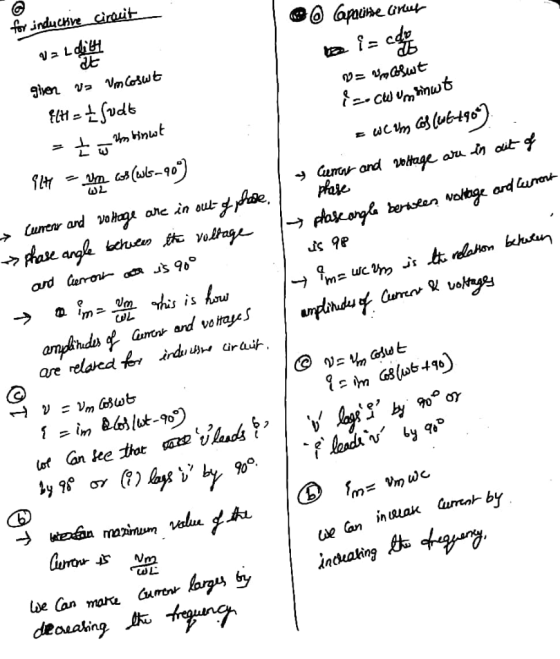

- How are the voltage and current related? Are they in phase or out of phase? What is the phase angle between the voltage and the current? Answer For both AC inductive circuit and Ac Capacitive circuit
- What is the maximum value of the current? In what ways could you make the maximum value of the current larger?Answer For both AC inductive circuit and Ac Capacitive circuit
- Does the current reach its maximum before (it leads) or after (it lags) the voltage? For both AC inductive circuit and Answer Ac Capacitive circuit
Homework Answers
Add Answer to:
Please answer the following question for me please, this is very
important, you can use whatever...
Please answer the following questions and show work. Thank you. 1. true or false. the heavier...
Please answer the following questions and show work. Thank you. 1. true or false. the heavier the current flow for a given voltage, the larger the value for admittance. 2. what is the reactance of a 25 millihenry coil at 600 hertz? a) 94,000 ohms b) 0.011 ohms c) 785 ohms d)94 ohms 3. In a series R-C circuit, at low frequencies, the total reactance of the capacitor will be high ad the total impedance will be capacitive in nature,...
Question 5 1 pts An ac generator supplies a peak (not rms) voltage of 150 V...
Question 5 1 pts An ac generator supplies a peak (not rms) voltage of 150 V at 60.0 Hz. The generator is connected in series with a 35-mH inductor, a 45-uF capacitor and an 85-0 resistor. Reference: Ref 23-3 Which one of the following statements concerning this circuit is true? The phase angle for this circuit is positive. The circuit is more capacitive than inductive. The voltage and current are exactly out of phase. The voltage and current are in...
Please help with the following question correctly for thumbs up! 4. + -11 points SerPSE10 32.5.0P.011....
Please help with the following question correctly for thumbs
up!
4. + -11 points SerPSE10 32.5.0P.011. A series AC circuit contains a resistor, an inductor of 240 mH, a capacitor of 4.20 pF, and a source with AVmax = 240 V operating at 50.0 Hz. The maximum current in the circuit is 120 mA. (a) Calculate the inductive reactance. (b) Calculate the capacitive reactance. (c) Calculate the impedance. ΚΩ (d) Calculate the resistance in the circuit. ΚΩ (e) Calculate the...
Suppose you setup an RLC circuit with the following values: R=4 ohms, L=3×10^-3H, C=8×10^-4F, and this...
Suppose you setup an RLC circuit with the following values: R=4 ohms, L=3×10^-3H, C=8×10^-4F, and this circuit is connected across an AC power supply with a peak voltage of .1v and a frequency of 200hz. A. Calculate the capacitive reactance and the inductive reactance. B. Draw a phase diagram for this circuit. C. What is the impedance and the maximum current through the power supply? D. When the current is maximal through the power supply, what is the voltage across...
please answer them. thank you so much (8] 3. An AC generator is connected to a...
please answer them. thank you so much
(8] 3. An AC generator is connected to a circuit. The generator's emf is sw - 172V sin(at). If the maximum current that results is 150 mA circuit, -5.01 x 10 rad/s and the phase angle is -85.6 degrees, complete the following sin (au- [8] 4. The amplitude of an alternating current is lox - 19.2 x 10 Amperes. What is value of ..? Answer: (a) 18.0 A. (b) 25.0 A. (c) 32.1...
A series AC circuit contains a resistor, an inductor of 250 mH, a capacitor of 4.50...
A series AC circuit contains a resistor, an inductor of 250 mH, a capacitor of 4.50 uF, and a source with AV = 240 V operating at 50.0 Hz. The max maximum current in the circuit is 170 mA. (a) Calculate the inductive reactance. The inductive reactance depends on the value of the inductance and the frequency of the source. Q (b) Calculate the capacitive reactance. (c) Calculate the impedance. kn (d) Calculate the resistance in the circuit. kn. (e)...
You have a 220 Ohm resistor, a 0.400 H inductor, and a 7.00 mu F capacitor....
You have a 220 Ohm resistor, a 0.400 H inductor, and a 7.00 mu F capacitor. Suppose you take the resistor and inductor and make a series circuit with a voltage source that has voltage amplitude 30.0 V and an angular frequency of 250 rad/s. (a) What is the impedance of the circuit? Ohm (b) What is the current amplitude? A (c) What are the voltage amplitudes across the resistor and across the inductor? V (across the resistor) V (across...
te=300 H 7 #2 Zoov 32.- 12 yol A Series Circuit Consisting of a 43. A...
te=300 H 7 #2 Zoov 32.- 12 yol A Series Circuit Consisting of a 43. A Series RLC Circuit R=4252, 1#4 100 32 novinke five resisfor, a coil In a purely inductive AC L=125H and C= 3.0. I Circuit, L = 250mH and the rms with a 0.10H and a 20 uf Capacitor Constad to an Ac Source with Voltage of 1500. across a llov, CH2 power Source (f = 60.042 and Vmax = 150V Calculate the inductive Reactance @...
The time, in seconds, for the current through a 870-ohm resistor in an RC circuit, with...
The time, in seconds, for the current through a 870-ohm resistor in an RC circuit, with an initially uncharged 4.24-mF capacitor, to fall to -37% of its maximum value is Add your answer Question 3 7.14 Points The time for the current in the resistor of an RL circuit, in units of ms, to reach -63% of its final value with a 705 resistor and a 84.7 mH inductor is Add your answer For an AC voltage source powering a...
RLC frequency limits Last week you studied the driven RC circuit and the driven RL circuit....
RLC frequency limits Last week you studied the driven RC circuit and the driven RL circuit. Consider the driven series RLC circuit. Its impedance is Z=R+j(ωL−1/(ωC)) . (a) For very high frequencies the driven RLC circuit behaves like an RL circuit (the effect of the capacitor becomes negligible). In this case does the current lead or lag the applied voltage in phase? A. lags B. leads C. neither What value in degrees does |ϕ| approach as ω→∞ ? (b) For...
Question 5 1 pts An ac generator supplies a peak (not rms) voltage of 150 V at 60.0 Hz. The generator is connected in series with a 35-mH inductor, a 45-uF capacitor and an 85-0 resistor. Reference: Ref 23-3 Which one of the following statements concerning this circuit is true? The phase angle for this circuit is positive. The circuit is more capacitive than inductive. The voltage and current are exactly out of phase. The voltage and current are in...
Please help with the following question correctly for thumbs
up!
4. + -11 points SerPSE10 32.5.0P.011. A series AC circuit contains a resistor, an inductor of 240 mH, a capacitor of 4.20 pF, and a source with AVmax = 240 V operating at 50.0 Hz. The maximum current in the circuit is 120 mA. (a) Calculate the inductive reactance. (b) Calculate the capacitive reactance. (c) Calculate the impedance. ΚΩ (d) Calculate the resistance in the circuit. ΚΩ (e) Calculate the...
please answer them. thank you so much
(8] 3. An AC generator is connected to a circuit. The generator's emf is sw - 172V sin(at). If the maximum current that results is 150 mA circuit, -5.01 x 10 rad/s and the phase angle is -85.6 degrees, complete the following sin (au- [8] 4. The amplitude of an alternating current is lox - 19.2 x 10 Amperes. What is value of ..? Answer: (a) 18.0 A. (b) 25.0 A. (c) 32.1...
A series AC circuit contains a resistor, an inductor of 250 mH, a capacitor of 4.50 uF, and a source with AV = 240 V operating at 50.0 Hz. The max maximum current in the circuit is 170 mA. (a) Calculate the inductive reactance. The inductive reactance depends on the value of the inductance and the frequency of the source. Q (b) Calculate the capacitive reactance. (c) Calculate the impedance. kn (d) Calculate the resistance in the circuit. kn. (e)...
You have a 220 Ohm resistor, a 0.400 H inductor, and a 7.00 mu F capacitor. Suppose you take the resistor and inductor and make a series circuit with a voltage source that has voltage amplitude 30.0 V and an angular frequency of 250 rad/s. (a) What is the impedance of the circuit? Ohm (b) What is the current amplitude? A (c) What are the voltage amplitudes across the resistor and across the inductor? V (across the resistor) V (across...
te=300 H 7 #2 Zoov 32.- 12 yol A Series Circuit Consisting of a 43. A Series RLC Circuit R=4252, 1#4 100 32 novinke five resisfor, a coil In a purely inductive AC L=125H and C= 3.0. I Circuit, L = 250mH and the rms with a 0.10H and a 20 uf Capacitor Constad to an Ac Source with Voltage of 1500. across a llov, CH2 power Source (f = 60.042 and Vmax = 150V Calculate the inductive Reactance @...
The time, in seconds, for the current through a 870-ohm resistor in an RC circuit, with an initially uncharged 4.24-mF capacitor, to fall to -37% of its maximum value is Add your answer Question 3 7.14 Points The time for the current in the resistor of an RL circuit, in units of ms, to reach -63% of its final value with a 705 resistor and a 84.7 mH inductor is Add your answer For an AC voltage source powering a...
