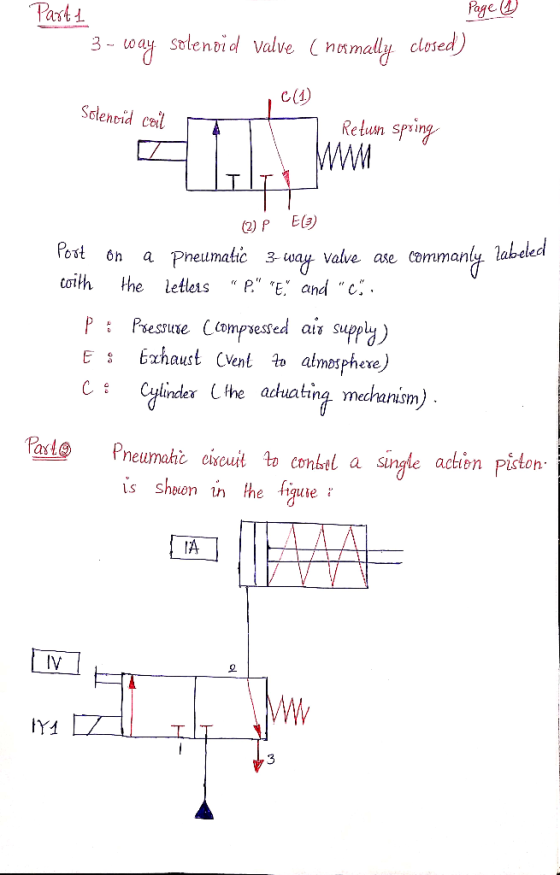

Part 1. Draw a 3-way solenoid valve diagram that is normally
closed.
Part 2. Draw the pneumatic circuit to control a single action
piston.

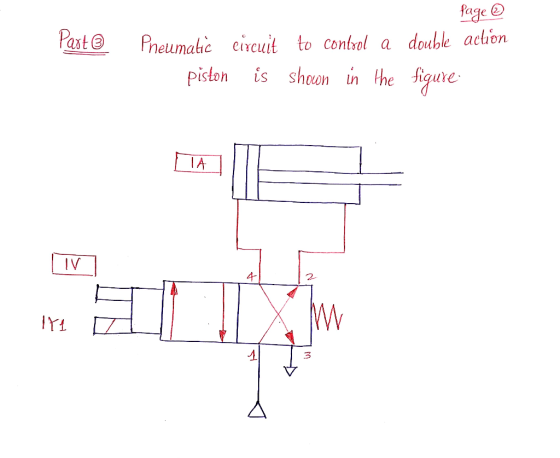

Part 3. Draw the pneumatic circuit to control a double action piston.
Part 1. Draw a 3-way solenoid valve diagram that is normally closed. Part 2. Draw the...
plz answer
