A LENS has a focal length of 150 mm. A real object is 225 mm from...

Question

Question

A LENS has a focal length of 150 mm. A real object is 225 mm from the lens. What is the lateral magnification?

science physics

Answer 1

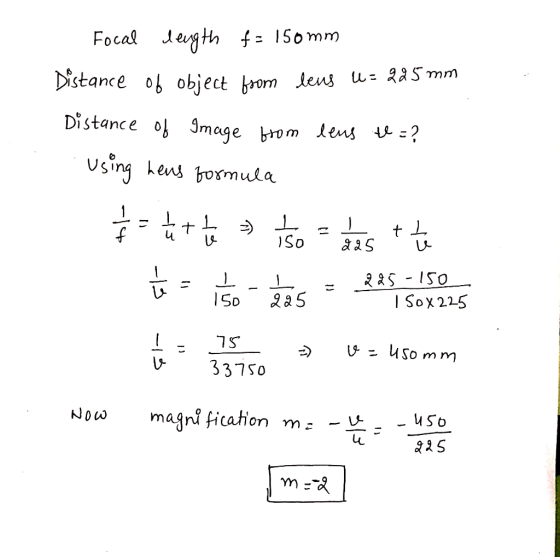

Answer #1

Answer 2
