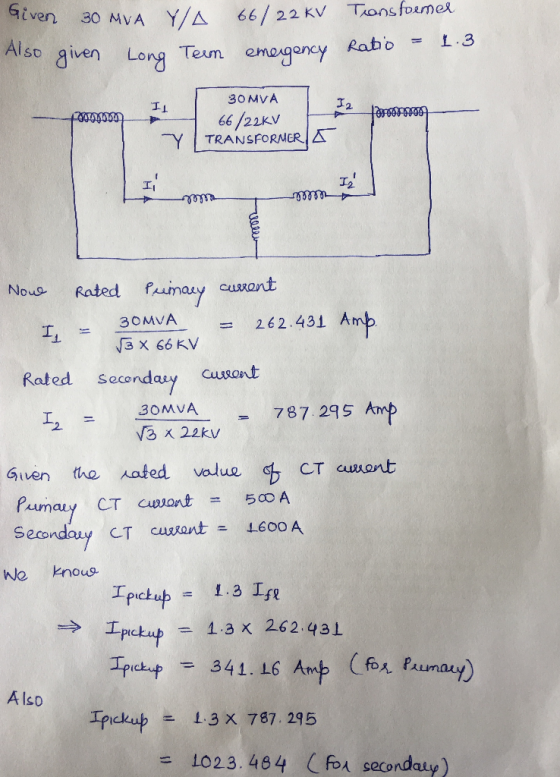

A 30MVA Star/Delta 66:22kV transformer is being constructed, with a LTER of 1.3,
Primary cables and CT are rated at 500A, secondary cables and CT are rated at 1600A

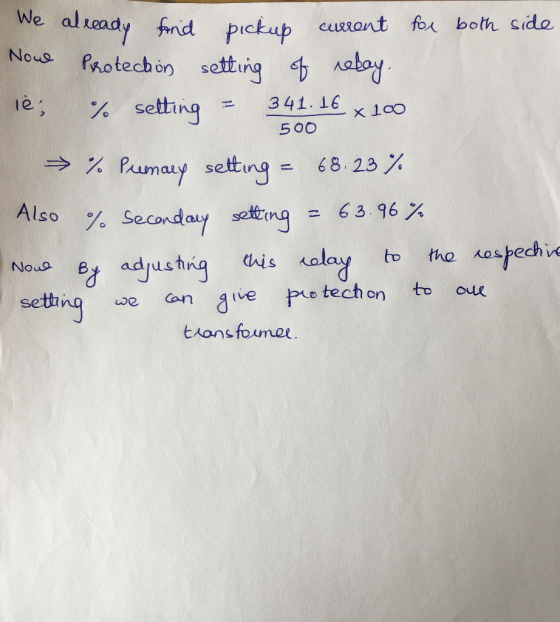

Please calculate the protection settings of the relays if differential protection is being used to protect the transformer (i.e pick up current)
A 30MVA Star/Delta 66:22kV transformer is being constructed, with a LTER of 1.3, Primary cables and...
A protection scheme for one of the main delta-star transformers at a zone substation features the following: differential protection; restricted carth fault protection; . Buchholz and gas impulse relays; phase overcurrent protection on both primary and secondary side; earth fault protection on the secondary side; and thermal overload protection Explain the specific role the above listed protection elements in terms of the nature of the fault and the need for back-up.
A protection scheme for one of the main delta-star...
A 100 MVA, 66 kV/230 kV, Delta- Wye three phase transformer is protected by a differential relay. Current transformer ratio at the LV side is 1000 :5 A. a) Sketch connection of differential relays to the transformer b) Current transformers available for use at the HV side are 800:5, 600:5, 400:5 and 200:5. Select the suitable CT ratio. c) Sketch the phasor diagram to show currents in current transformers windings and power transformers windings d) Calculate the percentage of the...
A 3-j semi-controlled bridge rectifier is fed from a delta-star transformer 66 kVA, 60 Hz, 13800 V/? (the secondary voltage is unknown). The load of the rectifier is highly inductive. The following measurements at a specified firing angle have been recorded: Ith RMS 70.71 A I line RMS (transformer secondary) 76.40 A Draw the complete circuit diagram and calculate; i. Load current Io. ii. Firing angle α. iii. Transformer secondary line voltage (RMS). iiii. Average output voltage (at the calculated...
A 3-j semi-controlled bridge rectifier is fed from a delta-star transformer 66 kVA, 60 Hz, 13800 V/? (the secondary voltage is unknown). The load of the rectifier is highly inductive. The following measurements at a specified firing angle have been recorded: Ith RMS 70.71 A I line RMS (transformer secondary) 76.40 A Draw the complete circuit diagram and calculate; i. Load current Io. ii. Firing angle α. iii. Transformer secondary line voltage (RMS). iiii. Average output voltage (at the calculated...
