A charge of -5.00 nC is spread uniformly over the surface of one face of a...

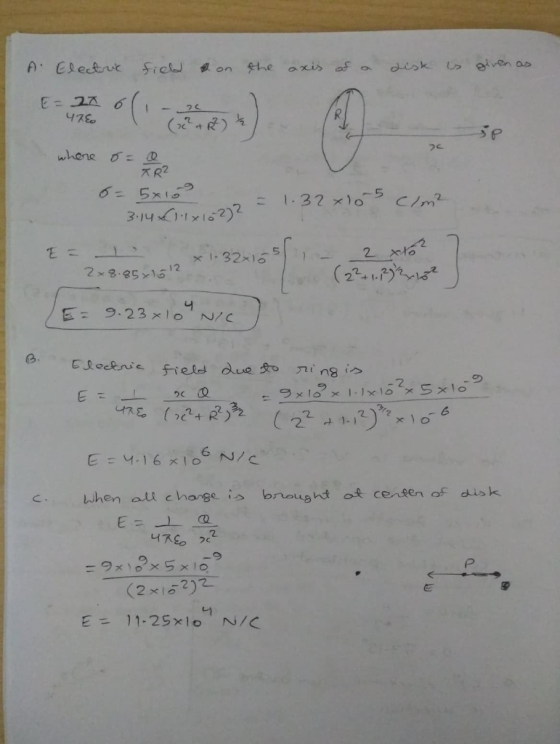

A charge of -5.00 nC is spread uniformly over the surface of one face of a nonconducting disk of radius 1.10 cm .

A. Find the magnitude of the electric field this disk produces at a point P on the axis of the disk a distance of 2.00 cm from its center.

B. Suppose that the charge were all pushed away from the center and distributed uniformly on the outer rim of the disk. Find the magnitude of the electric field at point P.

C. If the charge is all brought to the center of the disk, find the magnitude and direction of the electric field at point P.

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1
