Draw Lewis structures for the following molecules and predict their molecular shapes: h. PF5 i. BrF3...

Question

Question

Draw Lewis structures for the following molecules and predict their molecular shapes:

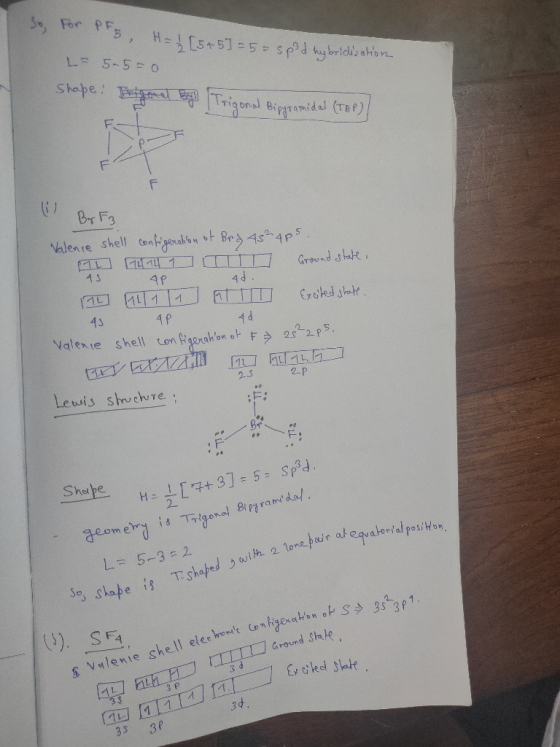

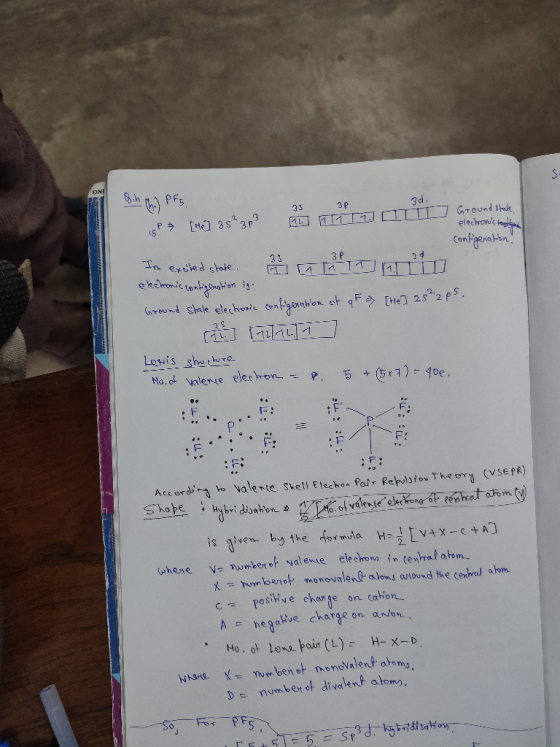

h. PF5

i. BrF3

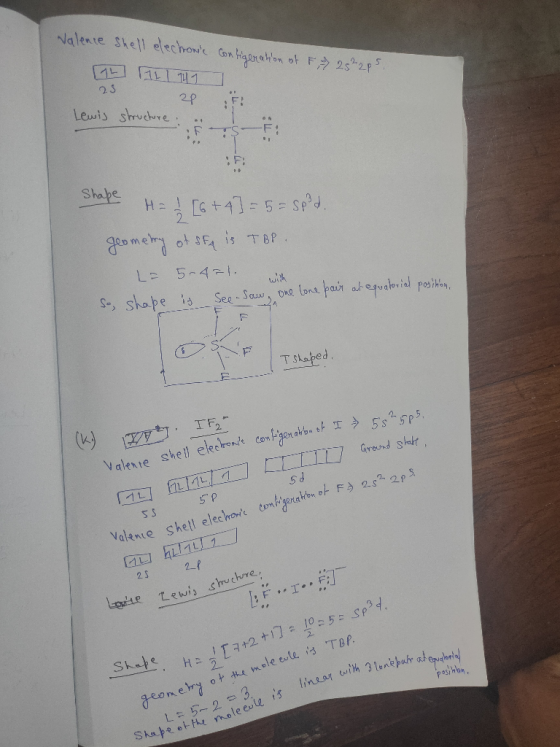

j. SF4

k. IF2 -

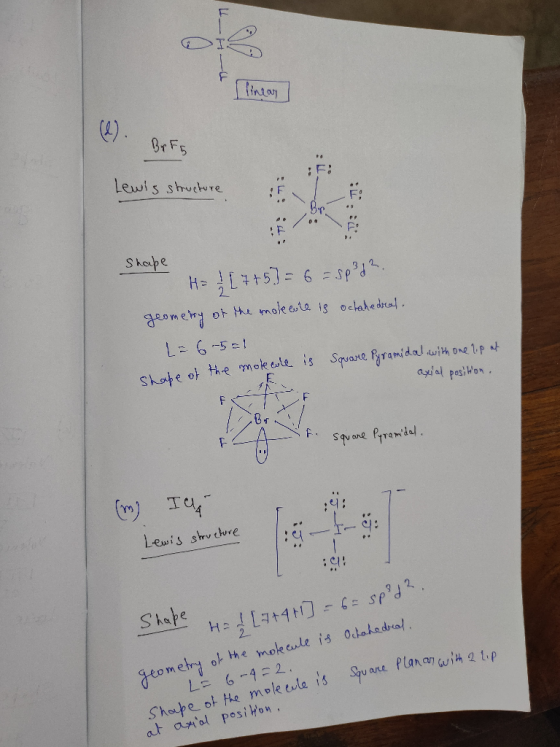

l. BrF5

m. ICl4 -

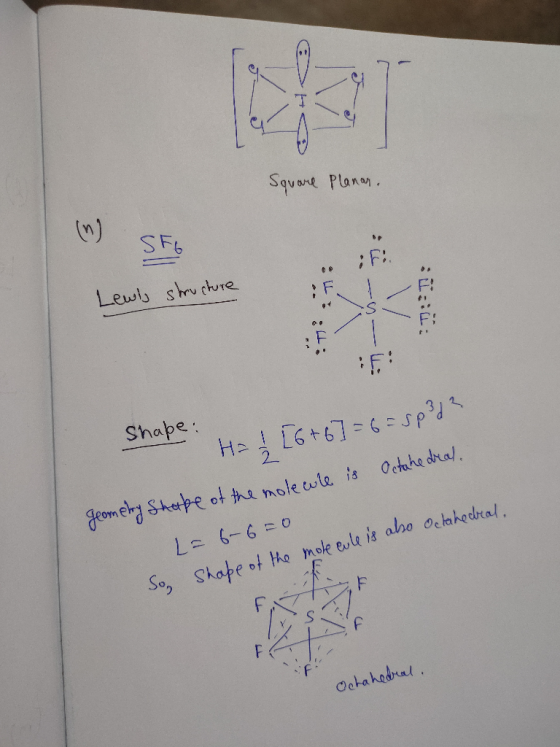

n. SF6

science chemistry

Answer 1

Answer #1
