Design a 4-bit sequence detector using JK-FF that will trigger an output Z=1 if the input...

Question

Question

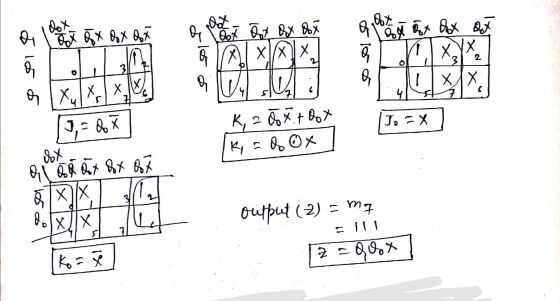

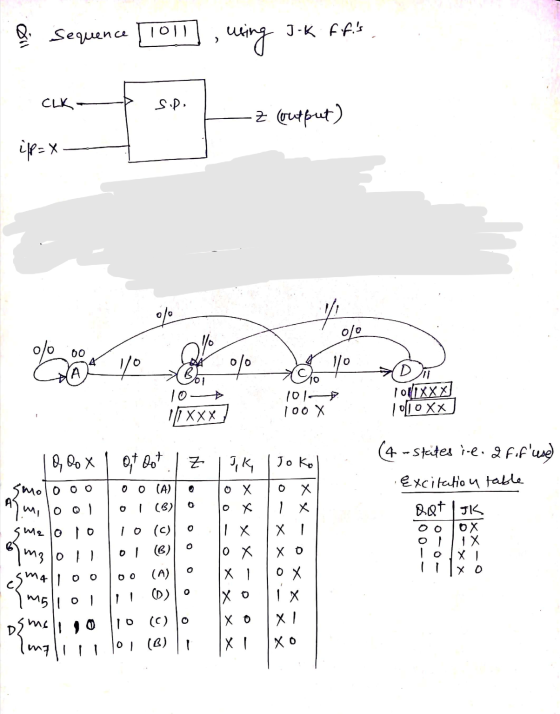

Design a 4-bit sequence detector using JK-FF that will trigger an output Z=1 if the input sequence is Y=1011, (up to Boolean equations, schematic diagrams are not required).

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2
