Can Someone please hep me solve this is problem Please. It is really important and it...
Can Someone please hep me solve this is problem Please. It is really important and it has 2 parts. both need to be solved. Thank you in advance

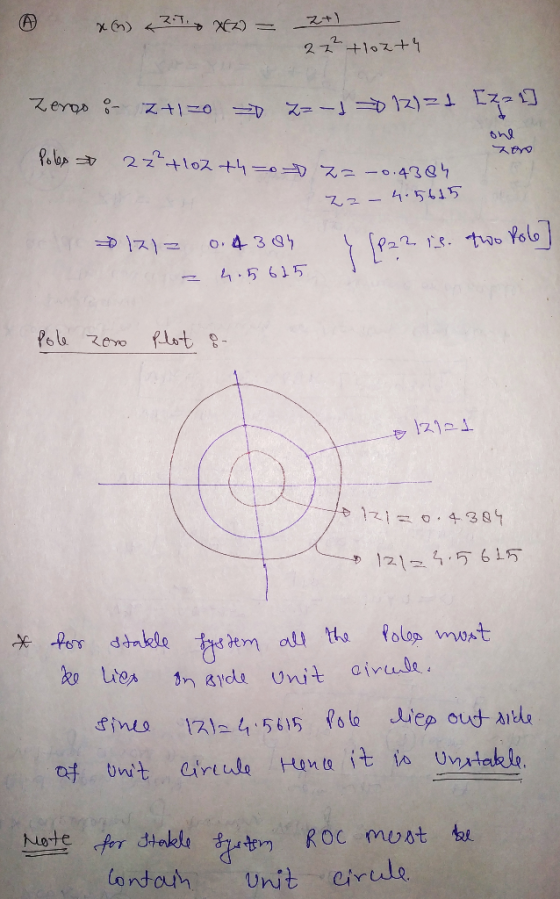

A) A DT signal x[n] has the following z-transform X(z)= z+1/2z^2+10z+4

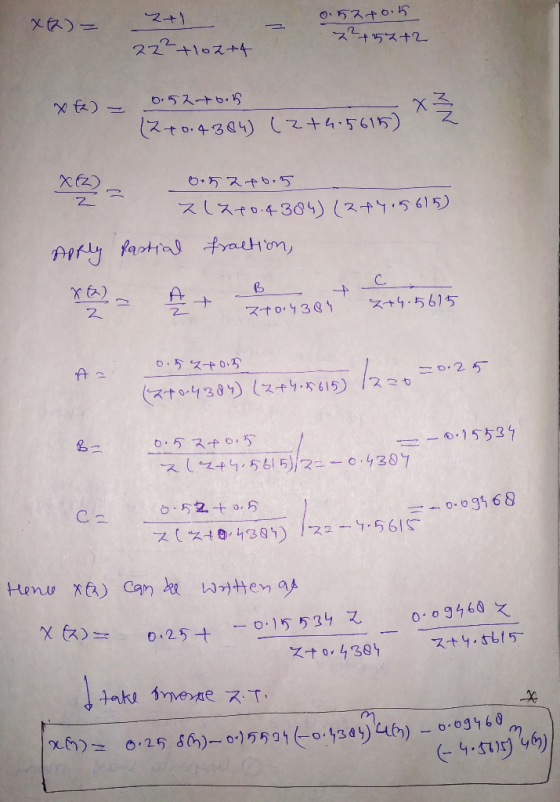

Determine the inverse z-transform, i.e. x[n] for all n Sketch the poles and zeros of X(z), including the unit circle.
Determine whether the system is stable or unstable, why?

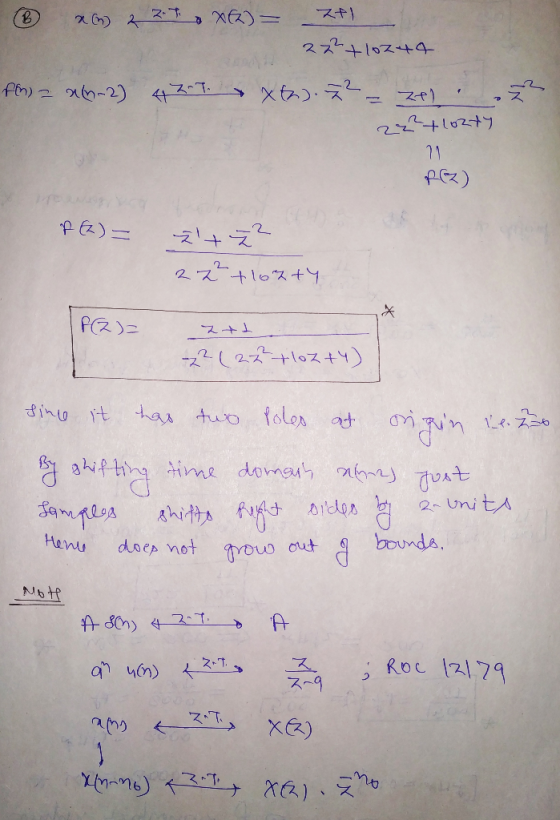

B)Determine the z-transform of x[n-2], using the properties table, write it as a ratio of polynomials. Does this signal grow out of bounds?
