Question

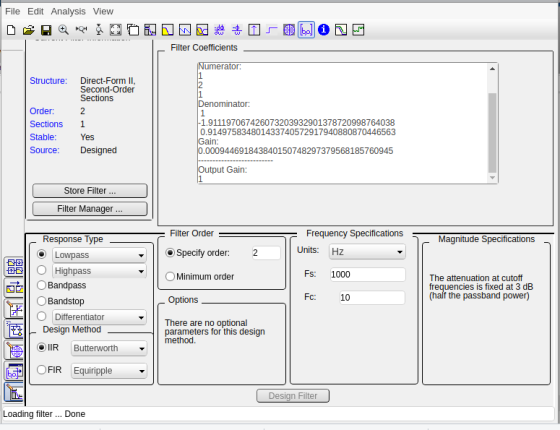

Using filterDesigner in MATLAB, design a second order low pass IIR Butterworth filter whose sampling frequency...

Using filterDesigner in MATLAB, design a second order low pass IIR Butterworth filter whose sampling frequency (Fs) is 1 kHz and cutoff frequency (Fc) is 10 Hz.

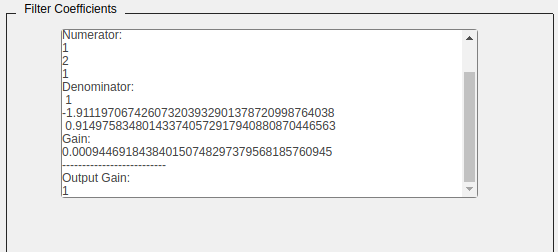

Find the numerator and denominator coefficients.

Write its transfer function H(z) = Y(z) / X(z).

Write its difference function y(k).

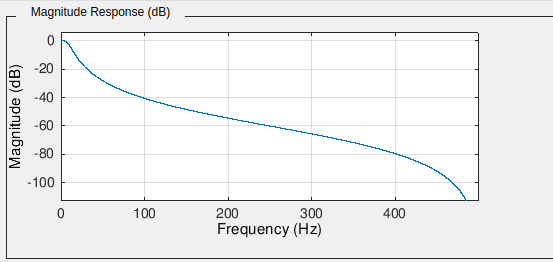

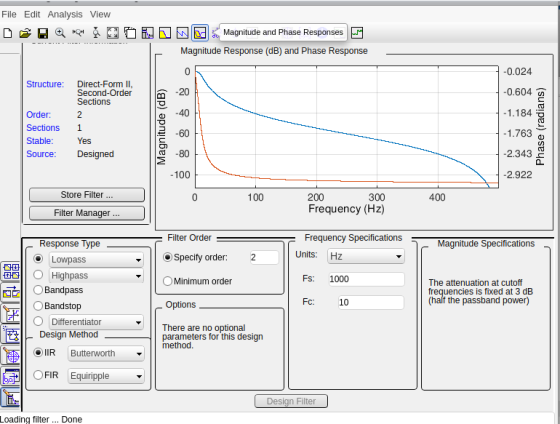

Draw (copy from Filter Designer) the magnitude response plot.

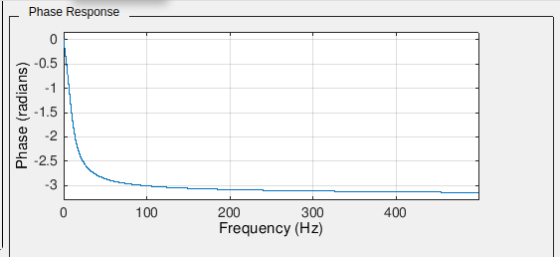

Draw (copy from Filter Designer) the phase response plot.

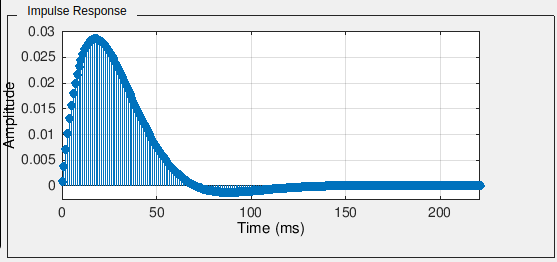

Draw (copy from Filter Designer) the impulse response plot.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

Thanks

Add a comment
