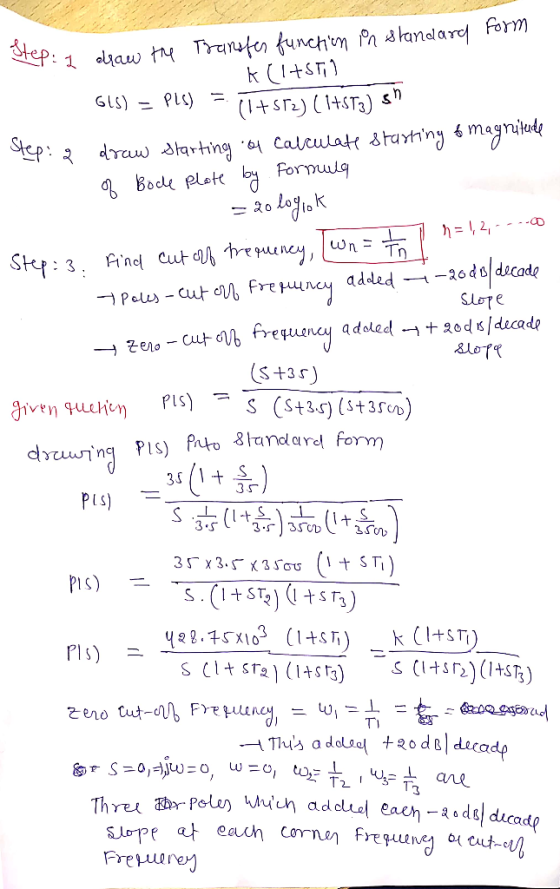

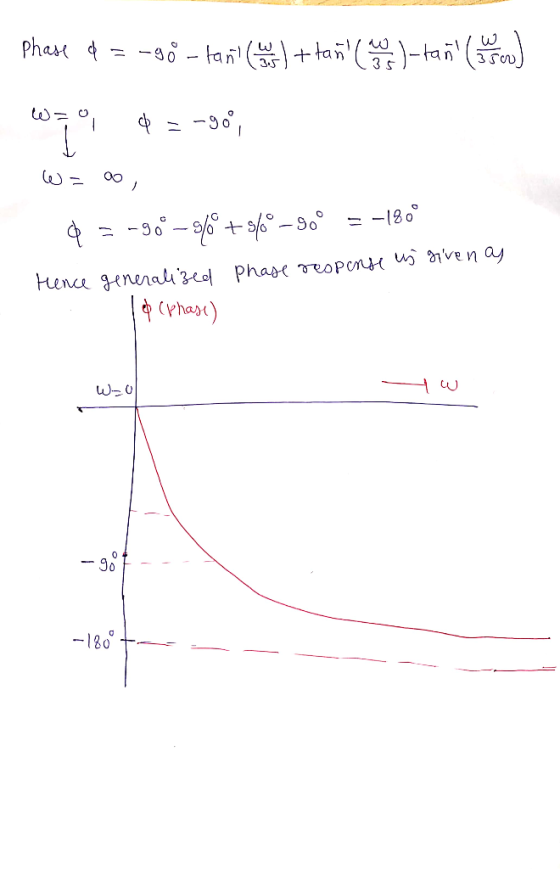

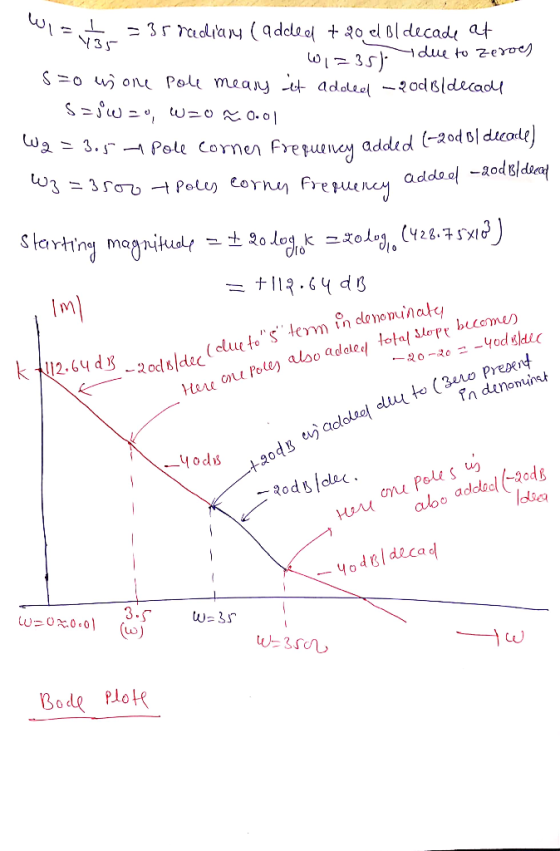

Please explain how to sketch by hand the bode asymptote plots for magnititude and phase of:

P(s) = (s+35)/[(s)(s+3.5)(s+3500)]
