Please answer the following in detail with a physics explanation for each step: A radio tuning...

Please answer the following in detail with a physics explanation for each step:

A radio tuning circuit contains an RLC circuit with R= 6.00 Ohms, L= 2.80 uH.

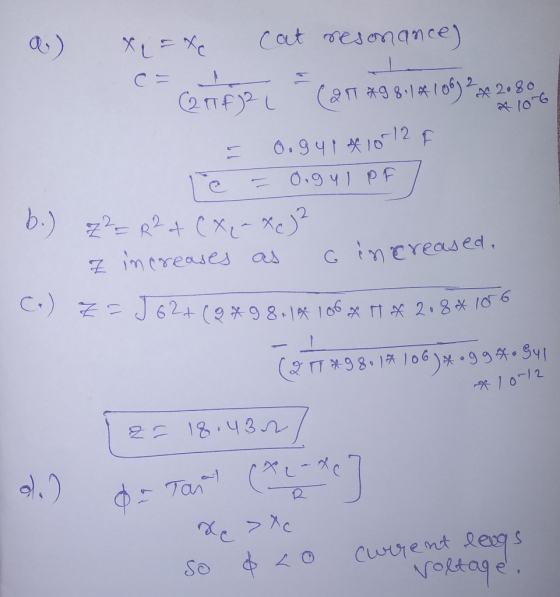

a) What capacitance is needed to produce a resonant frequency at 98.1 MHz?

b) If the capacitance is increased above this value, what will happen to the total impedance?

c) Find the impedance of the circuit when the capacitance is 99.0% of the value found in part a)

d) in part c) does the current lead or lag the voltage? Describe this, and find the relevant angle.

0 0
