Question

1. Specification

For this assignment, write a static class named ShortestRoute to find the shortest route between San Francisco to New York City. (What makes it "static" is that all its members will be static.)

The class will include two static recursive functions -- the first is simple, and just finds a valid route through the network, without regards to shortest distance. The second finds the shortest route. Both are explained below.

2. Create A Network

Create a constant array of Legs with at least 40 Leg objects. The Leg array you made for the previous Routes versions will probably have to be modified because of the requirements below.

class Leg {
   const char* const start;
   const char* const end;
   const double dist;
   friend class Route;
   friend class ShortestRoute;

public:
   Leg(const char* s, const char* e, double d) :
       start(s), end(e), dist(d) {}
   double getDistance() const {
       return dist;
   }
   void output(ostream& out) {
       out << "Leg: ";
       for (int i = 0; i * sizeof('a') < sizeof(start) / sizeof('a'); i++) {
           out << start[i];
       }
       out << " TO ";
       for (int i = 0; i * sizeof('a') < sizeof(start) / sizeof('a'); i++) {
           out << end[i];
       }
       out << ", " << dist << " miles" << endl;
   }
   Leg& operator=(const Leg& copyThis) {
       Leg& host = *this; // a reference to the host object
       if (this != ©This) {
           const_cast(host.start) = copyThis.start;
           const_cast(host.end) = copyThis.end;
           const_cast(host.dist) = copyThis.dist;
       }
       return host; //returns a "self-reference"
   }
};

Store the Leg array as a static data member of the ShortestRoute class. The Legs must represent a network of interconnecting cities, between San Francisco and New York City. Use a map of the United States to get the names of intermediate cities of your choice, and the distance between them. Distances do not have to be exact, but they do have to be reasonably close, so that the results generated by your program can be verified.

Every city should have more than one way in (from the west) and more than one way out (to the east), with these exceptions:

1. San Francisco is the start, and has no ways in.
2. The first city west of San Francisco can have only one way in -- from San Francisco.
3. New York City is the end, and has no ways out.
4. The first city east of New York City can have only one way out -- to New York City

3. Find Any Route

class Route {
   vector<const Leg*> legs;
   const double dist;
   friend class ShortestRoute;

   public:
       Route(const Leg& leg): dist(leg.dist){
           legs = {&leg};
       }
       Route(const Route& route, const Leg& leg): dist(route.legs.back()->end == leg.start ? route.dist + leg.dist : 0) {
           legs = {route.legs};
           if (legs.back()->end != leg.start) {
               throw "End and Start city don't match!";
           }
           else {
               legs.push_back(&leg);
           }
       }
       double getDistance() const{
           return dist;
       }
       void output(ostream& out) {
           //cout << "SIZE " << legs.size()<< endl;
           out << "Routes: ";
           for (unsigned int i = 0; i < legs.size(); i++) {
               out << legs[i]->start << " to ";
           }
           out << legs[legs.size()-1]->end << ", " << dist << " miles" << endl;
       }
       Route& operator=(const Route& copyThis) {
           Route& host = *this; // a reference to the host object
           if (this != &copyThis) {
               host.legs = copyThis.legs;
               const_cast<double&>(host.dist) = copyThis.dist;
           }
           return host; //returns a "self-reference"
       }
};

Write the recursive function, static const Route anyRoute(const char* const from, const char* const to ), to create and return a Route object that consists of Legs connecting two cities. The solution is explained at the bottom of this writeup, and will be discussed in lecture. Write the main program with a code block like the following:

const Route route1 = ShortestRoute::anyRoute("San Francisco", "New York City");
route1.outputRoute(cout);

The function should throw an exception if no route can be found from the "from" city to the "to" city. If your function returns the superhighway as the solution, you did not put that Leg at the end of your database, as specified.

The function should not produce output -- no cout's! It should return a Route object, period. Same for the 2nd function, described below.

4. Find The Shortest Route

Write the recursive function, static const Route shortestRoute(const char* const from, const char* const to) , to create and return a Route object that consists of legs connecting two cities, such that the legs represent the shortest of all possible routes. Add to main with a statement like the following:

const Route route2 = ShortestRoute::shortestRoute("San Francisco", "New York City");
route2.outputRoute(cout);

The function should use STL techniques to compare and determine the shortest of among possible routes from city "A" to city "B". If no possible route exists, throw an exception. If your function returns the superhighway as the solution, you didn't do this right.

5. Notes

• You may want to declare the ShortestRoute class as a friend of the other classes, but no add nothing else their v.2 solutions.
• The recursive functions call themselves -- they do not call each other
• Use Google Maps (Links to an external site.) (http://maps.google.com/) ' Get Directions option, or any competing product, to determine the distance between cities.
• Do NOT write separate H and CPP files for the classes -- this is all to be in one CPP file

6. About Recursive Solutions

For anyRoute, look through the database of Legs until you find a match between a database's Leg's ending city and the parameter ending city. Once found, see if the database's Leg's beginning city matches the parameter beginning city. Remember -- these are C strings!

If both the start and end match, return a Route object constructed using the 1-parameter Route constructor with the found database Leg as its parameter.

Otherwise just the ending cities match. So create any Route from the parameter beginning city to the found database Leg's beginning city, and return a Route object constructed using the 2-parameter Route constructor with the created "any Route" and the found database Leg as its parameter. How to "create any route"? There's a function for that now, right?...

ShortestRoute::anyRoute returns the first Route it can find. ShortestRoute::shortestRoute is a bit more discriminating. The only difference between the two is instead of returning Routes as anyRoute does, shortestRoute should save the Route to a set and keep looking through the database for more matches with the parameter ending city. When the loop ends, the lead position in the set is the shortest route! Of course, if the set is empty after the loop completes, throw and exception and check your network because something's wrong!

7. Submit Routes.3.cpp

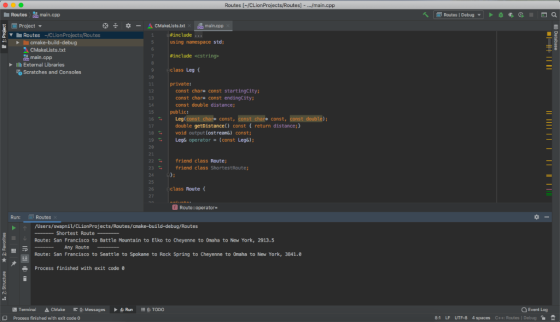

The output should have two routes -- the first generated by "any route" and the second by "shortest route". The first should be longer than the second, if this works right. In the unlikely event that your "any route" just happens to match the "shortest route", scramble your Leg array until that no longer happens. Note that scrambling should affect "any route" but not "shortest route" -- the shortest should be the shortest no matter how the Legs are stored in the array.

Answer 1

Please let me know if you have any doubts or you want me to modify the answer. And if you find this answer useful then don't forget to rate my answer as thumps up. Thank you! :)

#include <iostream>
#include <vector>
#include <string>
#include <set>
using namespace std;

#include <cstring>

class Leg {

private:
const char* const startingCity;
const char* const endingCity;
const double distance;
public:
Leg(const char* const, const char* const, const double);
double getDistance() const { return distance;}
void output(ostream&) const;
Leg& operator = (const Leg&);

friend class Route;
friend class ShortestRoute;
};

class Route {

private:
vector<const Leg*> legs;
const double totalDistance;

public:
Route(const Leg&);
Route(const Route&, const Leg&);
double getTotalDist() const {return totalDistance;}
void output(ostream& out) const;
Route& operator = (const Route&);
friend class ShortestRoute;
};

class ShortestRoute {
private:
static const Leg legs[];
public:
static Route anyRoute(const char* const, const char* const);
static Route shortestRoute(const char* const, const char* const);
};

const Leg ShortestRoute::legs[] = {
Leg("San Francisco", "Sacramento", 87.9), Leg("Sacramento", "Reno", 132),
Leg("Sacramento", "Bakersfield", 286), Leg("Portland", "Sacramento", 581),
Leg("Reno", "Winnemucca", 166), Leg("Reno", "Salt Lake City", 518),
Leg("Portland", "Reno", 533), Leg("Winnemucca", "Elko", 124),
Leg("Bakersfield", "Winnemucca", 560), Leg("Winnemucca", "Battle Mountain", 53.5),
Leg("San Francisco", "Bakersfield", 283), Leg("San Francisco", "Eureka", 271),
Leg("Eureka", "Portland", 409), Leg("San Francisco", "Battle Mountain", 436),
Leg("Battle Mountain", "Salt Lake City", 300), Leg("Battle Mountain", "Elko", 70.5),
Leg("Bakersfield", "West Wendover", 647), Leg("West Wendover", "Albuquerque", 719),
Leg("Elko", "West Wendover", 107), Leg("West Wendover", "Salt Lake City", 123),
Leg("Rock Spring", "Albuquerque", 653), Leg("Spokane", "Rock Spring", 758),
Leg("Salt Lake City", "Rock Spring", 187), Leg("Omaha", "New York", 1246),
Leg("Rock Spring", "Cheyenne", 256), Leg("Cheyenne", "Omaha", 494),
Leg("Chicago", "Cincinnati", 299), Leg("Kansas City", "Chicago", 510),
Leg("Omaha", "Chicago", 472), Leg("Chicago", "New York", 790),
Leg("Los Angeles", "Las Vegas", 270), Leg("Bakersfield", "Los Angeles", 113),
Leg("Phoenix", "Albuquerque", 422), Leg("San Francisco", "Los Angeles", 383),
Leg("Los Angeles", "Phoenix", 373), Leg("Las Cruces", "Oklahoma City", 672),
Leg("Las Vegas", "Las Cruces", 685), Leg("Phoenix", "Las Cruces", 388),
Leg("Las Cruces", "Austin", 622), Leg("Austin", "Jacksonville", 1034),
Leg("Jacksonville", "Richmond", 598), Leg("Kansas City", "Jacksonville", 1144),
Leg("Jacksonville", "New York", 930), Leg("Seattle", "Spokane", 279),
Leg("Richmond", "New York", 333), Leg("San Francisco", "Seattle", 808),
Leg("Seattle", "Great Falls", 642), Leg("Minneapolis", "Chicago", 408),
Leg("Great Falls", "Minneapolis", 967), Leg("Cincinnati", "Richmond", 514),
Leg("Minneapolis", "Cincinnati", 704), Leg("Cincinnati", "New York", 639),
Leg("Great Falls", "Cheyenne", 670), Leg("Cheyenne", "Minneapolis", 809),
Leg("Austin", "Omaha", 842), Leg("Salt Lake City", "Kansas City", 1073),
Leg("Bakersfield", "Las Vegas", 286), Leg("Las Vegas", "Phoenix", 298),
Leg("San Francisco", "Portland", 635), Leg("Portland", "Seattle", 173),
Leg("Portland", "Spokane", 351), Leg("Spokane", "Great Falls", 365),
Leg("Portland", "Elko", 627), Leg("Elko", "Cheyenne", 667),
Leg("Las Vegas", "Albuquerque", 574), Leg("Albuquerque", "Austin", 695),
Leg("Albuquerque", "Kansas City", 790), Leg("Oklahoma City", "Kansas City", 353),
Leg("Oklahoma City", "Nashville", 678), Leg("Salt Lake City", "Oklahoma City", 1188),
Leg("Austin", "Nashville", 859), Leg("Nashville", "Cincinnati", 272),
Leg("Denver", " Kansas City", 605), Leg("Great Falls", "Denver", 770),
Leg("Nashville", "Richmond", 614), Leg("Las Vegas", "Denver", 748),
Leg("Denver", " Omaha", 538), Leg("San Francisco", "New York", 21000)
};

ostream& roundingOne(ostream&);
bool operator < (const Route&, const Route&);

int main() {

Route greedyRoute = ShortestRoute::anyRoute("San Francisco", "New York");
Route bestRoute = ShortestRoute::shortestRoute("San Francisco", "New York");

// Print the shortest route
cout << "------- Shortest Route --------" << endl;
bestRoute.output(cout);
// Print any route
cout << "-------    Any Route   --------" << endl;
greedyRoute.output(cout);

return 0;
}

Route ShortestRoute::anyRoute(const char* const from, const char* const to) {
const int legSize = sizeof(legs) / sizeof(*legs);
const Leg *legTo = NULL;

try {
    for (int i = 0; i < legSize; i++) {
      bool matchDestination = !strcmp(to, legs[i].endingCity);
      bool matchDeparting = !strcmp(from, legs[i].startingCity);
      if (matchDestination && matchDeparting) return Route(legs[i]);
      if (matchDestination) {
        legTo = &legs[i];
        break;
      }
    }
    if (!legTo) throw "No matching arriving city found";
} catch(const char* err) {
    cout << err << endl;
}
return Route(anyRoute(from, legTo->startingCity), *legTo);
}

Route ShortestRoute::shortestRoute(const char* const from, const char* const to) {
const int legSize = sizeof(legs) / sizeof(*legs);
set<Route> routes;

try {
    for (int i = 0; i < legSize; i++) {
      bool matchDestination = !strcmp(to, legs[i].endingCity);
      bool matchDeparting = !strcmp(from, legs[i].startingCity);
      if (!strcmp(legs[i].startingCity, "San Francisco") &&
          !strcmp(legs[i].endingCity, "New York")) continue;
      if (matchDestination && matchDeparting) return Route(legs[i]);
      if (matchDestination) {
        try {
          const Route candidate(shortestRoute(from, legs[i].startingCity), legs[i]);
          routes.insert(candidate);
        } catch(const char* err) {
          continue;
        }
      }
    }

    if (routes.empty()) throw "Something went wrong. Check your legs";
} catch(const char* err) {
    cout << err << endl;
}

return *routes.begin();
}

Leg::Leg (const char* const cityA, const char* const cityB, const double distBtw)
: startingCity(cityA), endingCity(cityB), distance(distBtw)
{
}

void Leg::output(ostream& out) const {
out << "Leg: " << startingCity << " to " << endingCity
    << ", " << roundingOne << distance << " miles." << endl;

}

ostream& roundingOne(ostream& out) {
out.setf(ios::fixed);
out.precision(1);
return out;
}

Leg& Leg::operator = (const Leg& right) {
Leg &left = *this;

if (this == &right) {
    return left;
}
const_cast<const char*&>(left.startingCity) = right.startingCity;
const_cast<const char*&>(left.endingCity) = right.endingCity;
const_cast<double&>(left.distance) = right.distance;

return left;
}

Route::Route(const Leg& leg)
: totalDistance(leg.distance)
{
legs.push_back(&leg);
}

Route::Route(const Route& route, const Leg& leg)
: legs(route.legs), totalDistance(0.0)
{
try {
    const Leg* lastLeg = legs.back();
    if (strcmp(lastLeg->endingCity, leg.startingCity) != 0)
      throw "Cities don't match!";
    legs.push_back(&leg);
    for (unsigned int i = 0; i < legs.size(); i++) {
      const_cast<double&>(totalDistance) += legs[i]->getDistance();
    }
}
catch (const char* err) {
    cout << err << endl;
}
}

void Route::output(ostream& out) const {
const Leg* lastLeg = legs.back();
out << "Route: ";
for( unsigned int i = 0; i < legs.size(); i++)
    out << legs[i]->startingCity << " to ";
out << lastLeg->endingCity << ", " << roundingOne
    << totalDistance << endl;
}

Route& Route::operator = (const Route& right) {
Route &left = *this;

if (this == &right) {
    return left;
}

left.legs = right.legs;
const_cast<double&>(left.totalDistance) = right.totalDistance;

return left;
}

bool operator < (const Route& left, const Route& right) {
return left.getTotalDist() < right.getTotalDist();
}
