A detection system with a bandwidth of 250Hz has a signal to noise ratio of 12...
- A detection system with a bandwidth of 250Hz has a signal to noise ratio of 12 when the detector is at room temperature. Calculate the new signal to noise ratio if the detector is cooled to -196 °C and the bandwidth is reduced to 10Hz for

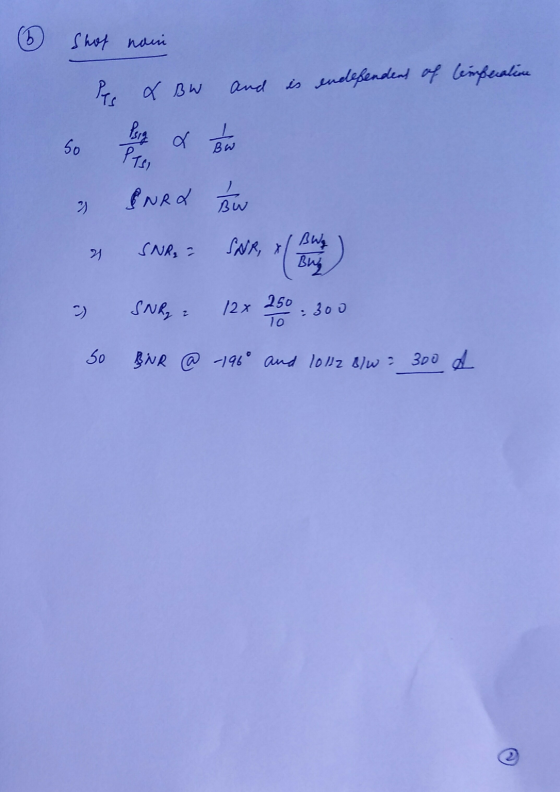

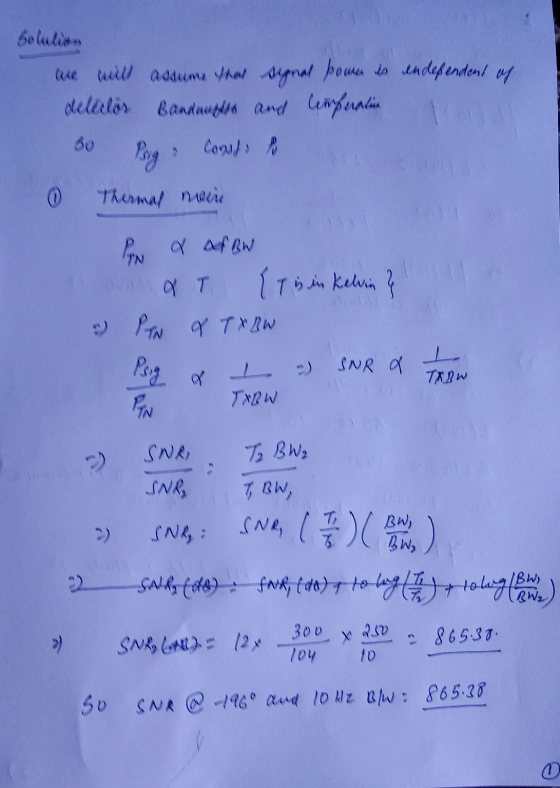

(a) thermal noise and (b) shot noise.
Homework Answers
Add Answer to:
A detection system with a bandwidth of 250Hz has a signal to
noise ratio of 12...
Problem #2 (2 points) ive resistance of 1 MOhm. Calculate the shot noise when using three...
Problem #2 (2 points) ive resistance of 1 MOhm. Calculate the shot noise when using three A system has an effecti different bandwidth oscilloscopes (80 GHz, 200 MHz, and 50 MHz), assuming that the different scopes do not alter the effective resistance Problem #3 (2 points) Which signal is most likely to suffer from 1/noase? Which signal is most likely to suffer from thermal noise? (a) 1Hz (b) 10Hz (c) 100Hz (d) 1kHz
2. 12 pts] An FM system has a modulation index β-6 aid the input signal-to-noise ratio SNR 25dB. ...
2. 12 pts] An FM system has a modulation index β-6 aid the input signal-to-noise ratio SNR 25dB. The message is a periodic square wave given in the figure below pulse width -0.2m 2 0 0 t (ms) a) What is the output SNR.? b) What is the proper value of the message bandwidth? [Justify your answer. c) What is the corresponding FM transmission bandwidth? d) If the modulation index is kept at β 6, what should be the increase...
Problem 3 A receiver has a bandwidth of 1 MHz and a noise figure of 10...
Problem 3 A receiver has a bandwidth of 1 MHz and a noise figure of 10 dB. The receiver sensitivity is -90 dBm. The Boltzmann constant is k=1.38x10-23 Joule/deg K, and the room temperature is 300 deg Kelvin. a) What is the ratio of the SNR at the input to the receiver (computed over the bandwidth of interest) to the SNR at the output of the receiver? b) What is the noise power at output of the receiver? c) Find...
Bandwidth = B = 1Mhz, Signal to noise ratio = 20dB What is the maximum data...
Bandwidth = B = 1Mhz, Signal to noise ratio = 20dB What is the maximum data rate achievable?
4) The average noise power per unit bandwidth measured at the front end of an AM...
4) The average noise power per unit bandwidth measured at the front end of an AM receiver is 10-watt/Hz. The modulating signal is sinusoidal, with a carrier power of 80 watts and a sideband power of 10 watts per sideband. The message bandwidth is 4 kHz. a) Assuming the use of an envelope detector in the receiver, determine the output signal-to-noise ratio of the system. b) By how many decibels is this system inferior to a DSB-SC modulation system?
2. A diode can be used as a white noise generator. Calculate the magnitude of shot noise if 100 V is applied to a diode in series with a 10 Ω resistor when measured with an instrument that has a 1...
2. A diode can be used as a white noise generator. Calculate the magnitude of shot noise if 100 V is applied to a diode in series with a 10 Ω resistor when measured with an instrument that has a 100 kHz bandwidth. a. If the shot noise signal above is taken across the resistor and amplified by 105 calculate the shot noise at the amplifier output b.
2. A diode can be used as a white noise generator. Calculate...
A radio channel has a bandwidth of 7MHz, and transmitted signal power equal to the noise...
A radio channel has a bandwidth of 7MHz, and transmitted signal power equal to the noise power. Calculate the capacity of the channel
Oscillator such that its output is conizrf,1+ φ) . Tee Yoput the DSB-SC modulated signal. The noi...
oscillator such that its output is conizrf,1+ φ) . Tee Yoput the DSB-SC modulated signal. The noise power spectrat devsity is No and tow w-pass tilter has a bandwidth of W a) Find an expression for the coherent detector oustput assunmiog, that te message power is P b) Show that the post-detection SNR is reduced by the tactor teo o compared to the case when there is no phase errot in the synctromtzed oncilator tn pass RF sghal Signal f...
3. The quality of a received signal is often characterized by the signal-to-noise-ratio (SNR), which is...
3. The quality of a received signal is often characterized by the signal-to-noise-ratio (SNR), which is defined as SNR 10 log As you might expect from this Signal power in watts KTB definition, the unit of SNR is decibels (dB). The term in the denominator is the noise power, and it is generally specified as an effective noise temperature T multiplied by the product of Boltzmann's constant (K) and the bandwidth (B) of the signal in Hz. Generally we like...
Noise-related problems Question # B.4 An RF system having a RF-bandwidth of 1 MHz, has a...
Noise-related problems Question # B.4 An RF system having a RF-bandwidth of 1 MHz, has a front-end preamplifier of gain (A) equal to 20 dB and a noise-figure (NF) of 4 dB. The preamplifier is followed by a mixer stage with a NF 18 dB. Suppose the signal-to-noise ratio (SNR) at the mixer output is 30 dB, find the SNR at the preamplifier input. Hint: Use Friis formula: Answer hints: NF (Total) 4.96 dB)
Problem #2 (2 points) ive resistance of 1 MOhm. Calculate the shot noise when using three A system has an effecti different bandwidth oscilloscopes (80 GHz, 200 MHz, and 50 MHz), assuming that the different scopes do not alter the effective resistance Problem #3 (2 points) Which signal is most likely to suffer from 1/noase? Which signal is most likely to suffer from thermal noise? (a) 1Hz (b) 10Hz (c) 100Hz (d) 1kHz
2. 12 pts] An FM system has a modulation index β-6 aid the input signal-to-noise ratio SNR 25dB. The message is a periodic square wave given in the figure below pulse width -0.2m 2 0 0 t (ms) a) What is the output SNR.? b) What is the proper value of the message bandwidth? [Justify your answer. c) What is the corresponding FM transmission bandwidth? d) If the modulation index is kept at β 6, what should be the increase...
Problem 3 A receiver has a bandwidth of 1 MHz and a noise figure of 10 dB. The receiver sensitivity is -90 dBm. The Boltzmann constant is k=1.38x10-23 Joule/deg K, and the room temperature is 300 deg Kelvin. a) What is the ratio of the SNR at the input to the receiver (computed over the bandwidth of interest) to the SNR at the output of the receiver? b) What is the noise power at output of the receiver? c) Find...
4) The average noise power per unit bandwidth measured at the front end of an AM receiver is 10-watt/Hz. The modulating signal is sinusoidal, with a carrier power of 80 watts and a sideband power of 10 watts per sideband. The message bandwidth is 4 kHz. a) Assuming the use of an envelope detector in the receiver, determine the output signal-to-noise ratio of the system. b) By how many decibels is this system inferior to a DSB-SC modulation system?
2. A diode can be used as a white noise generator. Calculate the magnitude of shot noise if 100 V is applied to a diode in series with a 10 Ω resistor when measured with an instrument that has a 100 kHz bandwidth. a. If the shot noise signal above is taken across the resistor and amplified by 105 calculate the shot noise at the amplifier output b.
2. A diode can be used as a white noise generator. Calculate...
oscillator such that its output is conizrf,1+ φ) . Tee Yoput the DSB-SC modulated signal. The noise power spectrat devsity is No and tow w-pass tilter has a bandwidth of W a) Find an expression for the coherent detector oustput assunmiog, that te message power is P b) Show that the post-detection SNR is reduced by the tactor teo o compared to the case when there is no phase errot in the synctromtzed oncilator tn pass RF sghal Signal f...
3. The quality of a received signal is often characterized by the signal-to-noise-ratio (SNR), which is defined as SNR 10 log As you might expect from this Signal power in watts KTB definition, the unit of SNR is decibels (dB). The term in the denominator is the noise power, and it is generally specified as an effective noise temperature T multiplied by the product of Boltzmann's constant (K) and the bandwidth (B) of the signal in Hz. Generally we like...
Noise-related problems Question # B.4 An RF system having a RF-bandwidth of 1 MHz, has a front-end preamplifier of gain (A) equal to 20 dB and a noise-figure (NF) of 4 dB. The preamplifier is followed by a mixer stage with a NF 18 dB. Suppose the signal-to-noise ratio (SNR) at the mixer output is 30 dB, find the SNR at the preamplifier input. Hint: Use Friis formula: Answer hints: NF (Total) 4.96 dB)
