Consider the discrete-time system with input x[n] and output y[n] described by : y[n]=x[n]u[2-n] Which of the...

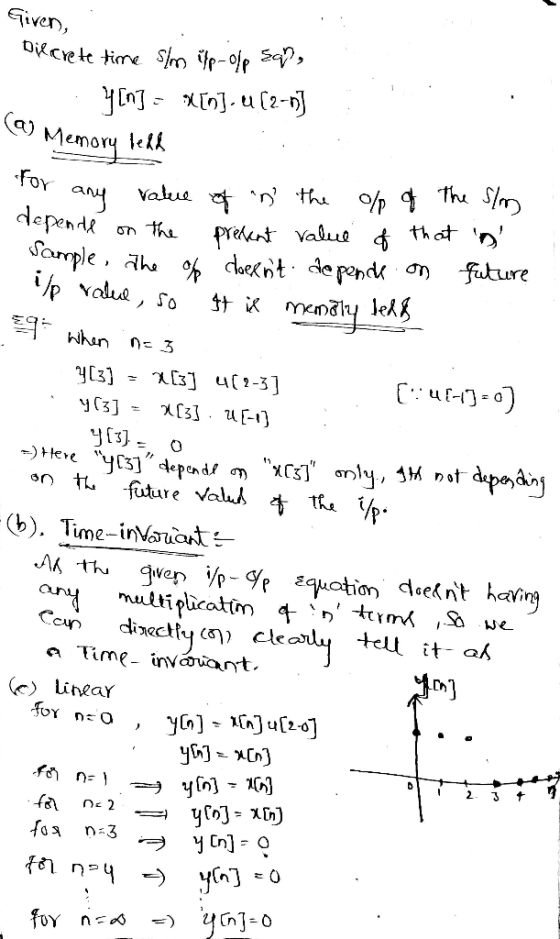

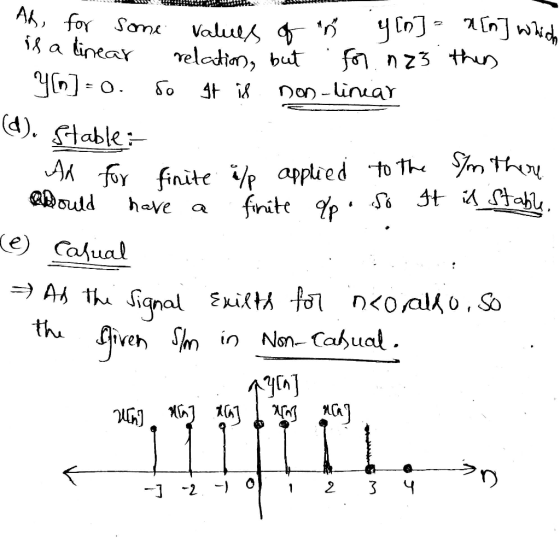

Consider the discrete-time system with input x[n] and output y[n] described by :
y[n]=x[n]u[2-n]
Which of the following properties does this system possess? Justify your answer in each case. Do not use Laplace transforms
a) Memoryless b)Time-invariant c) Linear d)Casual e) Stable
Homework Answers
Add Answer to:
Consider the discrete-time system with input x[n] and
output y[n] described by :
y[n]=x[n]u[2-n]
Which of the...
1. Consider a discrete-time system H with input x[n] and output y[n]Hn (a) Define the following...
1. Consider a discrete-time system H with input x[n] and output y[n]Hn (a) Define the following general properties of system H () memoryless;(ii BIBO stable; (ii) time-invariant. (b) Consider the DT system given by the input-output relation Indicate whether or not the above properties are satisfied by this system and justify your answer.
A system with input x(t) and output y(t) is described by y(t) = 5 sin(x(t)). Identify...
A system with input x(t) and output y(t) is described by y(t) = 5 sin(x(t)). Identify the properties of the given system. Select one: a. Non-linear, time invariant, BIBO stable, memoryless, and causal b. Non-linear, time invariant, unstable, memoryless, and non-causal c. Linear, time varying, unstable, not memoryless, and non-causal d. Linear, time invariant, BIBO stable, not memoryless, and non-causal e. Linear, time invariant, BIBO stable, memoryless, and non-causal 0
(d) [5] The input-output relation for DT system is described by following system equation y[n] =...
(d) [5] The input-output relation for DT system is described by following system equation y[n] = 31[] State if the system possesses the following properties: Linear BIBO-Stable Casual Memoryless Time-Invariance
Consider three systems with the following input-output relationships 6. Consider three systems with the following input-output...
Consider three systems with the following input-output
relationships
6. Consider three systems with the following input-output relationships: { 4 0, odd System 1: y[n n even r[n] 10ar(n 2]3r[n - 1 System 2: yn + + System 3: yn x[3n] The interconnection diagram is at follows: System 1 System 2 System 3 Find the input-output relationship of the interconnected system. State the properties of the system (linear, stable, time invariant, memoryless, and causal).
6. Consider three systems with the following...
Q.5 (a) Show that a linear, time-invariant, discrete-time system is stable in the bounded- input bounded-output...
Q.5 (a) Show that a linear, time-invariant, discrete-time system is stable in the bounded- input bounded-output sense if, and only if the unit sample response of the system, h[n], is absolutely summable, that is, Alfa]]<00 | [n]| < do ***** (13 marks] (b) Consider a linear, time-invariant discrete-time system with unit sample response, hin), given by hin] = a[n] – đặn – 3 where [n] is the unit sample sequence. (1) Is the system stable in the bounded-input bounded-output sense?...
For the system described by y[n] = n2 x[n – 1],
For the system described by y[n] = n2 x[n – 1], determine whether it is a) Linear or not b) Time-invariant or not c) BIBO stable or not d) Causal or not and e) Memoryless or not
Please answer all of the questions. 6. Consider three systems with the following input-output relationships: {...
Please
answer all of the questions.
6. Consider three systems with the following input-output relationships: { 0, odd System 1: yn 피[핑], n even System 2: y[nx[n] - 10xr[n + 2] + 3xr[n - 1 System 3: yn x[3n] The interconnection diagram is at follows: y System 3 System System 2 Find the input-output relationship of the interconnected system. State the properties of the system (linear, stable, time invariant, memoryless, and causal)
6. Consider three systems with the following input-output...
Determine which of these properties (Memoryless, Time invariant, Linear, Causal, and Stable) hold and which do...
Determine which of these properties (Memoryless, Time invariant, Linear, Causal, and Stable) hold and which do not hold for each of the continuous-time system, y[n] = x [4n + 1]. Justify your answers. y(t) denotes the system output and x(t) is the system input
6. (15) Consider the following causal linear time-invariant (LTT) discrete-time filter with input in and output...
6. (15) Consider the following causal linear time-invariant (LTT) discrete-time filter with input in and output yn described by y[n] = x[n] – rn - 2 for n 20 . Is this a finite impulse response (FIR) or infinite impulse response (IIR) filter? Why? • What are the initial conditions and their values for this causal and linear time-invariant system? Why? • Draw the block diagram of the filter relating input x[n) and output y[n] • Derive a formula for...
Q8) Consider the following causal linear time-invariant (LTI) discrete-time filter with input x[n...
Q8) Consider the following causal linear time-invariant (LTI) discrete-time filter with input x[n] and output y[n] described by bx[n-21- ax[n-3 for n 2 0, where a and b are real-valued positive coefficients. A) Is this a finite impulse response (FIR) or infinite impulse response (IIR) filter? Why? B) What are the initial conditions and their values? Why? C) Draw the block diagram of the filter relating input x[n] and output y[n] D) Derive a formula for the transfer function in...
1. Consider a discrete-time system H with input x[n] and output y[n]Hn (a) Define the following general properties of system H () memoryless;(ii BIBO stable; (ii) time-invariant. (b) Consider the DT system given by the input-output relation Indicate whether or not the above properties are satisfied by this system and justify your answer.
A system with input x(t) and output y(t) is described by y(t) = 5 sin(x(t)). Identify the properties of the given system. Select one: a. Non-linear, time invariant, BIBO stable, memoryless, and causal b. Non-linear, time invariant, unstable, memoryless, and non-causal c. Linear, time varying, unstable, not memoryless, and non-causal d. Linear, time invariant, BIBO stable, not memoryless, and non-causal e. Linear, time invariant, BIBO stable, memoryless, and non-causal 0
(d) [5] The input-output relation for DT system is described by following system equation y[n] = 31[] State if the system possesses the following properties: Linear BIBO-Stable Casual Memoryless Time-Invariance
Consider three systems with the following input-output
relationships
6. Consider three systems with the following input-output relationships: { 4 0, odd System 1: y[n n even r[n] 10ar(n 2]3r[n - 1 System 2: yn + + System 3: yn x[3n] The interconnection diagram is at follows: System 1 System 2 System 3 Find the input-output relationship of the interconnected system. State the properties of the system (linear, stable, time invariant, memoryless, and causal).
6. Consider three systems with the following...
Q.5 (a) Show that a linear, time-invariant, discrete-time system is stable in the bounded- input bounded-output sense if, and only if the unit sample response of the system, h[n], is absolutely summable, that is, Alfa]]<00 | [n]| < do ***** (13 marks] (b) Consider a linear, time-invariant discrete-time system with unit sample response, hin), given by hin] = a[n] – đặn – 3 where [n] is the unit sample sequence. (1) Is the system stable in the bounded-input bounded-output sense?...
Please
answer all of the questions.
6. Consider three systems with the following input-output relationships: { 0, odd System 1: yn 피[핑], n even System 2: y[nx[n] - 10xr[n + 2] + 3xr[n - 1 System 3: yn x[3n] The interconnection diagram is at follows: y System 3 System System 2 Find the input-output relationship of the interconnected system. State the properties of the system (linear, stable, time invariant, memoryless, and causal)
6. Consider three systems with the following input-output...
6. (15) Consider the following causal linear time-invariant (LTT) discrete-time filter with input in and output yn described by y[n] = x[n] – rn - 2 for n 20 . Is this a finite impulse response (FIR) or infinite impulse response (IIR) filter? Why? • What are the initial conditions and their values for this causal and linear time-invariant system? Why? • Draw the block diagram of the filter relating input x[n) and output y[n] • Derive a formula for...
Q8) Consider the following causal linear time-invariant (LTI) discrete-time filter with input x[n] and output y[n] described by bx[n-21- ax[n-3 for n 2 0, where a and b are real-valued positive coefficients. A) Is this a finite impulse response (FIR) or infinite impulse response (IIR) filter? Why? B) What are the initial conditions and their values? Why? C) Draw the block diagram of the filter relating input x[n] and output y[n] D) Derive a formula for the transfer function in...
