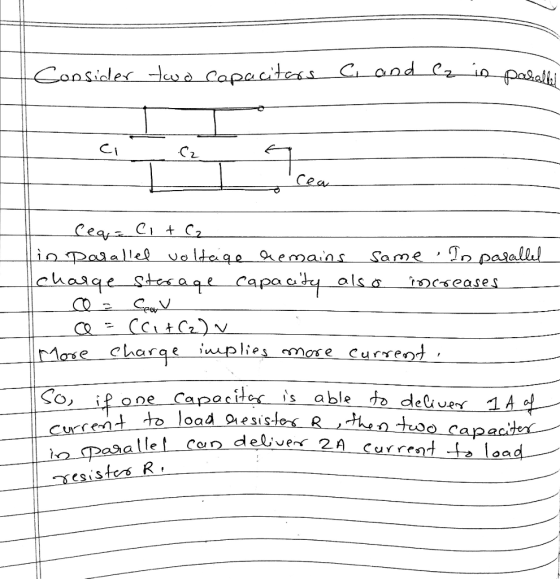

Q1) If a capacitor is capable of discharging a maximum current of 1A to a load, then another equal-capacitance capacitor is connected to the original in parallel, it too being capable of discharging a max. current of 1A, by varying the circuit's resistance & voltage, would it be possible to achieve 2A? Since the two-caps are in parallel increasing the overall capacitance.
Please explain
