What is the importance of symmetrical components in fault studies? Give an illustrative example (with computation)...

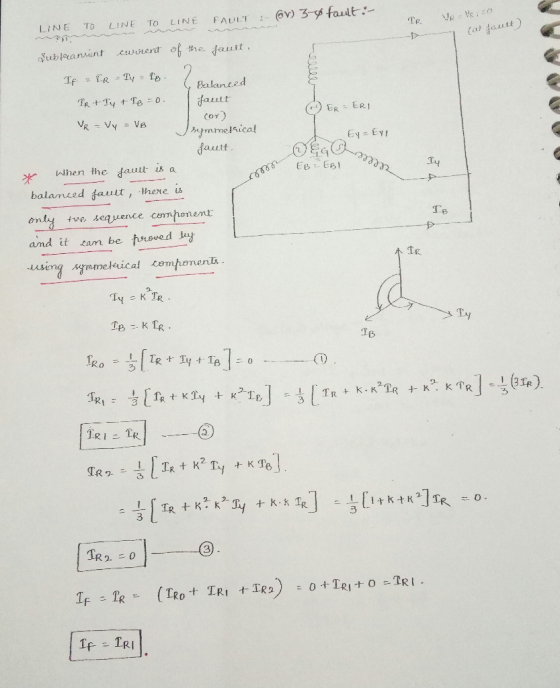

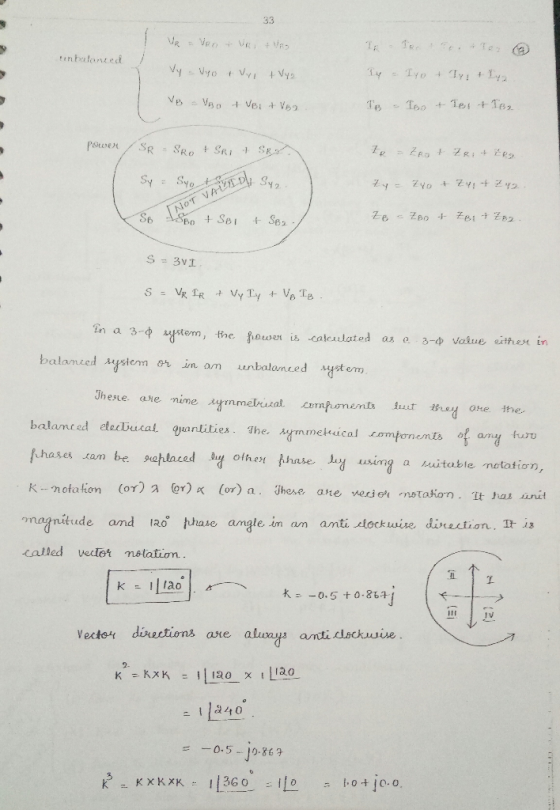

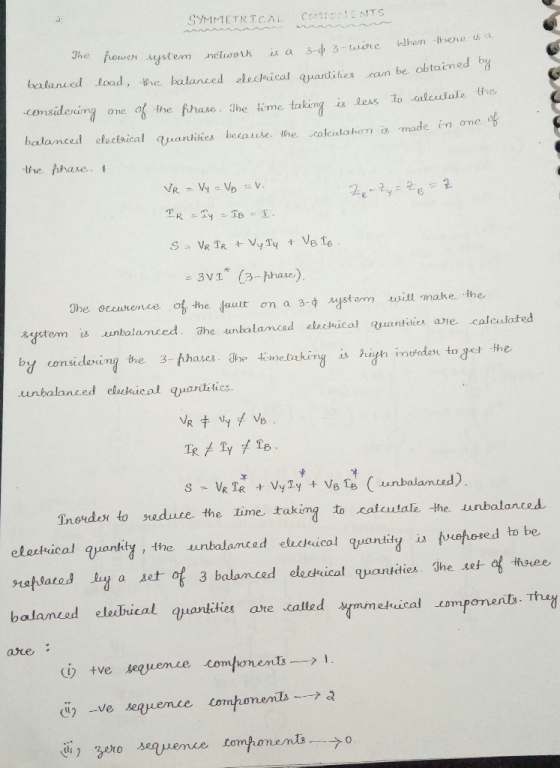

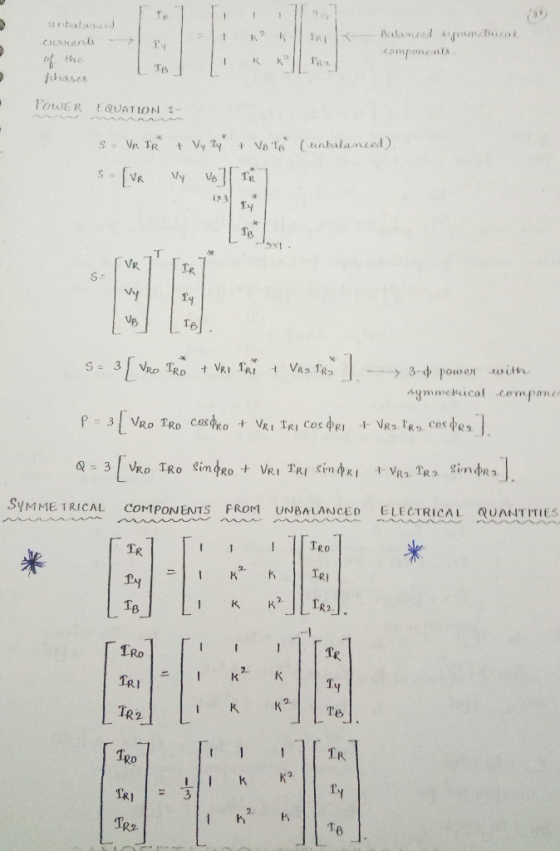

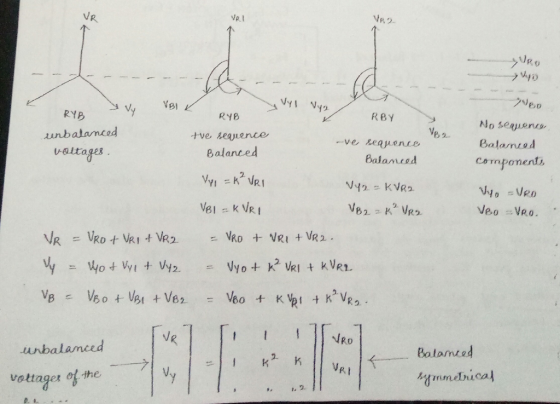

What is the importance of symmetrical components in fault studies? Give an illustrative example (with computation) on the comparison of solving three phase fault using symmetrical components and without symmetrical components.
Homework Answers
