Question

1. For each of the following mass analyzers, associate these systems with their appropriate operating pressure, detector type, experiment type, and nominal resolution. (For example, a QMS is often paired with a CEM detector and not a MCP). Note, that a single characteristic may be assigned to more than one mass analyzer.

1. Quadrupole Mass Spectrometer
   1. ______________________________________________________________

2. Time of Flight Mass Spectrometer
   1. ______________________________________________________________

3. Triple Quadrupole Mass Spectrometer
   1. ______________________________________________________________

4. Orbitrap
   1. ______________________________________________________________

5. Ion Trap Mass Spectrometer
   1. ______________________________________________________________

1. Channel Electron Multiplier
2. Image Charge Detection
3. Microchannel Plate
4. Maximum Sensitivity
5. Destruction Analysis (Ions are destroyed upon detection)
6. MSn
7. MS2
8. Resolution ~3000
9. Resolution >= 25,000
10. Resolution >= 15,000
11. Resolution >=100,000
12. KE = ½ mv²
13. a and q, where q = 4zeV/(mw²r²⁾
14. f = qB/2πm
15. Fourier Transform for the win.

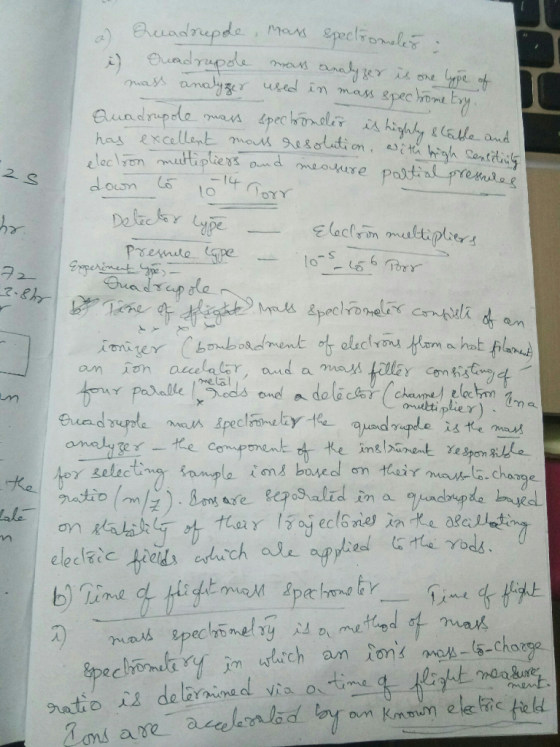

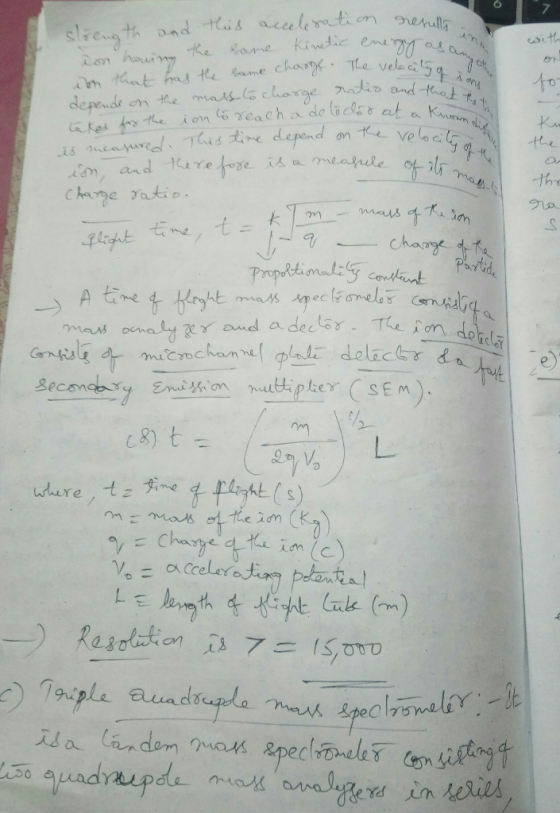

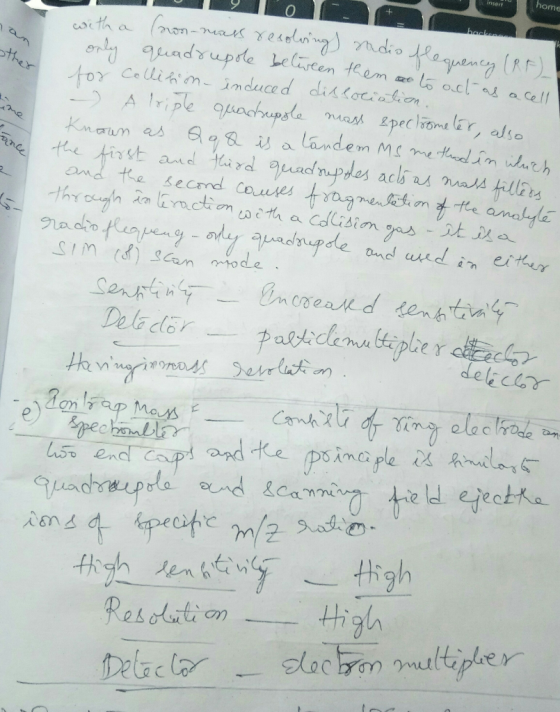

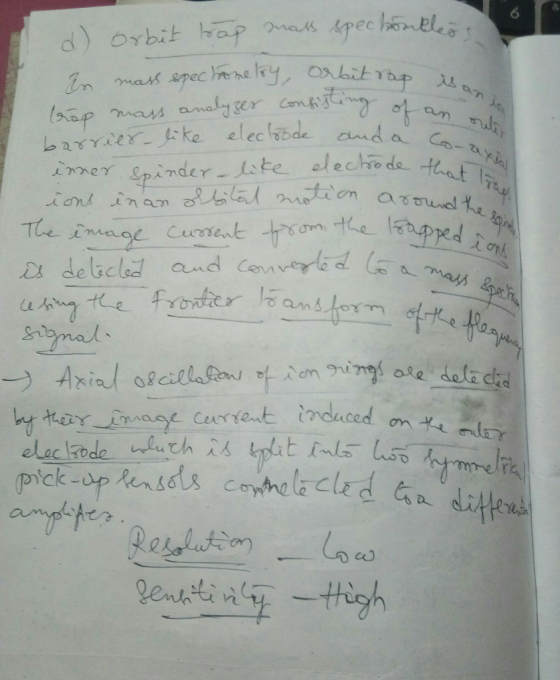

Answer 1
