Aniline (1,021.7 kg/m3) flows into a 12.4 cm diameter, inlet pipe (a.k.a Zone 1) at a...

Aniline (1,021.7 kg/m3) flows into a 12.4 cm diameter, inlet pipe (a.k.a Zone 1) at a pressure of 1.971E5 Pa. The liquid then flows through a 6.3 cm diameter pipe at a pressure of 760.5 torr situated 1.4 m above the inlet pipe, a.k.a Zone 2.

a) Calculate the flow speed of the Aniline in Zone 2.

b) Calculate the volume flow rate of the Aniline in either Zone.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

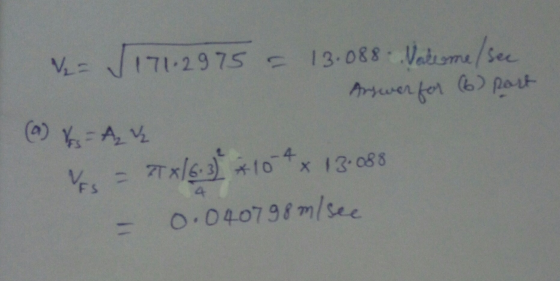

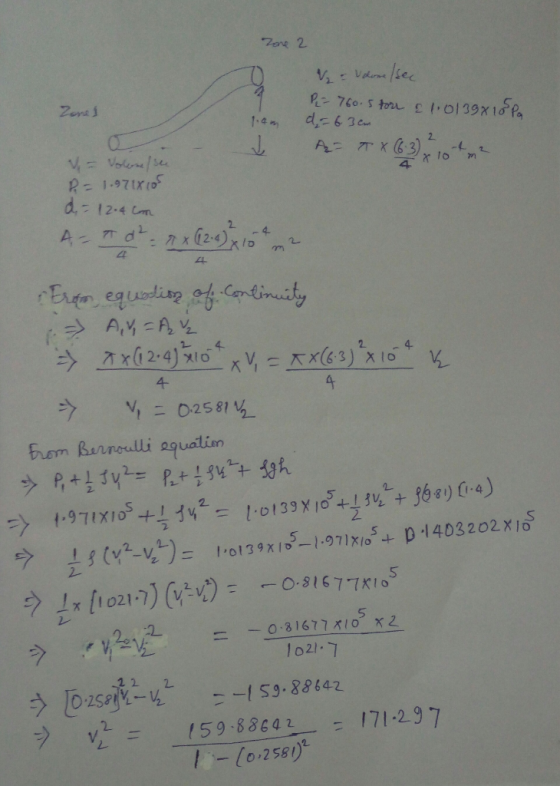

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Aniline (1,021.7 kg/m3) flows into a 12.4 cm diameter, inlet pipe (a.k.a Zone 1) at a...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A liquid of density 1.33 x103 kg/m3 flows steadily through a pipe of varying diameter and...

    A liquid of density 1.33 x103 kg/m3 flows steadily through a pipe of varying diameter and height. At location 1 along the pipe the flow speed is 9.01 m/s and the pipe diameter 12.3 cm is 12.3 cm. At location 2 the pipe diameter is 17.5 cm. At location 1 the pipe is 8.09 m higher than it is at location 2. Ignoring viscosity, calculate the difference between the fluid pressure at location 2 and the fluid pressure at location...

  • A liquid of density 1.39 × 103 kg/m3 flows steadily through a pipe of varying diameter...

    A liquid of density 1.39 × 103 kg/m3 flows steadily through a pipe of varying diameter and height. At location 1 along the pipe the flow speed is 9.67 m/s and the pipe diameter is 11.5 cm. At location 2 the pipe diameter is 14.9 cm. At location 1 the pipe is 8.31 m higher than it is at location 2. Ignoring viscosity, calculate the difference between the fluid pressure at location 2 and the fluid pressure at location 1.

  • A liquid of density 1.11 × 103 kg/m3 flows steadily through a pipe of varying diameter...

    A liquid of density 1.11 × 103 kg/m3 flows steadily through a pipe of varying diameter and height. At location 1 along the pipe the flow speed is 9.09 m/s and the pipe diameter is 10.9 cm. At location 2 the pipe diameter is 14.1 cm. At location 1 the pipe is 8.03 m higher than it is at location 2. Ignoring viscosity, calculate the difference between the fluid pressure at location 2 and the fluid pressure at location 1.

  • A liquid of density 1.33 × 103 kg/m3 flows steadily through a pipe of varying diameter...

    A liquid of density 1.33 × 103 kg/m3 flows steadily through a pipe of varying diameter and height. At location 1 along the pipe the flow speed is 9.07 m/s and the pipe diameter is 12.7 cm. At location 2 the pipe diameter is 14.3 cm. At location 1 the pipe is 8.07 m higher than it is at location 2. Ignoring viscosity, calculate the difference between the fluid pressure at location 2 and the fluid pressure at location 1.

  • A liquid of density 1230 kg/m3 flows steadily through a pipe of varying diameter and height....

    A liquid of density 1230 kg/m3 flows steadily through a pipe of varying diameter and height. At Location 1 along the pipe, the flow speed is 9.31 m/s and the pipe diameter d1 is 12.9 cm . At Location 2, the pipe diameter d2 is 17.7 cm . At Location 1, the pipe is Δ y = 8.09 m higher than it is at Location 2. Ignoring viscosity, calculate the difference Δ P between the fluid pressure at Location 2...

  • A liquid of density 1390 kg/m3 flows steadily through a pipe of varying diameter and height....

    A liquid of density 1390 kg/m3 flows steadily through a pipe of varying diameter and height. At Location 1 along the pipe, the flow speed is 9.45 m/s and the pipe diameter d1 is 10.3 cm. At Location 2, the pipe diameter d2 is 14.9 cm. At Location 1, the pipe is Δy=9.91 m higher than it is at Location 2. Ignoring viscosity, calculate the difference ΔP between the fluid pressure at Location 2 and the fluid pressure at Location...

  • A liquid of density 1270 kg/m3 flows steadily through a pipe of varying diameter and height....

    A liquid of density 1270 kg/m3 flows steadily through a pipe of varying diameter and height. At Location 1 along the pipe, the flow speed is 9.03 m/s and the pipe diameter d1 is 12.3 cm. At Location 2, the pipe diameter d2 is 14.3 cm. At Location 1, the pipe is Δy=9.09 m higher than it is at Location 2. Ignoring viscosity, calculate the difference ΔP between the fluid pressure at Location 2 and the fluid pressure at Location...

  • A liquid of density 1.21 x103 kg/m3 flows steadily through a pipe of varying diameter and...

    A liquid of density 1.21 x103 kg/m3 flows steadily through a pipe of varying diameter and height. At location 1 along the pipe the flow speed is 9.97 m/s and the pipe diameter is 10.5 cm. At location 2 the pipe diameter is 16.5 cm. At location 1 the pipe is 8.59 nm higher than it is at location 2. Ignoring viscosity, calculate the difference between the fluid pressure at location 2 and the fluid pressure at location 1 10.5...

  • A liquid of density 1.29 Ý 103 kg/m3 flows steadily through a pipe of varying diameter...

    A liquid of density 1.29 Ý 103 kg/m3 flows steadily through a pipe of varying diameter and height. At location 1 along the pipe the flow speed is 9.07 m/s and the pipe diameter is 11.1 cm. At location 2 the pipe diameter is 15.7 cm. At location 1 the pipe is 9.11 m higher than it is at location 2. Ignoring viscosity, calculate the difference between the fluid pressure at location 2 and the fluid pressure at location 1.

  • A brine solution with a density of 1230 kg/m3 moves through a constricted pipe in steady,...

    A brine solution with a density of 1230 kg/m3 moves through a constricted pipe in steady, ideal flow. At the lower point shown in the figure below, the pressure is P1 = 1.95 × 104 Pa, and the pipe diameter is 5.00 cm. At another point y = 0.35 m higher, the pressure is P2 1.00 104 Pa and the pipe diameter is 2.50 cm. P2 (a) Find the speed of flow (in m/s) in the lower section m/s (b)...
