Sketch the shape of the 4dz^2 atomic orbital. On the sketch indicate the any external nodes...

Question

Question

Sketch the shape of the 4dz^2 atomic orbital. On the sketch indicate the any external nodes that are present

science chemistry

Answer 1

Answer #1

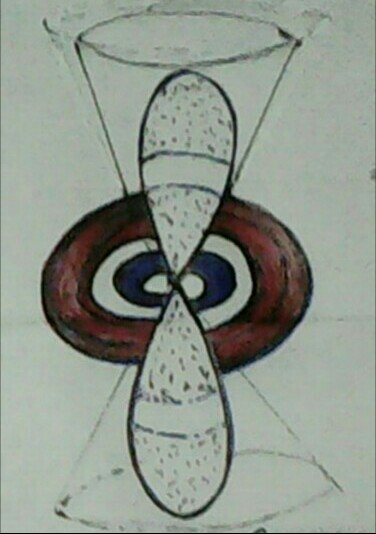

Answer:- The shape of 4dz² orbital is dumb- bell , symmetric to z- axis. A 4z² orbital has 2 angular nodes and one radial ( spherical) node.

Note:- two cones in figure represent two angular nodes.

Answer 2

Similar Homework Help Questions

n-1= 5-1=4 5s orbital Total nodes: 14 Angular nodes: 0 Rad Draw shape of 5s orbital...

n-1= 5-1=4 5s orbital Total nodes: 14 Angular nodes: 0 Rad Draw shape of 5s orbital including all nodes: Draw radial distrit Redial probability -L=2 n=4 T7 4-1=3 4d orbital Total nodes: 3 Angular nodes: 2 Draw shape of 4d orbital including all nodes: Draw radi Redial probability
Form Quantum Numbers to Atomic Orbitals for each set of quantum numbers sketch qualitative pictures of...

Form Quantum Numbers to Atomic Orbitals for each set of quantum numbers sketch qualitative pictures of all possible atomic Orbitals (do not draw radial nodes). Label each sketch with the orbital name (eg. 2p_x) and include a cartesian coordinate system to indicate orientation. (eg.) n = 1, l = 0 n = 2 n = 3, l = 2
Draw a sketch of the hybrid orbital/atomic orbitals for the molecules below, including orbitals used for...

Draw a sketch of the hybrid orbital/atomic orbitals for the molecules below, including orbitals used for bonds, lone pairs, and empty orbitals. Dont forget to include the phase of the orbitalsusing shading. Label each hybrid or atomic orbital. Also draw the MO diagram indicate the HOMO and LUMO. a. CH3CH2+ b. CO

1 a)The picture below best represents which atomic orbital? Note: There are no radial nodes in...

1 a)The picture below best represents which atomic orbital? Note: There are no radial nodes in this orbital. Select one: 1s 2s 3s 2p 3p 3d. ( here is circle cant draw it) b) If the n quantum number of an atomic orbital is 1, what are the possible values of l? Select all that apply. Penalties are applied for incorrect guesses. Select one or more: -3 -2 -1 0 1 2 3
draw a picture that shows the shape ans location of nodes in a 2s orbital. right...

draw a picture that shows the shape ans location of nodes in a 2s orbital. right next to your first drawing, draw a picture that shows the shape and location of nodes in one of the 3p orbitals. be sure your two drawings are roughly proportional in size to one another.
The picture below best represents which atomic orbital? Note: There are no radial nodes. Select one:...

The picture below best represents which atomic orbital? Note: There are no radial nodes. Select one: 1s O O OOO • Check

Consider the diatomic molecule NF. (a) Draw the shape of the 2 pz orbital on N....

Consider the diatomic molecule NF. (a) Draw the shape of the 2 pz orbital on N. How many nodes does this orbital have? Show the nodes in your diagram. (b) Construct a molecular orbital energy diagram for NF. For this drawing consider both the s and p valence orbitals on each atom, but do not include orbital mixing. Show how the electrons are placed in the MO's. (c) How would orbital mixing alter the MO energy diagram you just constructed?...
#8 Sketch a qualitative atomic orbital energy-level diagram for all of the electron and orbitals of...

#8 Sketch a qualitative atomic orbital energy-level diagram for all of the electron and orbitals of Fe and Fe^2+. Label all of the orbitals. Draw structures and calculate the formal charge on the nitrogen atom in NH_3, N_2H_4, and NH^-1_2.
Draw a lobe representation of a 3p atomic orbital. On your sketch mark each node as...

Draw a lobe representation of a 3p atomic orbital. On your sketch mark each node as either a planar or spherical node and show the signs of the wavefunction, ψ.

Question 6 of 25 > Two types of nodes occur in atomic orbitals: spherical (radial) surfaces...

Question 6 of 25 > Two types of nodes occur in atomic orbitals: spherical (radial) surfaces and planes (angles). Examine the 2s 2p, and 3p orbitals, and then characterize their nodes. outer ball of electron density (wave trough) nucleus inner ball of electron density (wave peak) The 2s orbital has The 2p orbital has T auhital han Which of the statements are true? Check Answ Question 6 of 25 > The 3p orbital has Which of the statements are true?...
